High precision Operational Amplifier,SGM8584 Replace OPA4234.
SGM8584
SGM8584.pdf
SGM8584.pdfFEATURES
• Low Offset Voltage: 25µV (TYP)
• Rail-to-Rail Input and Output Swing
• 2.5V to 5.5V Single Supply Operation
• Voltage Gain: 135dB (TYP) at +5V
• PSRR: 115dB (TYP)
• CMRR: 92dB (TYP)
• Low Input Bias Current: 60pA
• Low Supply Current: 430µA/Channel
• Overload Recovery Time: 30µs (at VS = +5V)
• No External Capacitors Required
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-14 and TSSOP-14 Packages

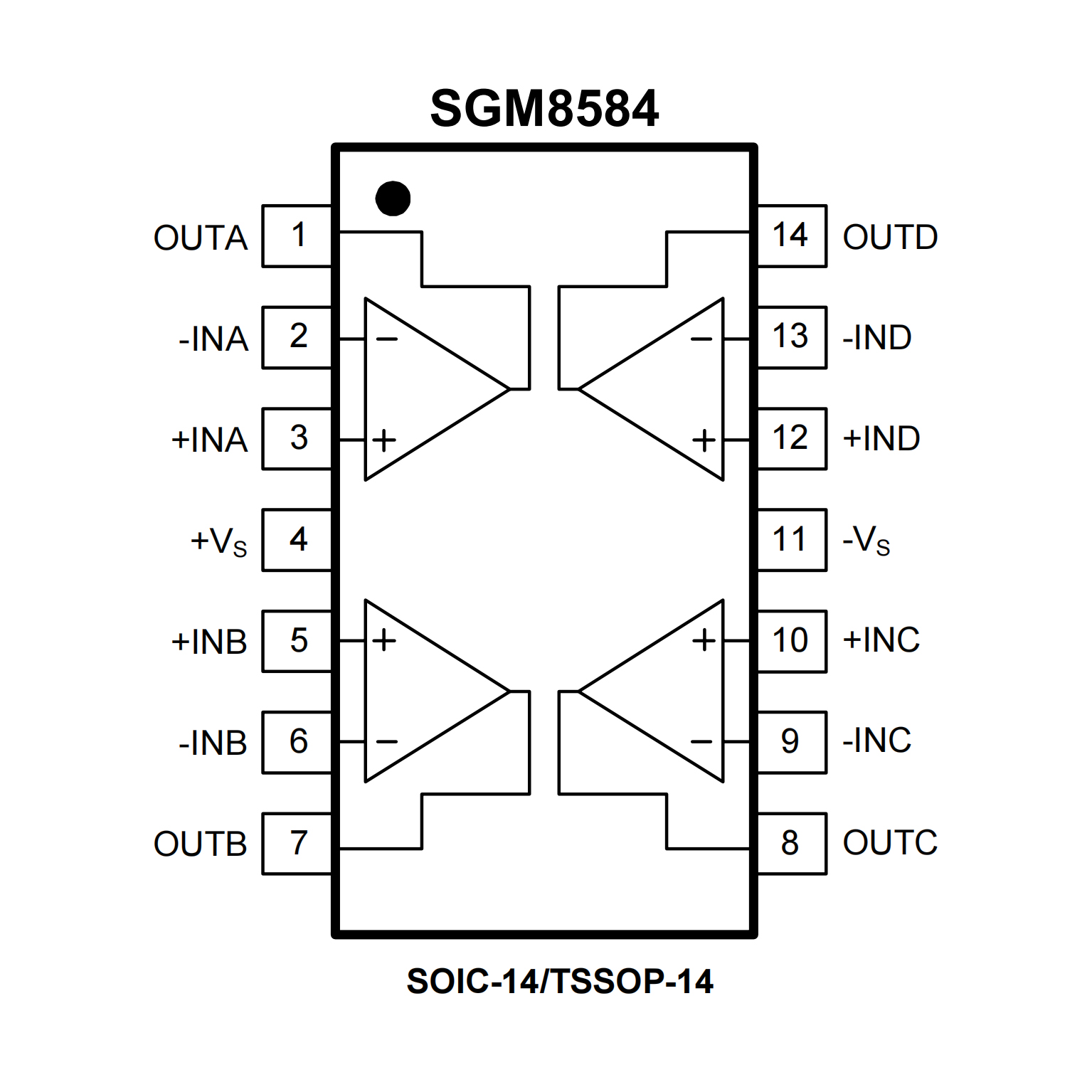

PIN CONFIGUTION
优势替代
FEATURES
• WIDE SUPPLY RANGE:
Single Supply: VS = +2.7V to +36V
Dual Supply: VS = ±1.35V to ±18V
• SPECIFIED PERFORMANCE:
+2.7V, +5V, and ±15V
• LOW QUIESCENT CURRENT: 250µA/amp
• LOW INPUT BIAS CURRENT: 25nA max
• LOW OFFSET VOLTAGE: 100µV max
• HIGH CMRR, PSRR, and AOL
• SINGLE, DUAL, and QUAD VERSIONS

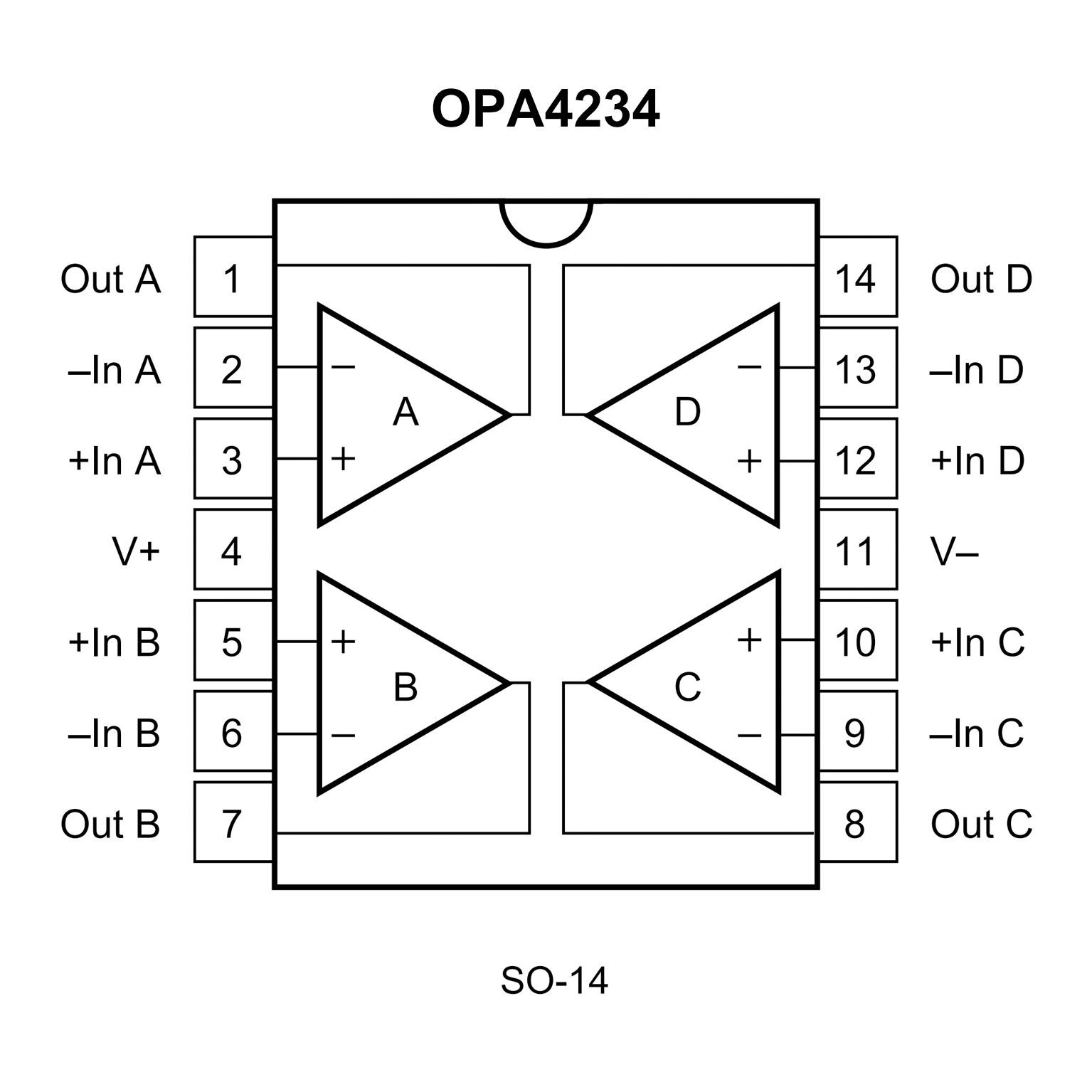

PIN CONFIGUTION
