• Output Drive Capability: 235mA

• Low Input Offset Voltage: 10μV (MAX)

• Low Input Offset Voltage Drift: 20nV/℃ (TYP)

• Low Noise: 28nV/√Hz at 1kHz

• Gain-Bandwidth Product: 15MHz

• High Slew Rate: 7V/μs

• High Open-Loop Gain (RL = 2kΩ): 145dB

• Power Supply Rejection Ratio: 120dB

• Over-Temperature Protection

• No Phase Reversal for Overdriven Inputs

• Rail-to-Rail Input and Output

• Supply Voltage Range: 2.7V to 5.5V

• Quiescent Current: 2.3mA (TYP)

• -40℃ to +125℃ Operating Temperature Range

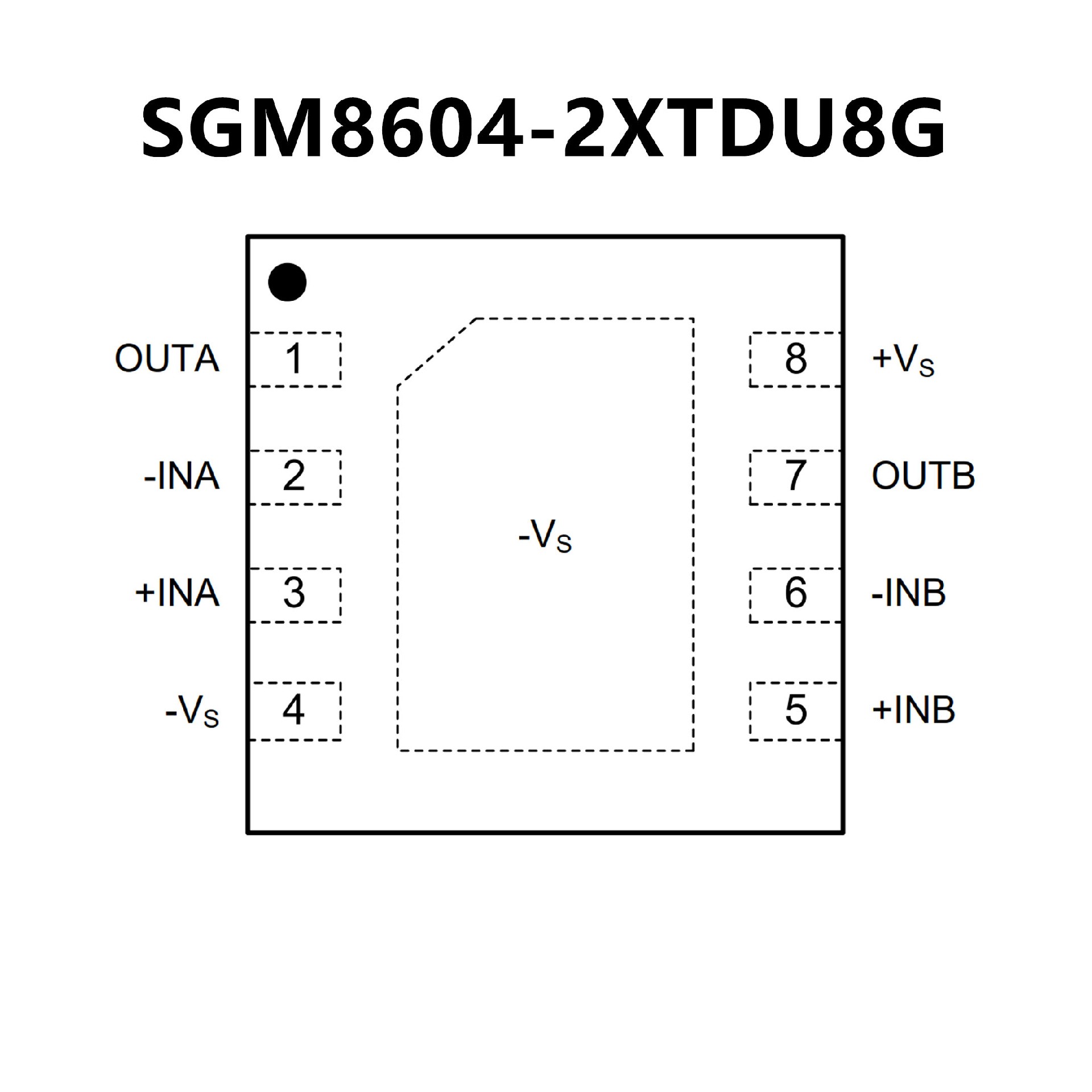

• Available in a Green TDFN-3×3-8AL Package
