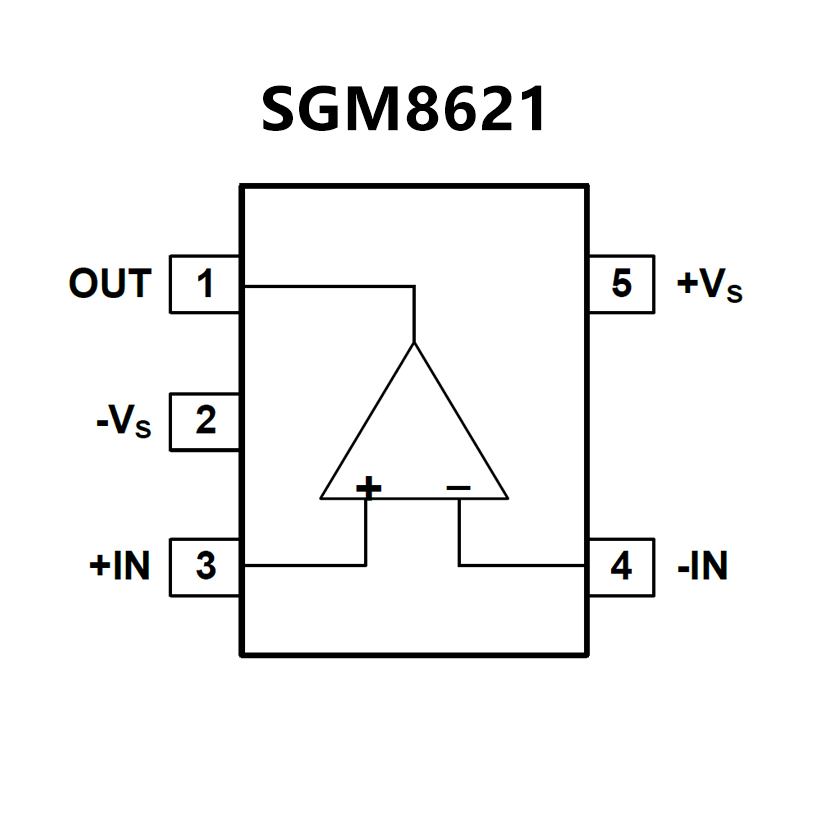

SGM8621XN5.pdf• Rail-to-Rail Input and Output
• Input Offset Voltage: 3mV (MAX)
• High Gain-Bandwidth Product: 3MHz
• High Slew Rate: 1.7V/μs
• Settling Time to 0.1% with 2V Step: 0.5μs
• Overload Recovery Time: 2.3μs
• Low Noise: 17.5nV/ Hz at 1kHz
• Supply Voltage Range: 2V to 5.5V
• Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
• Low Supply Current:
SGM8621/3: 270μA (TYP)
SGM8622/4: 210μA/Amplifier (TYP)
Less than 1μA Shutdown Current for SGM8623
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging:
SGM8621 Available in Green SC70-5, SOT-23-5
and SOIC-8
SGM8622 Available in Green MSOP-8 and SOIC-8
SGM8623 Available in Green SOT-23-6 and SOIC-8
SGM8624 Available in Green TSSOP-14 and SOIC-14

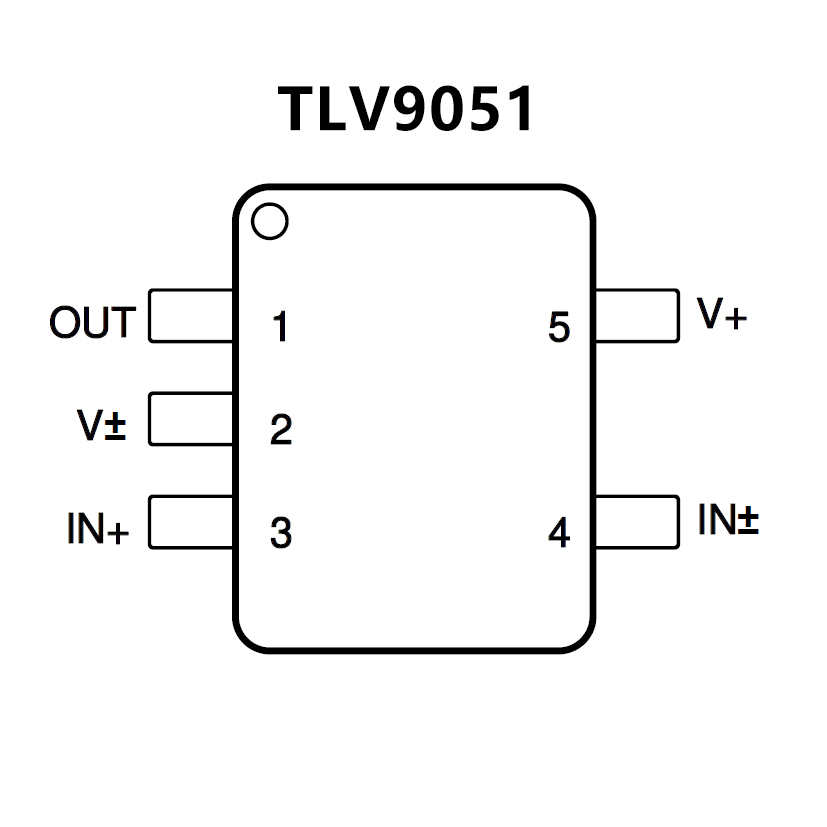

• High slew rate: 15 V/μs
• Low quiescent current: 330 μA
• Rail-to-rail input and output
• Low input offset voltage: ±0.33 mV
• Unity-gain bandwidth: 5 MHz
• Low broadband noise: 15 nV/√Hz
• Low input bias current: 2 pA
• Unity-gain stable
• Internal RFI and EMI filter
• Scalable family of CMOS op amps for low-cost
applications
• Operational at supply voltages as low as 1.8 V
• Extended temperature range: –40°C to 125°C
