Dual-Channel, Low-Power, High-Accuracy Voltage Detector, SGM862B Replace TPS3780.
SGM862B
SGM862B.pdf
SGM862B.pdfFEATURES
• Supply Voltage Range: 1.65V to 6.5V
• High-Accuracy Threshold and Hysterisis:
1.5% at VDD = 1.65V to 3.3V
1.7% at VDD = 1.65V to 6.5V
• Low Quiescent Current: 1.1µA (TYP)
• Four Hysteresis Options: 0.6%, 1%, 5% and 10%
• Open-Drain Output
• Available in Green UTDFN-1.45×1-6AL and
SOT-23-6 Packages

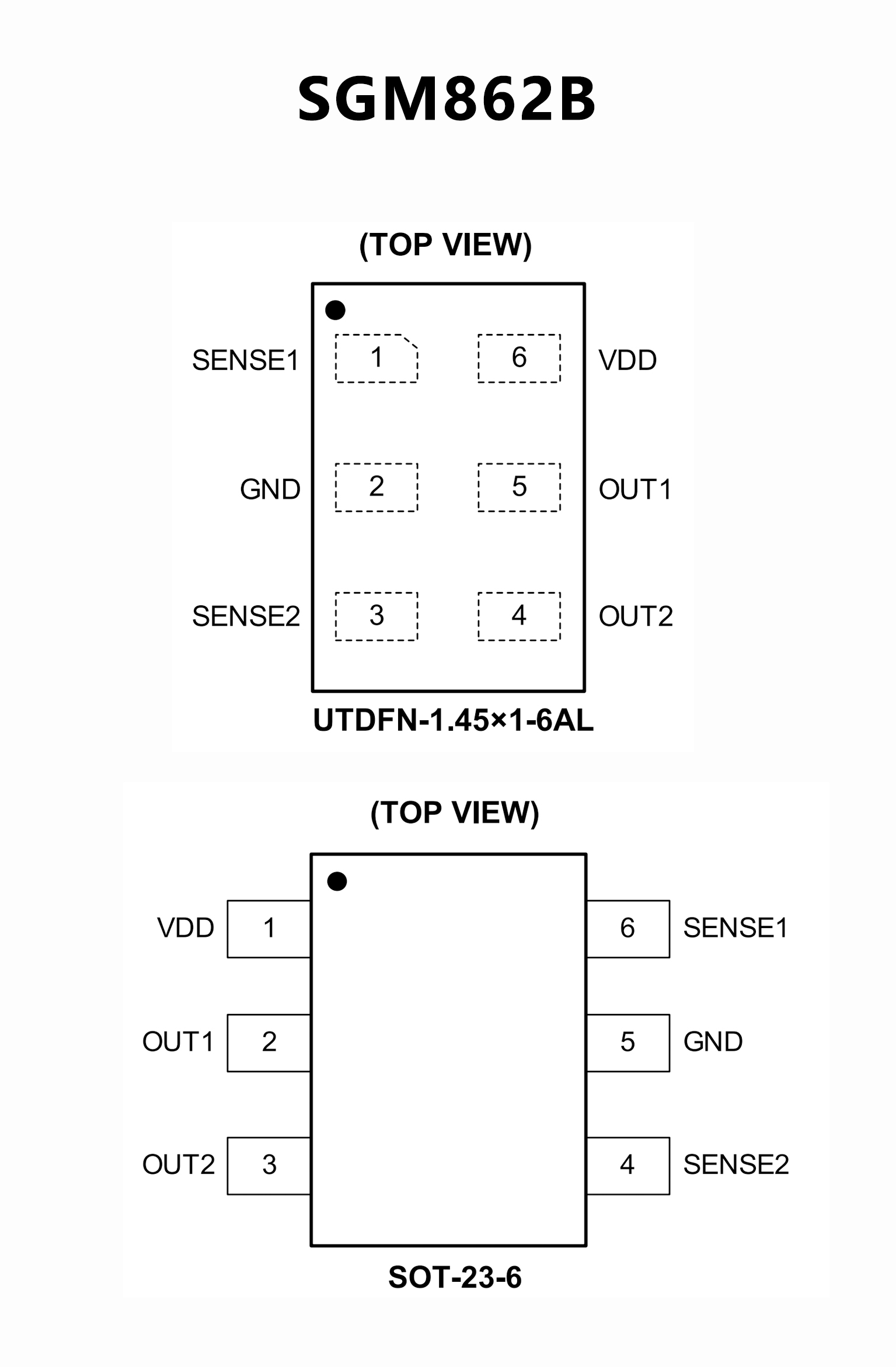

PIN CONFIGUTION
优势替代
FEATURES
• Two-Channel Detectors in Small Packages
• High-Accuracy Threshold and Hysteresis: 1.0%
• Low Quiescent Current: 2 µA (typ)
• Adjustable Detection Voltage Down to 1.2 V
• Multiple Hysteresis Options:
– 0.5%, 1%, 5%, and 10%
• Temperature Range: –40°C to 125°C
• Push-Pull (TPS3779) and Open-Drain (TPS3780)
Output Options
• Available in µSON and SOT23 Packages
PIN CONFIGUTION
