Micro-Power, CMOS Input, RRIO, 1.4V,Push-Pull Output Comparator,SGM8701YN5G Replace TLV7031.
SGM8701
SGM8701.pdf
SGM8701.pdfFEATURES
• Ultra Low Power Consumption:
300nA (TYP) at VS = 1.4V
• Wide Supply Voltage Range: 1.4V to 5.5V
• Propagation Delay: 6μs (TYP) at VS = 1.4V
• Push-Pull Output Current Drive:
19mA (TYP) at VS = 5V
• Rail-to-Rail Input
• -40℃ to +85℃ Operating Temperature Range
• Available in Green SOT-23-5 and SC70-5 Packages

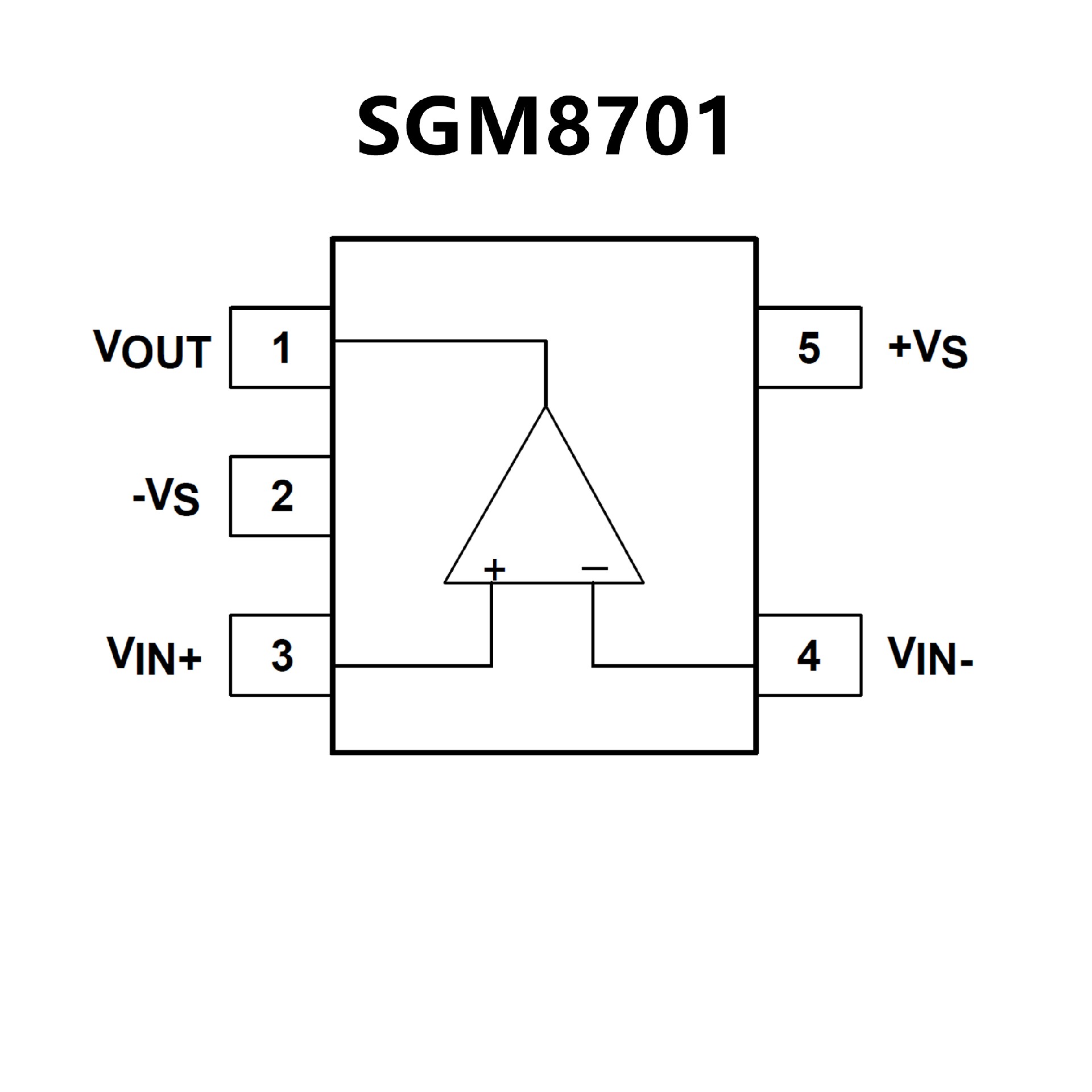

PIN CONFIGUTION
优势替代
FEATURES
• Ultra-small X2SON, WSON, WQFN packages
• Tiny SOT-23, SC70, VSSOP, and TSSOP
packages
• Wide supply voltage range of 1.6 V to 6.5 V
• Quiescent supply current of 315 nA
• Low propagation delay of 3 μs
• Rail-to-rail common-mode input voltage
• Internal hysteresis
• Push-pull output (TLV703x)
• Open-drain output (TLV704x)
• No phase reversal for overdriven inputs
• –40°C to 125°C Operating temperature

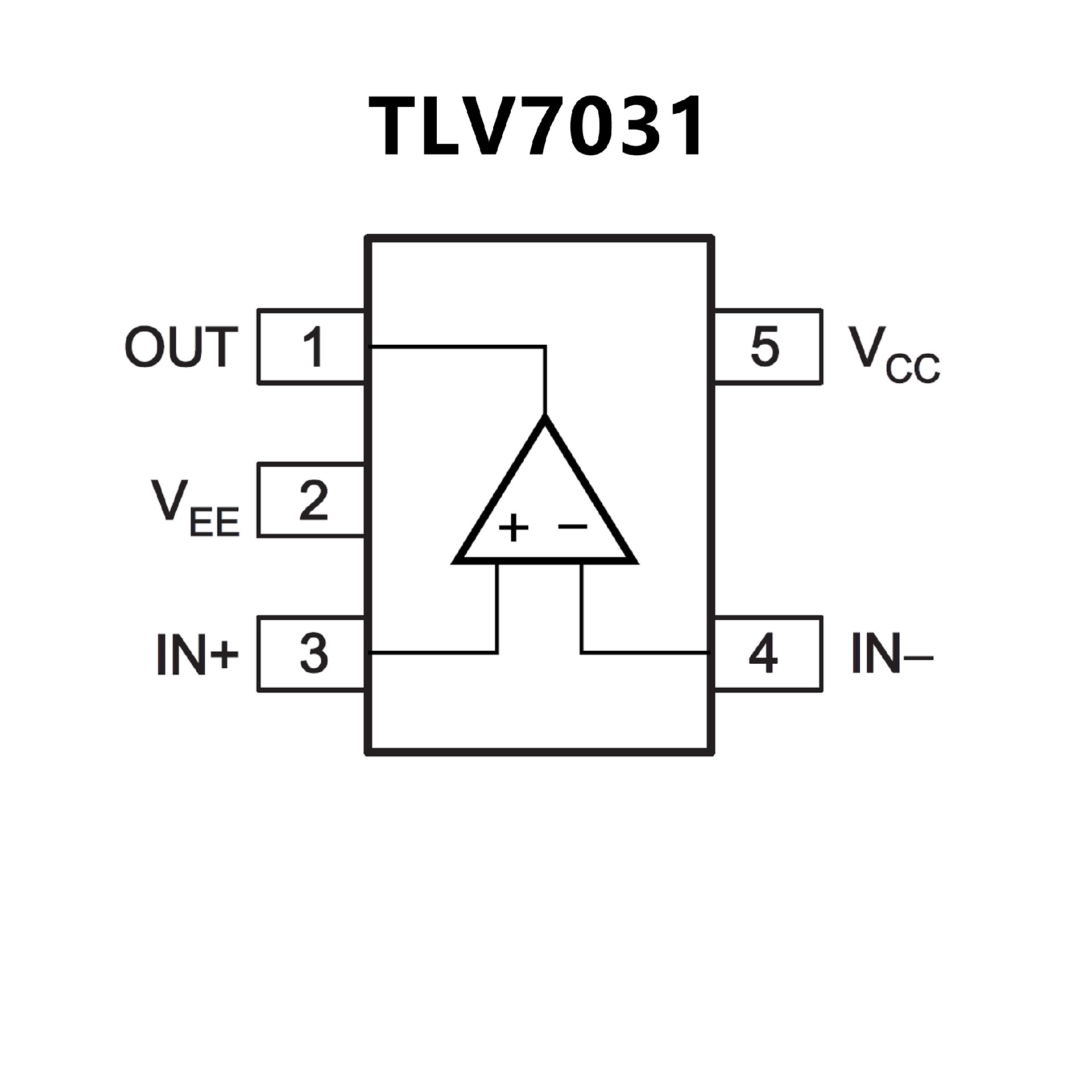

PIN CONFIGUTION
