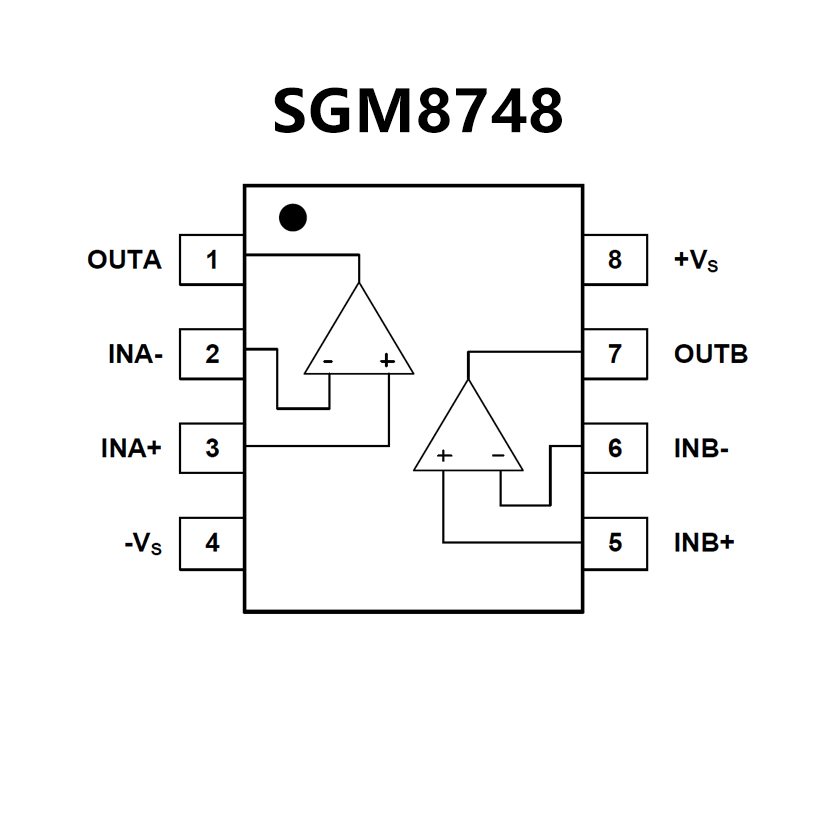

SGM8748YMS8G.pdf• Fast, 155ns Propagation Delay (10mV Overdrive)
• Low Power Consumption:
45μA (TYP) at VS = 3V
• Wide Supply Voltage Range: 2.7V to 5.5V
• Optimized for 3V and 5V Applications
• Rail-to-Rail Input Voltage Range
• Low Offset Voltage: 0.8mV (TYP)
• Internal Hysteresis for Clean Switching
• Output Swing to within 190mV from Rails with
4mA Output Current
• CMOS/TTL-Compatible Outputs
• -40℃ to +85℃ Operating Temperature Range
• Available in Green SOIC-8 and MSOP-8 Packages

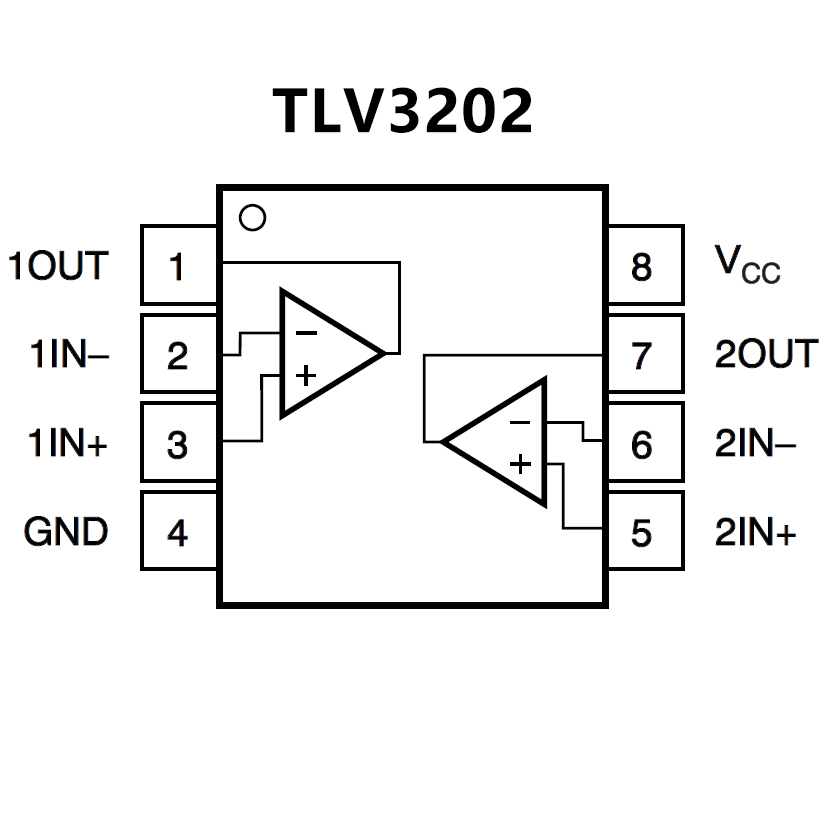

• Low Propagation Delay: 40 ns
• Low Quiescent Current:
40 μA per Channel
• Input Common-Mode Range Extends 200 mV
Beyond Either Rail
• Low Input Offset Voltage: 1 mV
• Push-Pull Outputs
• Supply Range: 2.7 V to 5.5 V
• Industrial Temperature Range:
–40°C to 125°C
• Small Packages:
5-Pin SC70, 5-Pin SOT-23, 8-Pin SOIC, 8-Pin
VSSOP
