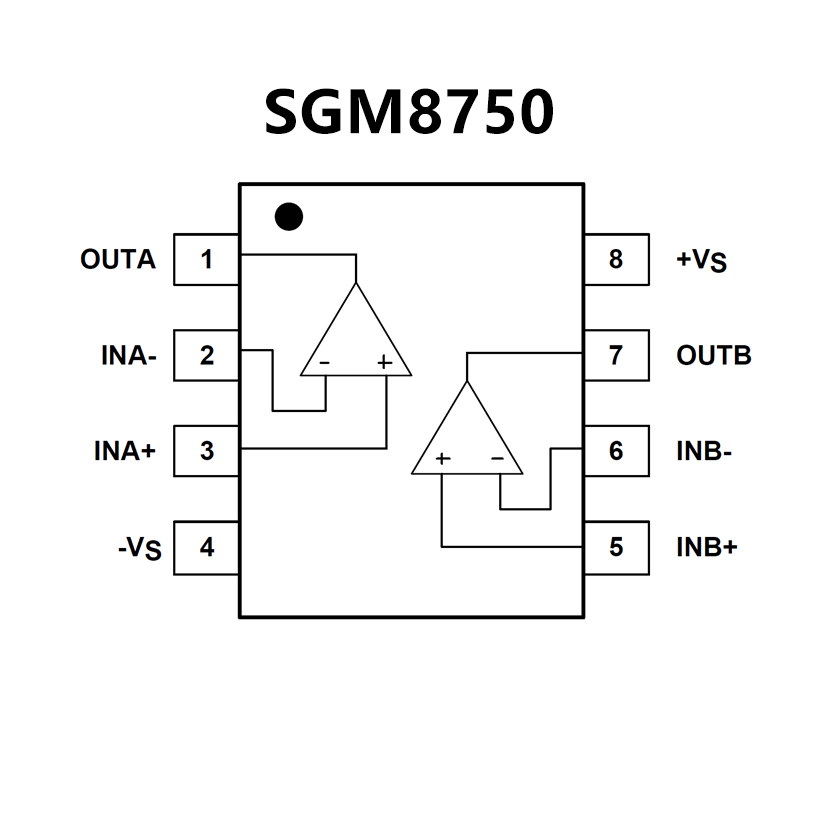

SGM8750YMS8G.pdf• Fast, 150ns Propagation Delay (10mV Overdrive)
• Low Power Consumption:
22μA/Channel (TYP) at VS = 3V
• Wide Supply Voltage Range: 2.7V to 5.5V
• Optimized for 3V and 5V Applications
• Open Drain Output
• Rail-to-Rail Input Voltage Range
• Low Offset Voltage: 0.8mV (TYP)
• Output Swing 185mV with 4mA Output Current
• CMOS/TTL-Compatible Output
• -40℃ to +85℃ Operating Temperature Range
• Available in Green SOIC-8 and MSOP-8 Packages
• Supply Range:
+2.2 V to +36 V or ±1.1 V to ±18 V
• Low Quiescent Current:
55 µA per Comparator
• Input Common-Mode Range Includes Both Rails
• Low Propagation Delay: 560 ns
• Low Input Offset Voltage: 300 µV
• Open Collector Outputs:
Up to 36 V Above Negative Supply
Regardless of Supply Voltage
• Industrial Temperature Range:
–40°C to +125°C
• Small Packages:
Single: SC70-5, SOT-23-5, SOT553-5
Dual: VSSOP-8, X2QFN-8
Quad: TSSOP-14
