SGM8770XS8G.pdf• Single Supply or Dual Supplies
• Wide Supply Voltage Range: 2.8V to 36V
• Open-Drain Output
• Low Supply Current Independent of Supply Voltage:
310μA (TYP)
• Low Input Offset Voltage: 2.4mV (MAX)
• Low Input Bias Current: ±20pA (TYP)
• Input Common Mode Voltage Range Includes
Ground
• Differential Input Voltage Range Equal to
Maximum-Rated Supply Voltage: ±36V
• Low Output Saturation Voltage
• Output Compatible with TTL and CMOS
• -40℃ to +125℃ Operating Temperature Range

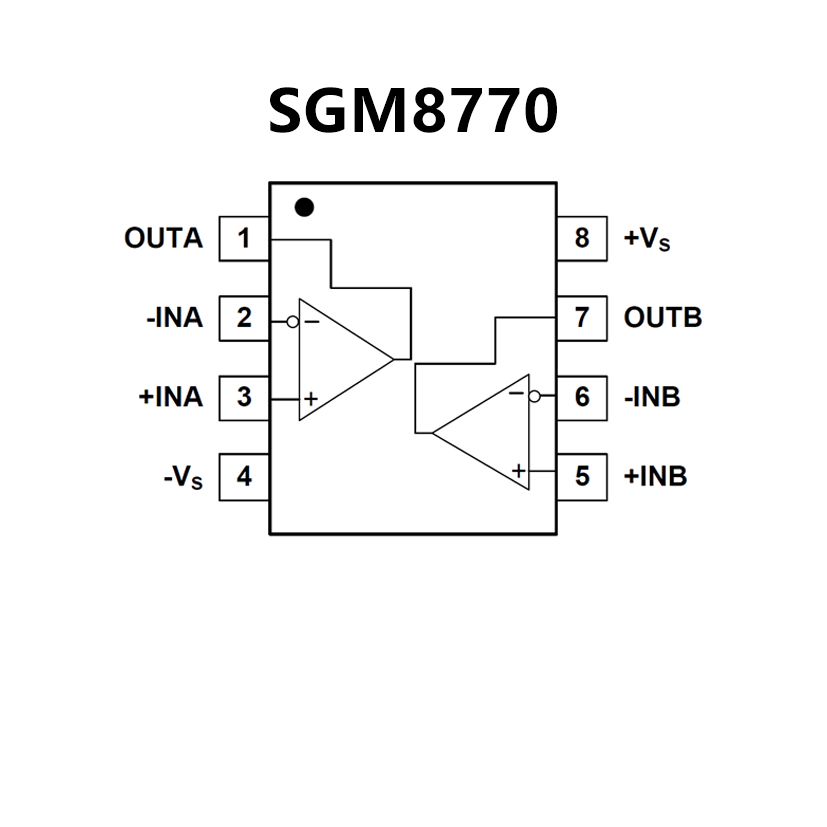

• Available in Green SOIC-8 and TDFN-3×3-8L
Packages
• Push-Pull CMOS Output Drives Capacitive
Loads Without Pullup Resistor,
IO = ± 8 mA
• Very Low Power . . . 100 μW Typ at 5 V
• Fast Response Time . . . tPLH = 2.7 μs Typ
With 5-mV Overdrive
• Single-Supply Operation . . . 3 V to 16 V
TLC3702M . . . 4 V to 16
