SGM8770XS8G.pdf• Single Supply or Dual Supplies
• Wide Supply Voltage Range: 2.8V to 36V
• Open-Drain Output
• Low Supply Current Independent of Supply Voltage:
310μA (TYP)
• Low Input Offset Voltage: 2.4mV (MAX)
• Low Input Bias Current: ±20pA (TYP)
• Input Common Mode Voltage Range Includes
Ground
• Differential Input Voltage Range Equal to
Maximum-Rated Supply Voltage: ±36V
• Low Output Saturation Voltage
• Output Compatible with TTL and CMOS
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-8 and TDFN-3×3-8L
Packages
• Low Supply Current: 470 nA Per Channel
• Input Common-Mode Range Exceeds the Rails:
0.1 V to VCC + 5 V
• Supply Voltage Range: 2.5 V to 16 V
• Reverse Battery Protection Up to 18 V
• Open-Drain CMOS Output Stage
• Specified Temperature Range:
Commercial Grade: 0°C to +70°C
Industrial Grade: –40°C to +125°C
• Ultra-Small Packaging:
5-Pin SOT-23 (TLV3401)

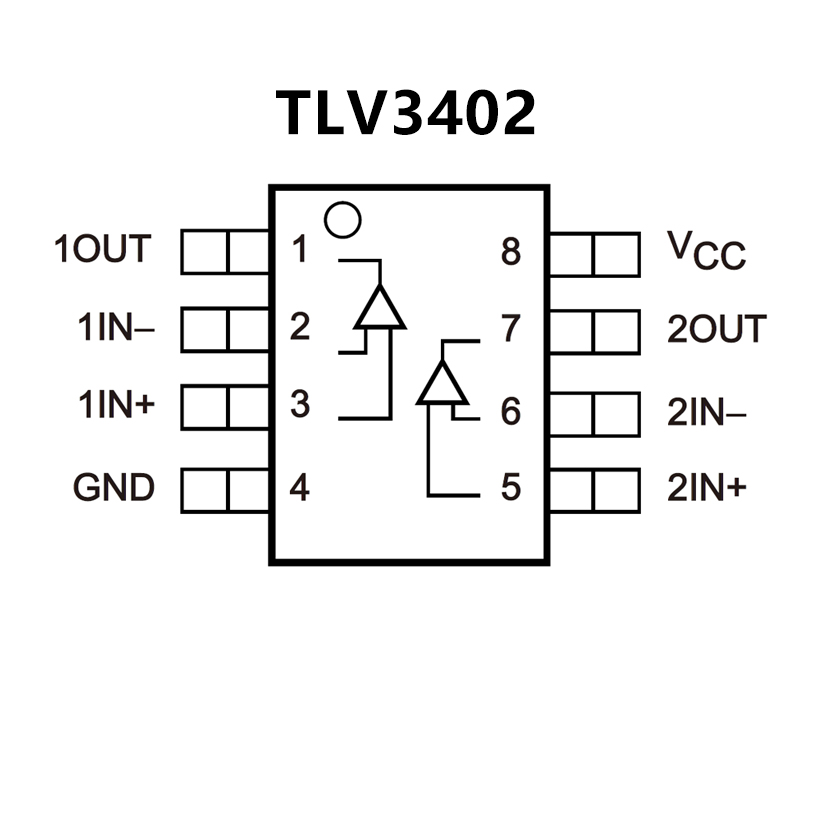

8-Pin MSOP (TLV3402)
• Universal Op Amp EVM (See Universal
Operational Amplifier Evaluation Module Selection
Guide For More Information)
