High precision Operational Amplifier ,Replace LMV822
SGM8932
SGM8932.pdf
SGM8932.pdfFEATURES
• Rail-to-Rail Output
• Low Noise: 30nV/ Hz
• Low Distortion
• Supply Voltage Range: 1.8V to 5.5V
• Low Input Offset Voltage: 0.9mV (MAX)
• Gain Bandwidth Product: 1.5MHz
• Slew Rate: 0.8V/μs
• Low Supply Current
• Small Packaging:
SGM8932 Available in MSOP-8 and SOIC-8
PIN CONFIGUTION
优势替代
FEATURES
• Available in SC-70-5 and SOT-23-5 packages
• Gain Bandwidth Product: 1 MHz (typical)
• Rail-to-Rail Input/Output
• Supply Voltage: 1.8V to 6.0V
• Supply Current: IQ = 100 µA (typical)
• Phase Margin: 90° (typical)
• Temperature Range:
Industrial: -40°C to +85°C
Extended: -40°C to +125°C
• Available in Single, Dual and Quad Packages

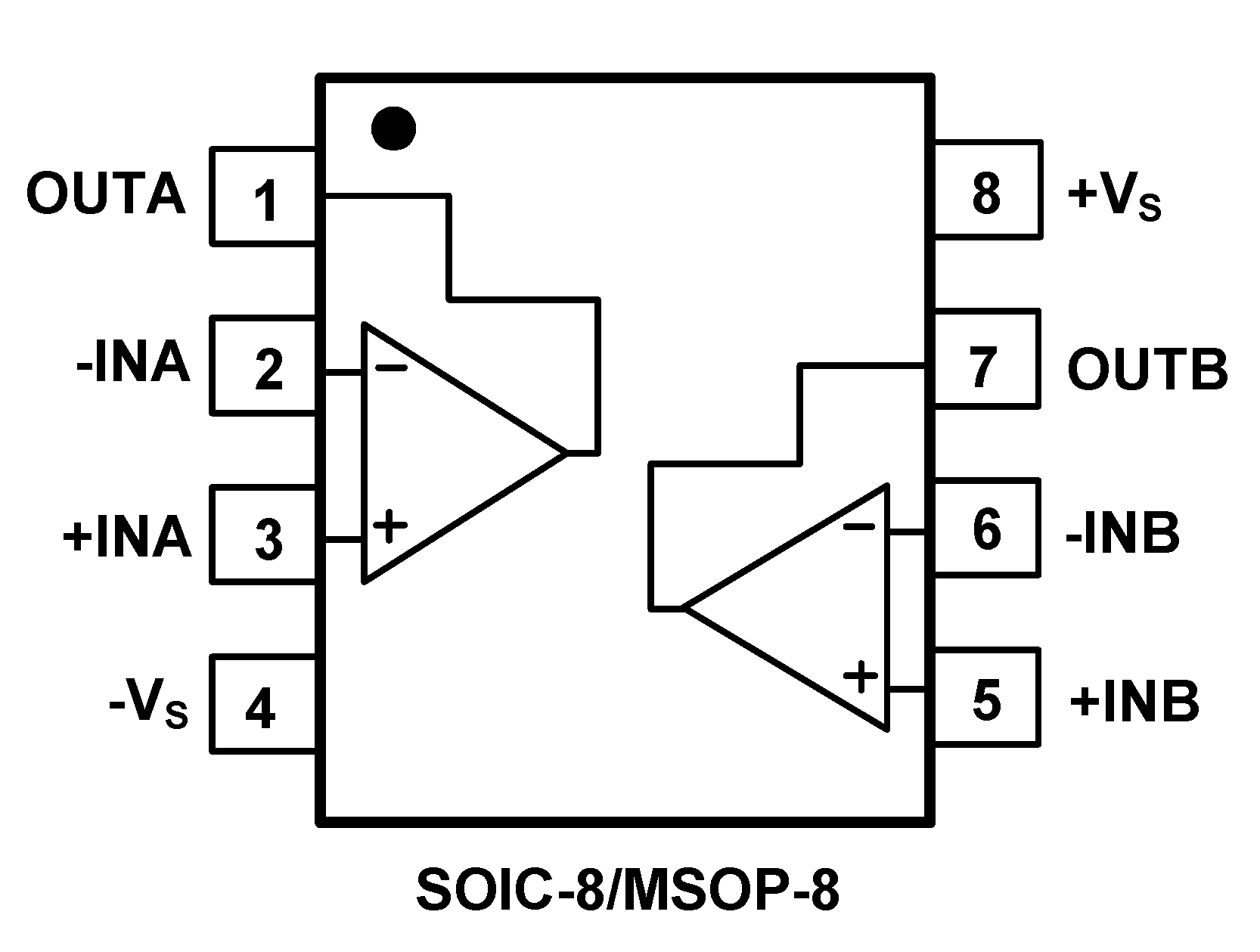

PIN CONFIGUTION
