SGM8968-4XTS14G.pdf• Rail-to-Rail Input and Output
• Input Offset Voltage: 240μV (MAX)
• High Gain-Bandwidth Product: 10MHz
• High Slew Rate: 20V/μs
• Settling Time to 0.1% with 2V Step: 280ns
• Overload Recovery Time: 100ns
• Low Noise: 8nV/Hz at 10kHz
• Supply Voltage Range: 1.8V to 5.5V
• Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
• Low Power:
Supply Current: 1.6mA/Amplifier (TYP)
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging:
SGM8968-1 Available in Green
SOT-23-5 andSOIC-8 Packages
SGM8968-2 Available in Green
SOIC-8 andMSOP-8 Packages

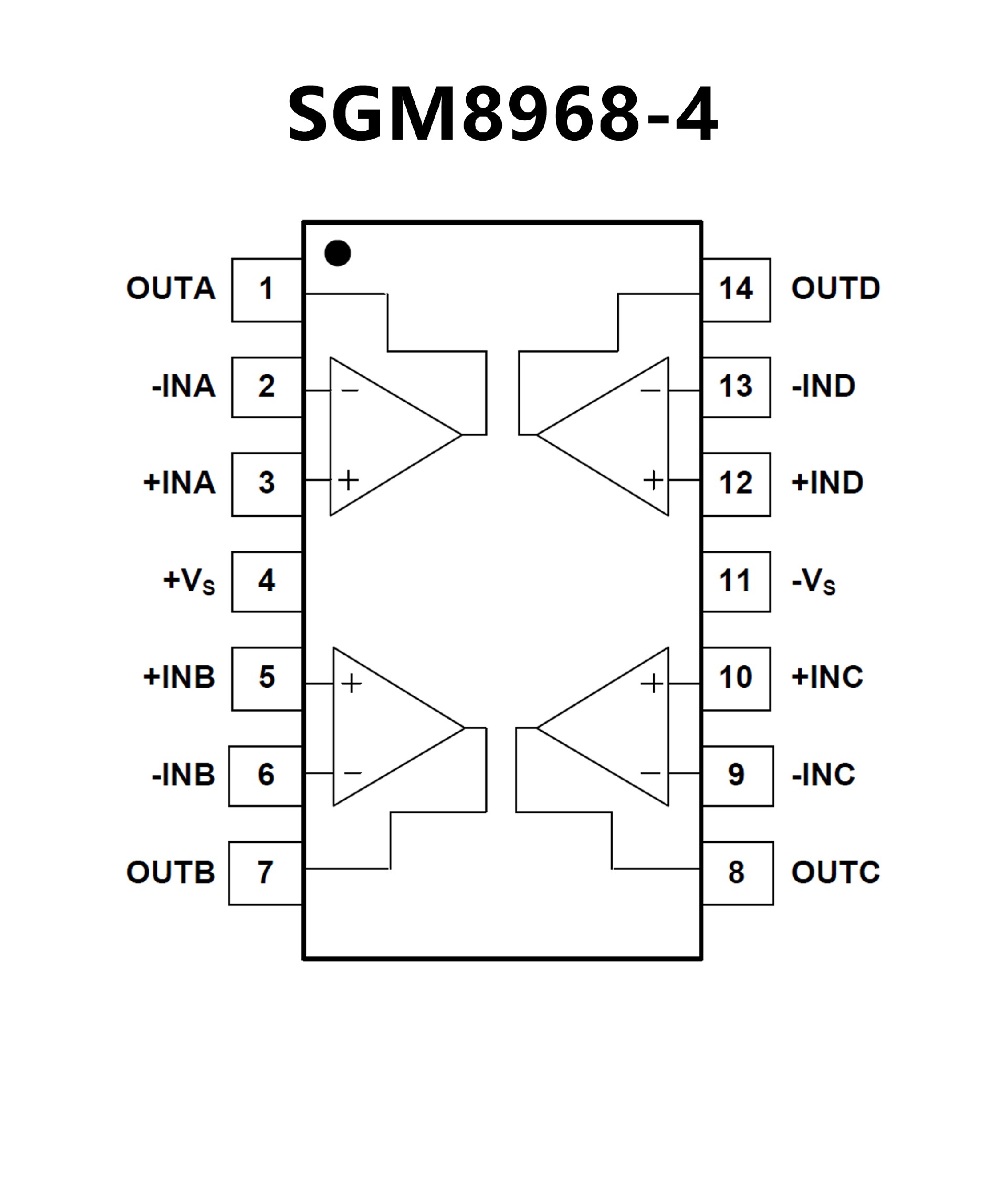

SGM8968-4 Available in Green
SOIC-14 andTSSOP-14 Packages
• Rail-to-Rail Output Swing
• Gain Bandwidth Product . . . 6.4 MHz
• ±80 mA Output Drive Capability
• Supply Current . . . 500 μA/channel
• Input Offset Voltage . . . 100 μV
• Input Noise Voltage . . . 11 nV/√Hz
• Slew Rate . . . 1.6 V/μs
• Micropower Shutdown Mode

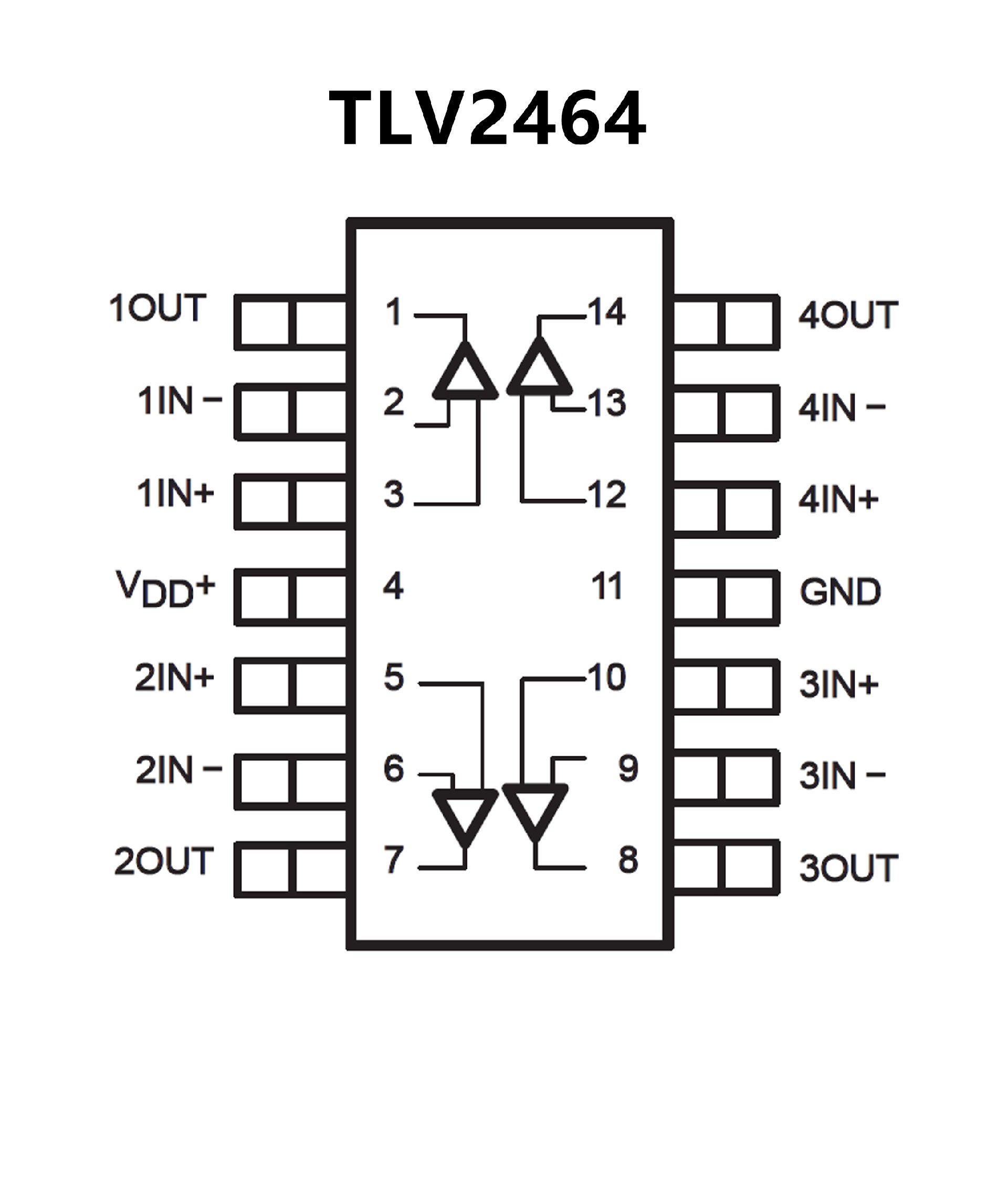

(TLV2460/3/5) . . . 0.3 μA/Channel
• Universal Operational Amplifier EVM
• Available in Q-Temp Automotive
HighRel Automotive Applications
Configuration Control/Print Support
Qualification to Automotive Standards
