1.6mA, 10MHz, High Precision, Rail-to-Rail I/O,Low Noise, CMOS Operational Amplifiers, P2P SGM8968-4.
FEATURES

• Rail-to-Rail Input and Output

• Input Offset Voltage: 240μV (MAX)

•  High Gain-Bandwidth Product: 10MHz

• High Slew Rate: 20V/μs

• Settling Time to 0.1% with 2V Step: 280ns

• Overload Recovery Time: 100ns

• Low Noise: 8nV/ Hz at 10kHz

• Supply Voltage Range: 1.8V to 5.5V

• Input Voltage Range: -0.1V to 5.6V with VS = 5.5V

• Low Power:

  Supply Current: 1.6mA/Amplifier (TYP)

• -40℃ to +125℃ Operating Temperature Range

• Small Packaging:

  SGM8968-1 Available in Green SOT-23-5 and

  SOIC-8 Packages

  SGM8968-2 Available in Green SOIC-8 and

  MSOP-8 Packages

  SGM8968-4 Available in Green SOIC-14 and

  TSSOP-14 Packages

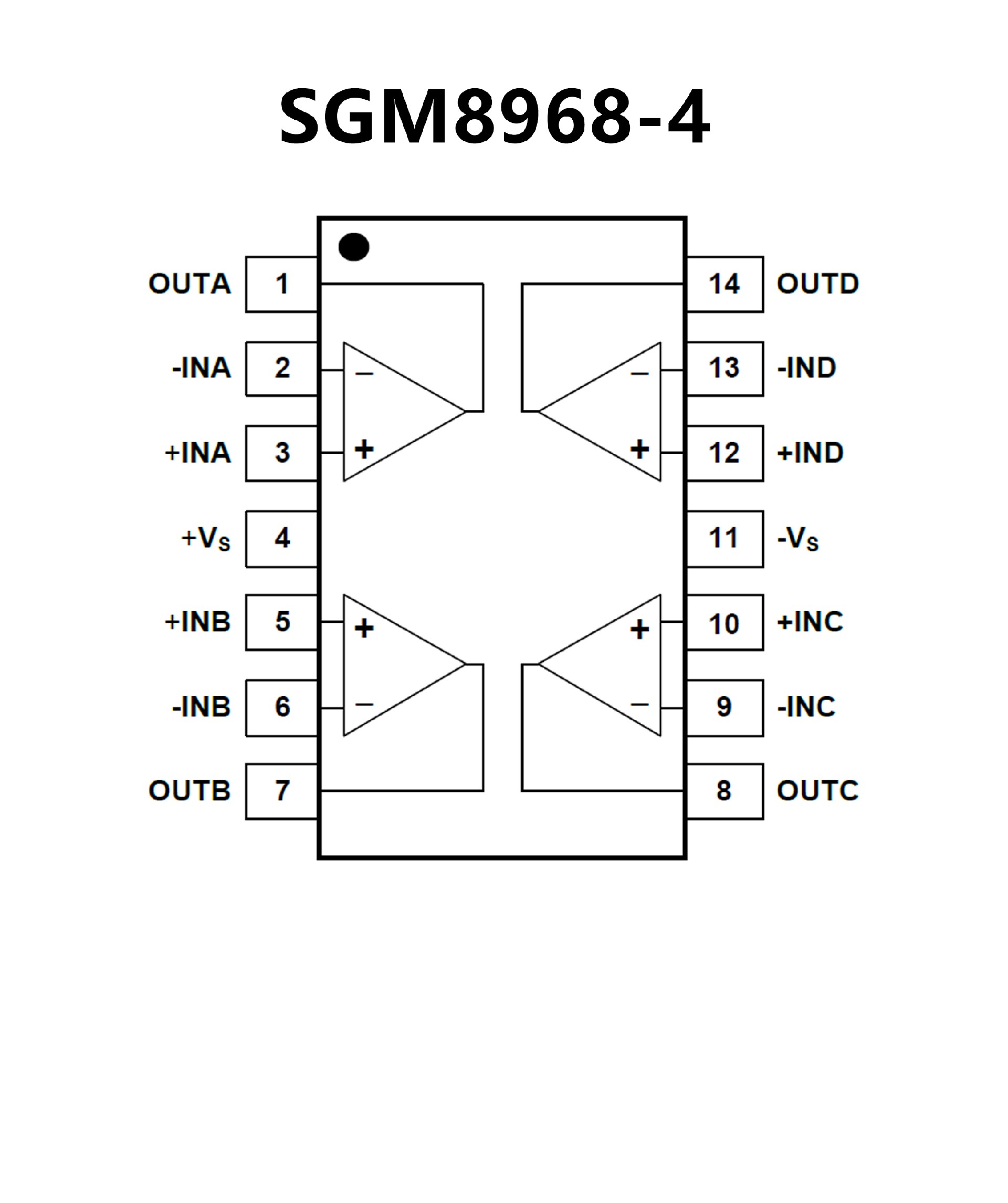

PIN CONFIGUTION
优势替代
TLV4314 TLV4314.pdf

No.12839

FEATURES

• Precision Amplifier for Cost-Sensitive Systems

• Low IQ: 65 μA/ch

• Wide Supply Range: 1.8 V to 5.5 V

• Low Noise: 26 nV/√Hz at 1 kHz

• Gain Bandwidth: 1 MHz

• Rail-to-Rail Input/Output

• Low Input Bias Current: 1 pA

• Low Offset Voltage: 0.75 mV

• Unity-Gain Stable

• Internal RF/EMI Filter

• Extended Temperature Range:

  –40°C to +125°C

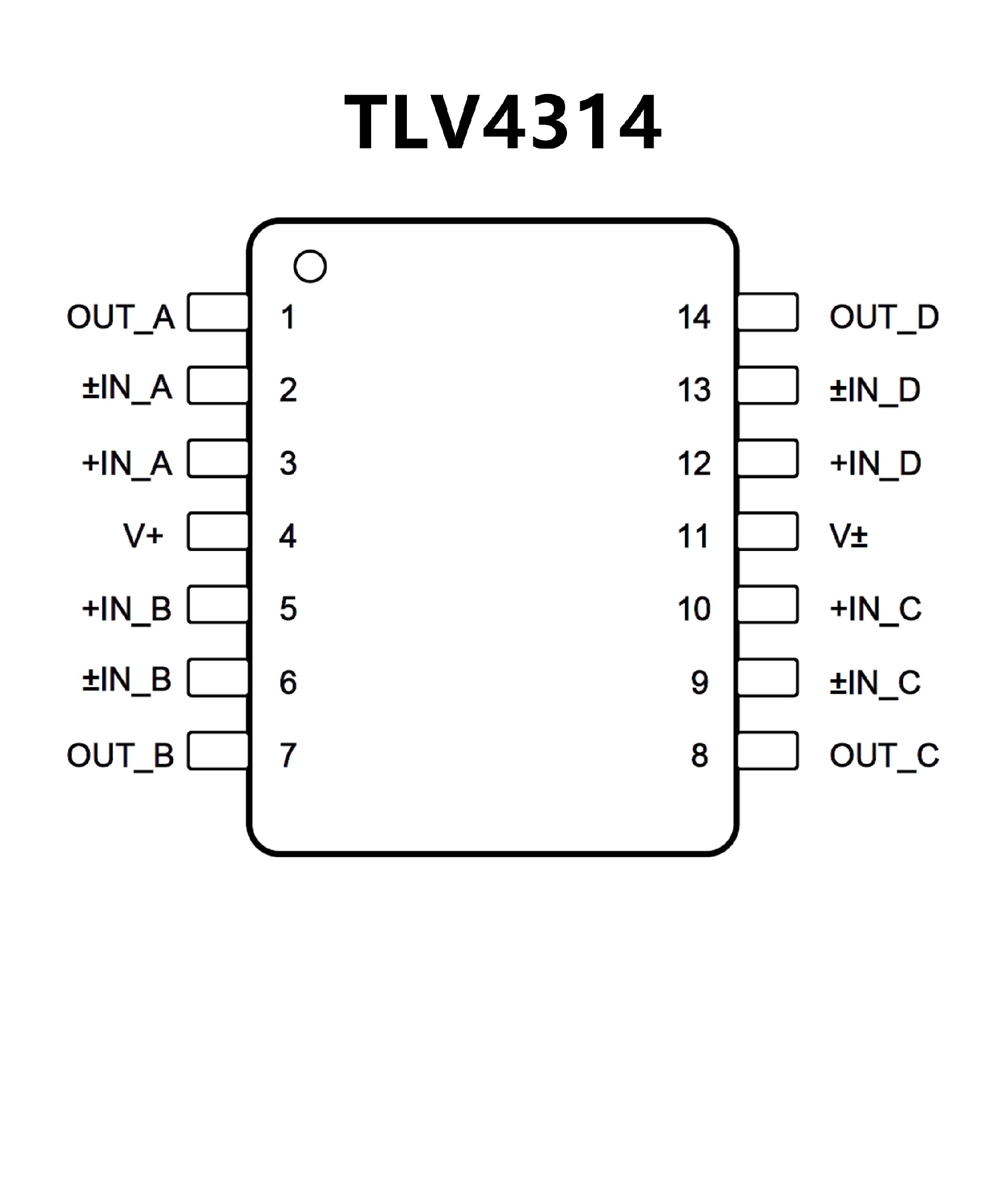

PIN CONFIGUTION
