100V Half-Bridge SolidGaN for Motor Drive Application,SGMGQ11810 P2P ISG3204LA.
SGMGQ11810.pdf优势替代
FEATURES
• 2.4mΩ Half-Bridge GaN FETs with Gate Driver
• 80V Continuous, 100V Transient Voltage Rating
• Capable of up to 5MHz Switching
• Independent High-Side and Low-Side PWM Inputs
• High-Side and Low-Side Driver Interlocking
• Internal Strong and Smart Bootstrap Switch
• Adaptive Shoot-Through Protection
• Fast Propagation Delay (20ns Typical)
• Excellent Delay Matching (1ns Typical)
• Built-In UVLO, OVLO, OTP Protections
• 35μA Low VCC Quiescent Current
• Integrated VCC/BST capacitors
• High dv/dt Immunity up to 50V/ns
• Adjustable Turn-on Speeds
• Optimized for Easy and Low-EMI PCB Layout
• LGA 5mmx6.5mm Package, 1.12mm Profile

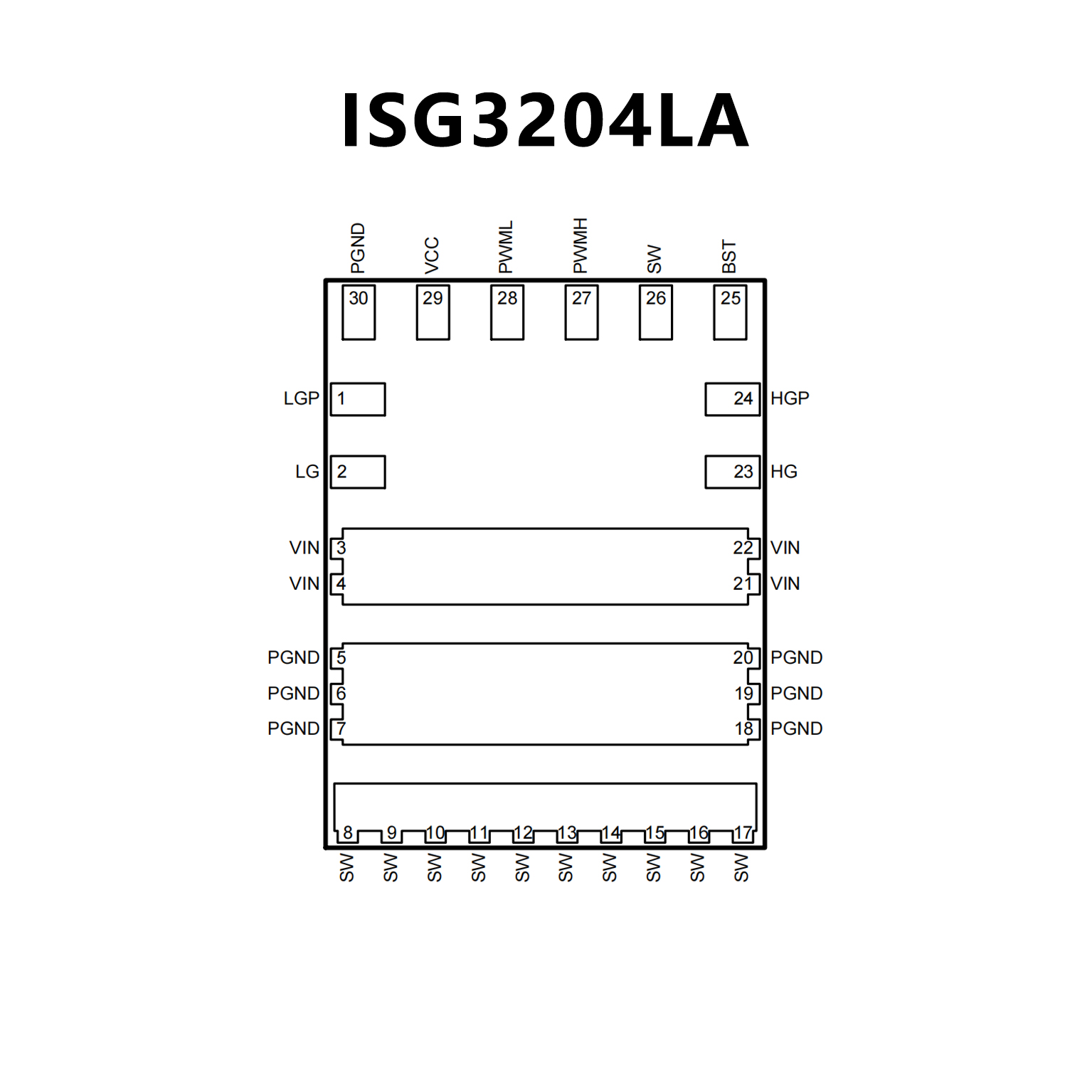

PIN CONFIGUTION
