300mA, Low IQ, High PSRR LDO Regulators, TMI6030 功能替代TI物料TPS727.
TMI6030系列
TMI6030系列.pdf
TMI6030系列.pdfFEATURES
• 2.5V to 5.5V Input Voltage Range
• 320mV @300mA typical Dropout Voltage
• Excellent Transient Response
• Stable with 1μF Ceramic Output Capacitor
• 70dB PSRR at 1kHz
• Low Quiescent Current: 50μA typical.
• Low Shutdown Current: <1μA
• Output Accuracy: ±2%
• Fixed Output Voltage: 1.2V~3.3V
• Current Limit Protection
• Thermal Shutdown
• Output Auto-Discharge in Shutdown
• RoHS Compliant and 100% Lead (Pb)- Free, Halogen-Free

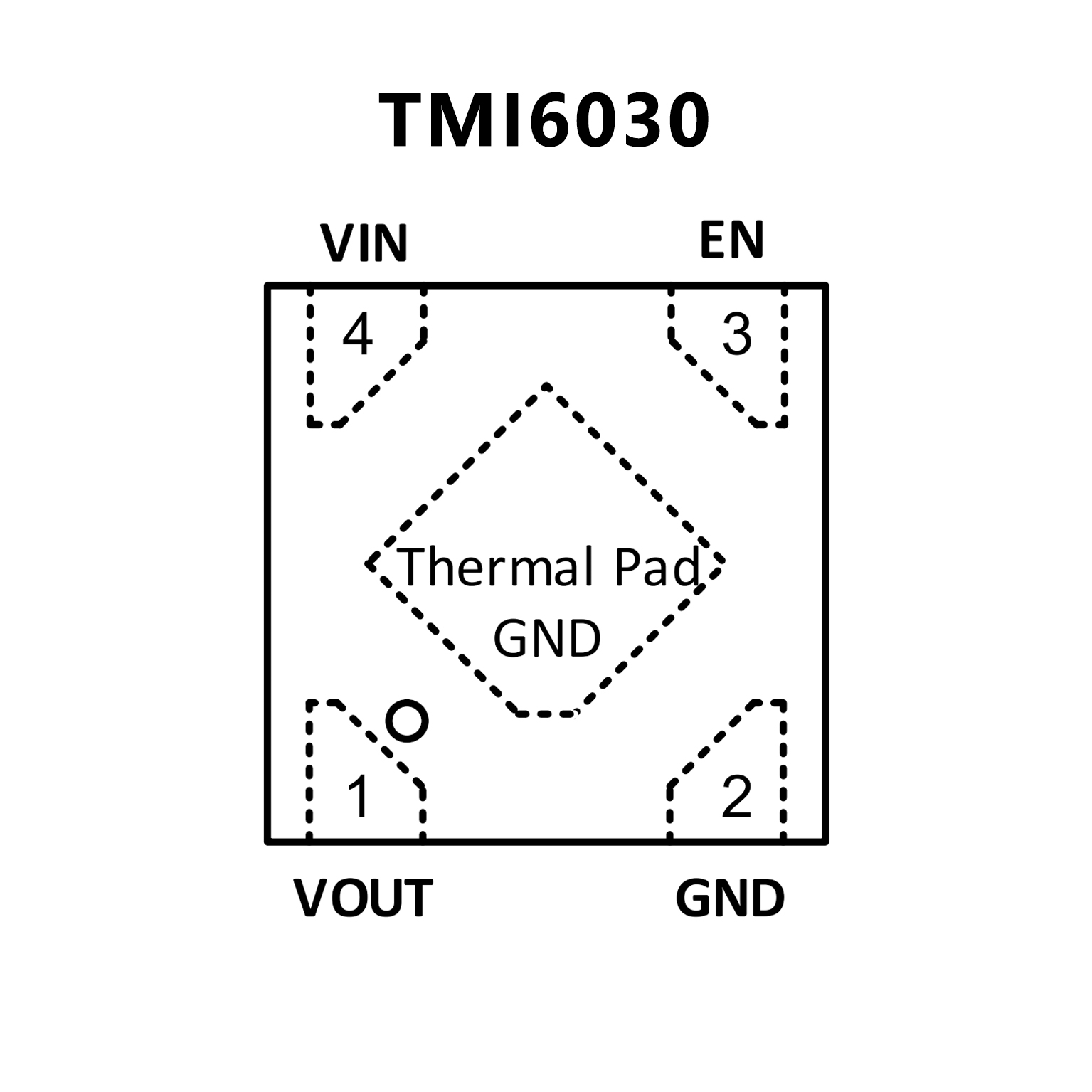

PIN CONFIGUTION
优势替代
FEATURES
• Very Low Dropout:
• 65 mV Typical at 100 mA
• 130 mV Typical at 200 mA
• 163 mV Typical at 250 mA
• 2% Accuracy Over Load, Line, Temperature
• Ultralow IQ: 7.9 µA
• Excellent Load Transient Performance:±50 mV
for 200 mA Loading and Unloading Transient
• Available in Fixed-Output Voltages From 0.9 V
to 5 V Using Innovative Factory EEPROM Programming
• High PSRR: 70 dB at 1 kHz
• Stable with a 1.0-µF Ceramic Capacitor
• Thermal Shutdown and Overcurrent Protection
• Available in 4-Ball, 0.4-mm Pitch Wafer-Level Chip Scale
and 1.5-mm × 1.5-mm SON Packages

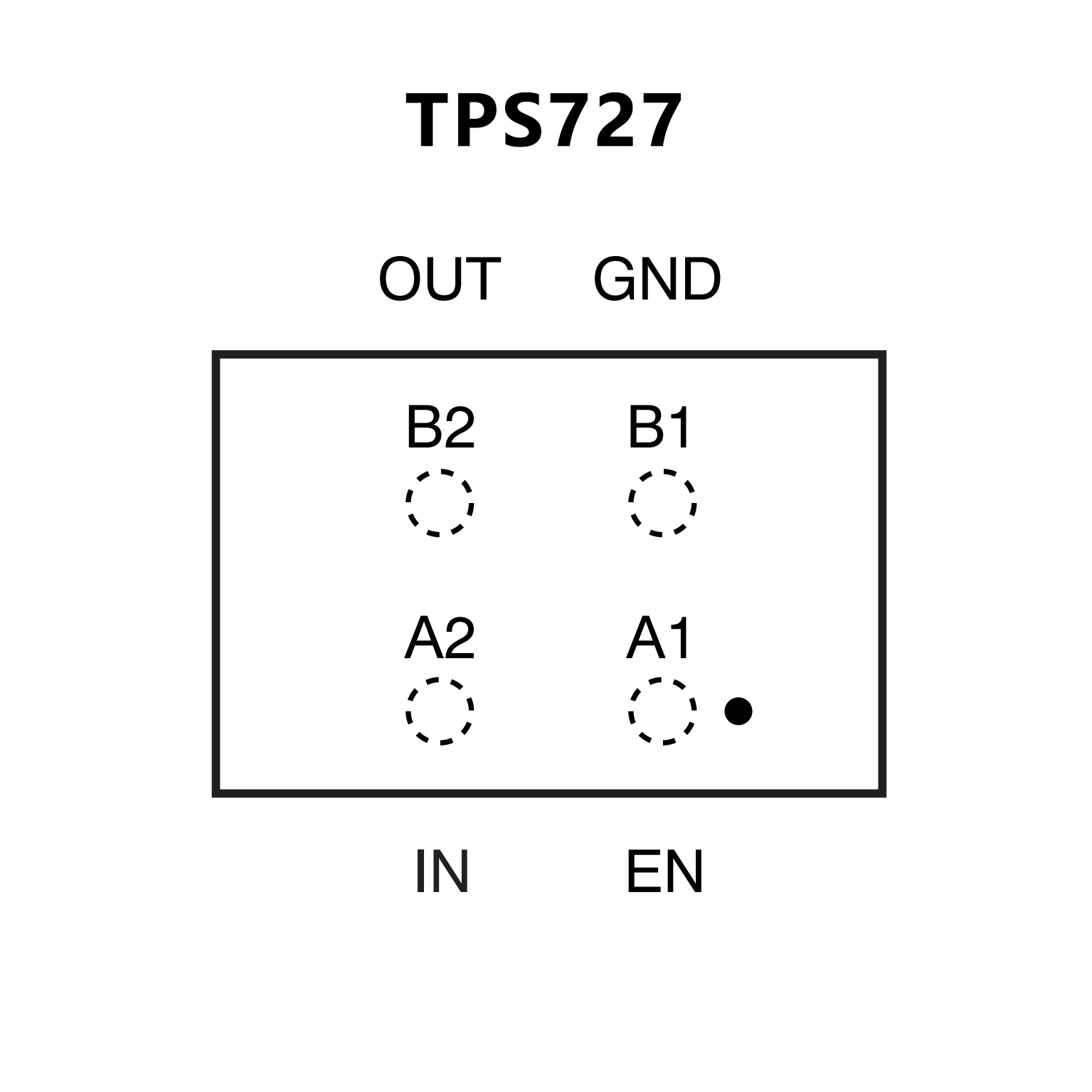

PIN CONFIGUTION
