300mA, Low IQ, High PSRR LDO Regulators, TMI6030 Replace TPS782XX.
TMI6030系列
TMI6030系列.pdf
TMI6030系列.pdfFEATURES
• 2.5V to 5.5V Input Voltage Range
• 320mV @300mA typical Dropout Voltage
• Excellent Transient Response
• Stable with 1μF Ceramic Output Capacitor
• 70dB PSRR at 1kHz
• Low Quiescent Current: 50μA typical.
• Low Shutdown Current: <1μA
• Output Accuracy: ±2%
• Fixed Output Voltage: 1.2V~3.3V
• Current Limit Protection
• Thermal Shutdown
• Output Auto-Discharge in Shutdown
• RoHS Compliant and 100% Lead (Pb)- Free, Halogen-Free

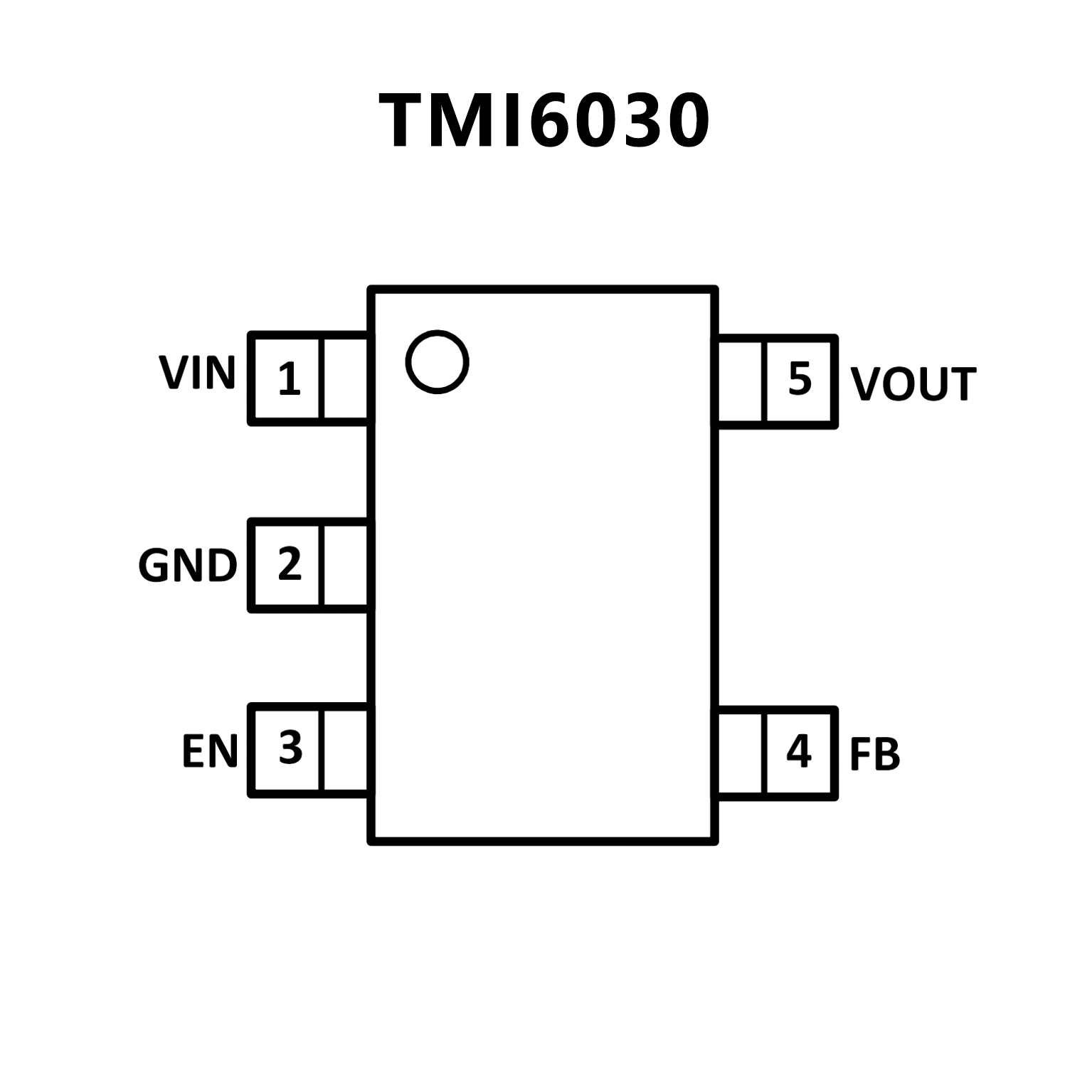

PIN CONFIGUTION
优势替代
FEATURES
• Low IQ: 500 nA
• 150-mA, Low-Dropout Regulator
• Input Voltage Range: 2.2 V to 5.5 V
• Low-Dropout at 25°C, 130 mV at 150 mA
• Low-Dropout at 85°C, 175 mV at 150 mA
• 3% Accuracy Over Load, Line, and Temperature
• Stable with a 1.0-µF Ceramic Capacitor
• Thermal Shutdown and Overcurrent Protection
• CMOS Logic Level-Compatible Enable Pin
• Available in DDC (TSOT23-5) or
DRV (2-mm x 2-mm SON-6) Packages

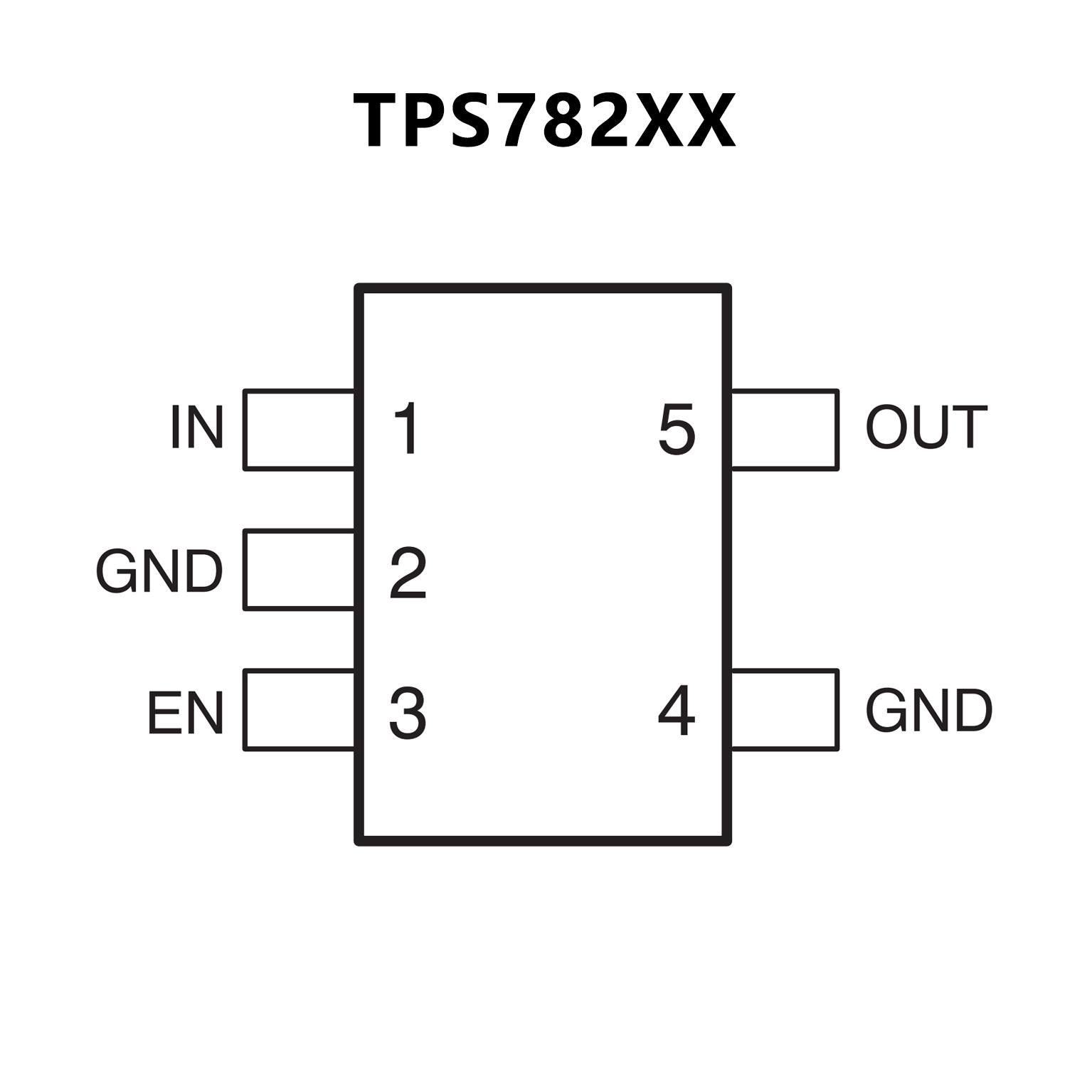

PIN CONFIGUTION
