300mA, Low IQ, High PSRR LDO Regulators, TMI6030 Replace TPS79301.
TMI6030系列
TMI6030系列.pdf
TMI6030系列.pdfFEATURES
• 2.5V to 5.5V Input Voltage Range
• 320mV @300mA typical Dropout Voltage
• Excellent Transient Response
• Stable with 1μF Ceramic Output Capacitor
• 70dB PSRR at 1kHz
• Low Quiescent Current: 50μA typical.
• Low Shutdown Current: <1μA
• Output Accuracy: ±2%
• Fixed Output Voltage: 1.2V~3.3V
• Current Limit Protection
• Thermal Shutdown
• Output Auto-Discharge in Shutdown
• RoHS Compliant and 100% Lead (Pb)- Free, Halogen-Free

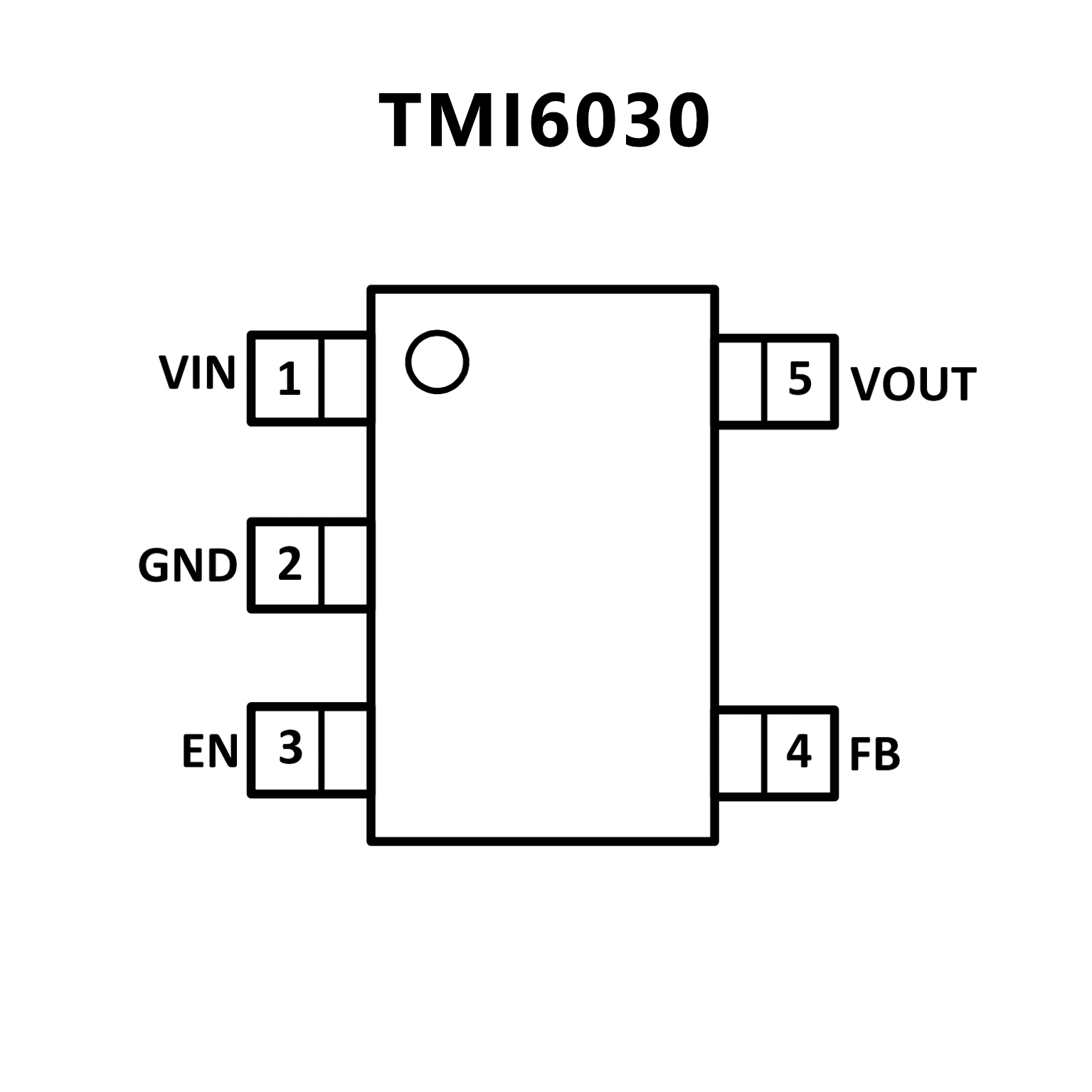

PIN CONFIGUTION
优势替代
FEATURES
• 200-mA RF Low-Dropout Regulator With Enable
• Available in Fixed-Voltage Versions from 1.8 V to
4.75 V and Adjustable (1.22 V to 5.5 V)
• High PSRR (70 dB at 10 kHz)
• Low Noise (32 μVRMS, TPS79328)
• Fast Start-Up Time (50 μs)
• Stable With a 2.2-μF Ceramic Capacitor
• Excellent Load and Line Transient Response
• Very Low Dropout Voltage (112 mV at 200 mA,
TPS79330)
• 5- and 6-Pin SOT23 (DBV) and NanoStar Wafer
Chip Scale (YZQ) Packages

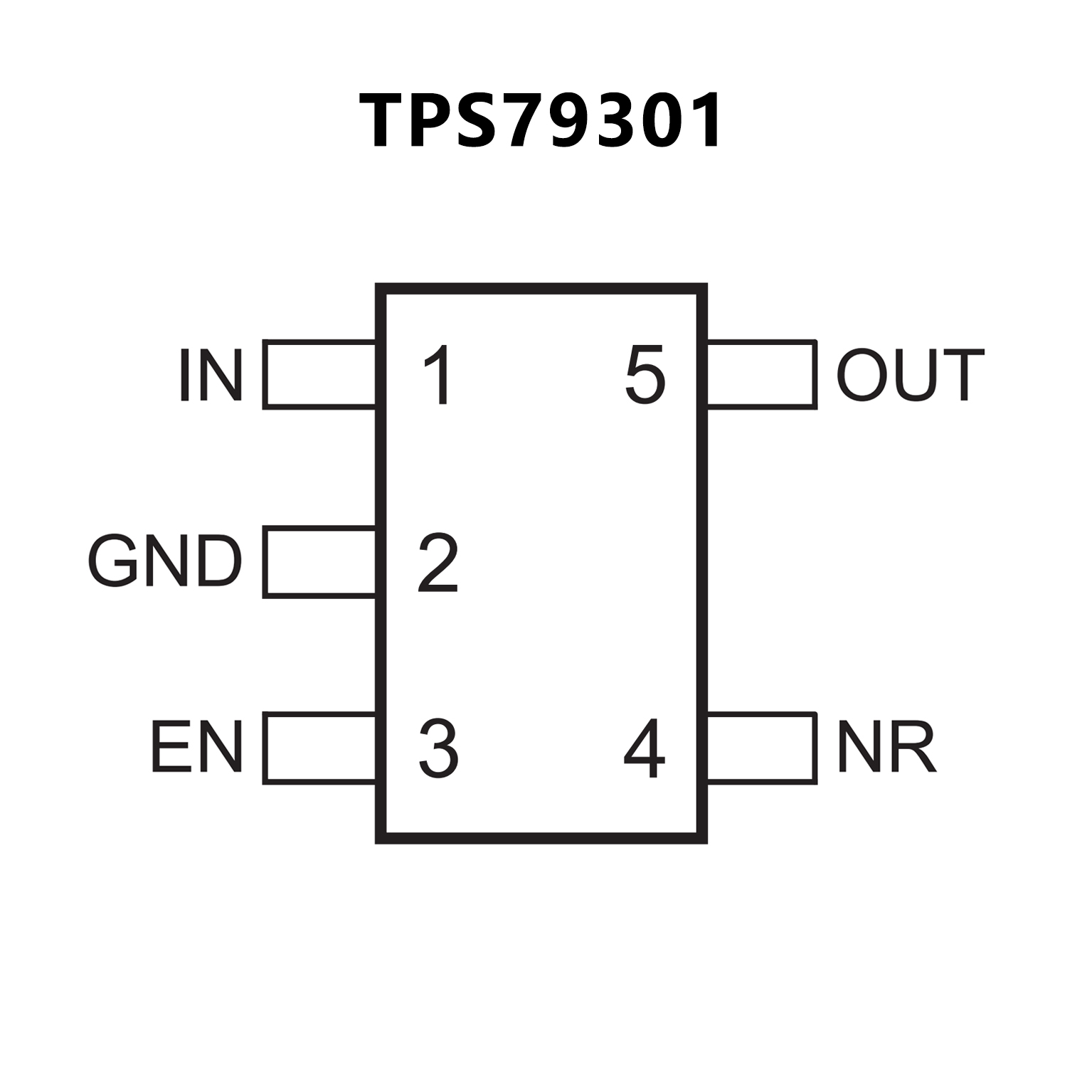

PIN CONFIGUTION
