300mA, Low IQ, High PSRR LDO Regulators, TMI6030 Replace TPS79901.
TMI6030系列
TMI6030系列.pdf
TMI6030系列.pdfFEATURES
• 2.5V to 5.5V Input Voltage Range
• 320mV @300mA typical Dropout Voltage
• Excellent Transient Response
• Stable with 1μF Ceramic Output Capacitor
• 70dB PSRR at 1kHz
• Low Quiescent Current: 50μA typical.
• Low Shutdown Current: <1μA
• Output Accuracy: ±2%
• Fixed Output Voltage: 1.2V~3.3V
• Current Limit Protection
• Thermal Shutdown
• Output Auto-Discharge in Shutdown
• RoHS Compliant and 100% Lead (Pb)- Free, Halogen-Free

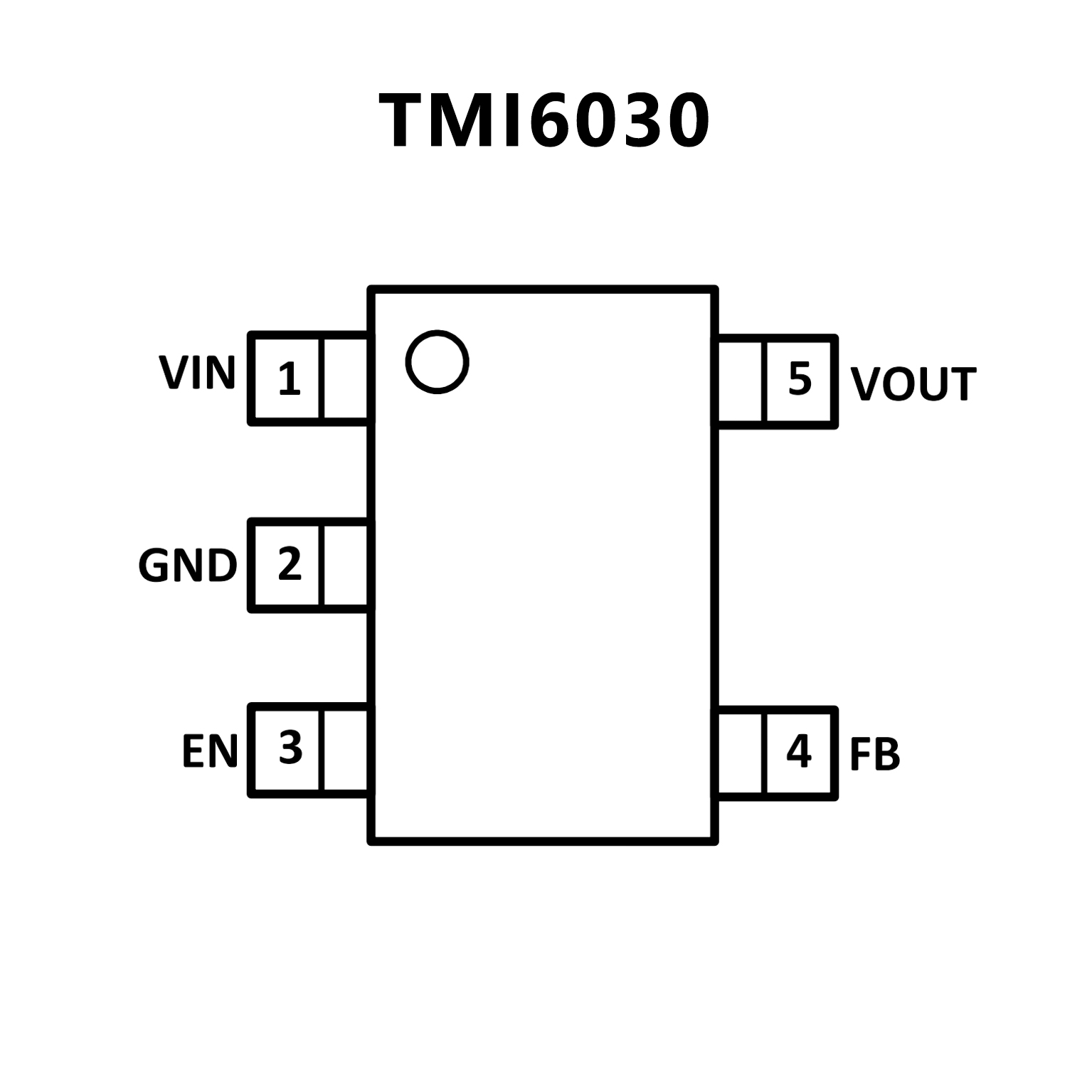

PIN CONFIGUTION
优势替代
FEATURES
• 200mA Low Dropout Regulator with EN
• Low IQ: 40mA
• Multiple Output Voltage Versions Available:
– Fixed Outputs of 1.2V to 4.5V Using
Innovative Factory EEPROM Programming
– Adjustable Outputs from 1.20V to 6.5V
• High PSRR: 66dB at 1kHz
• Ultra-low Noise: 29.5mVRMS
• Fast Start-Up Time: 45ms
• Stable with a Low-ESR, 2.0mF Typical Output Capacitance
• Excellent Load/Line Transient Response
• 2% Overall Accuracy (Load/Line/Temp)
• Very Low Dropout: 100mV
• ThinSOT-23, WCSP, and 2mm × 2mm SON-6 Packages

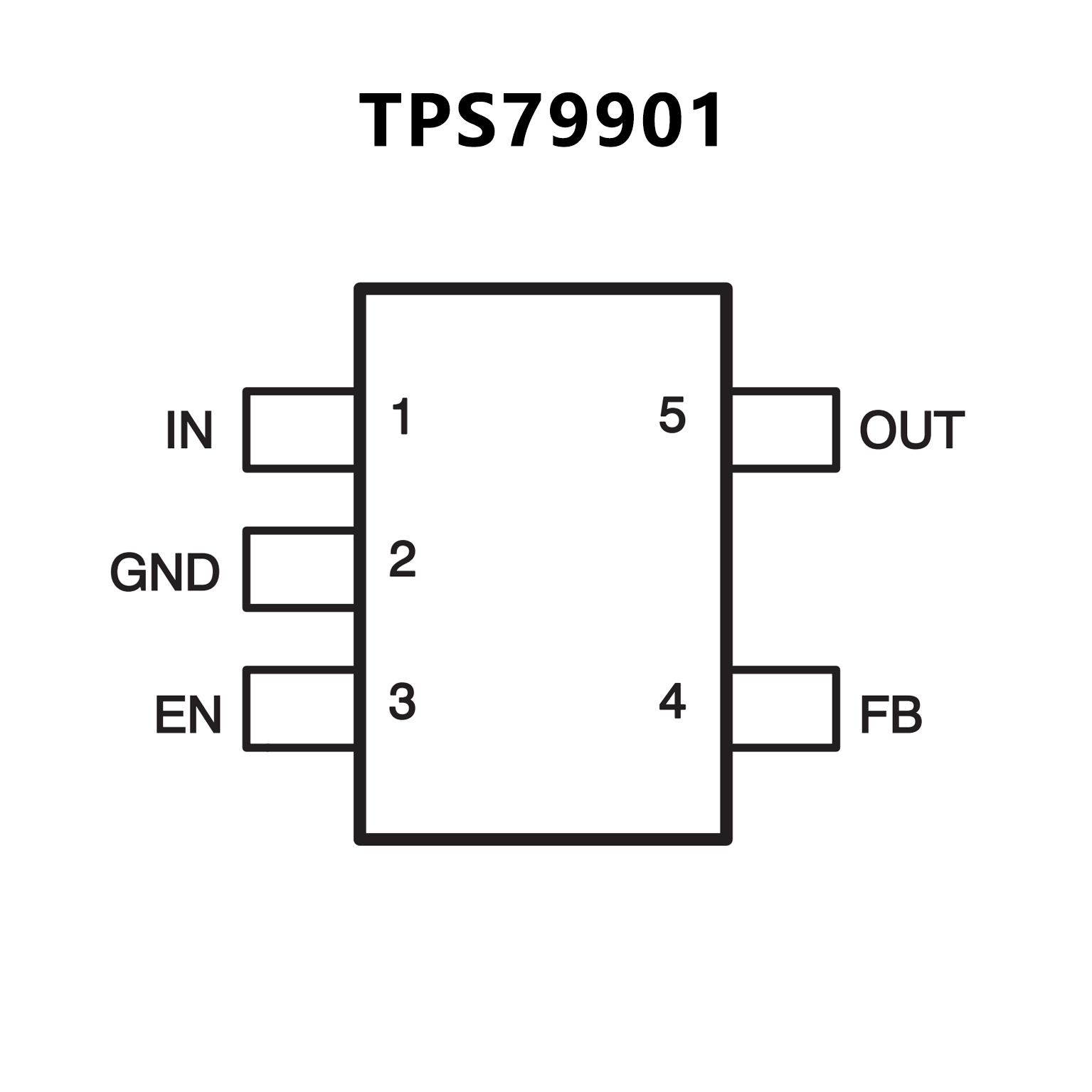

PIN CONFIGUTION
