300mA, Low noise, High PSRR, High speed, CMOS LDO Regulators with fixed Voltage, TMI6036 P2P TLV743P.
TMI6036/A/D
TMI6036/A/D.pdf
TMI6036/A/D.pdfFEATURES
• VIN Voltage Range: 1.4V to 5.5V
• Fixed Output Voltage Version: 0.9V, 1.0V,
1.2V, 1.3V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V
• Output Current: 300mA
• Quiescent Current: 50μA Type
• Shut-down Current: <1μA
• Low Dropout Voltage:
170mV@IOUT=0.3A, VOUT=3.3V
• PSRR: 85dB@1kHz, VOUT=2.8V
• Low Output Voltage Noise:
16μVRMS@IOUT=10mA, VOUT=0.9V
50μVRMS@IOUT=10mA, VOUT=2.8V
• Output Voltage Tolerance: ±1.5%
• Thermal-Overload and Short-Circuit Protection
• Package of TMI6036-XX: SOT23-5
• Package of TMI6036D-XX: DFN1x1-4

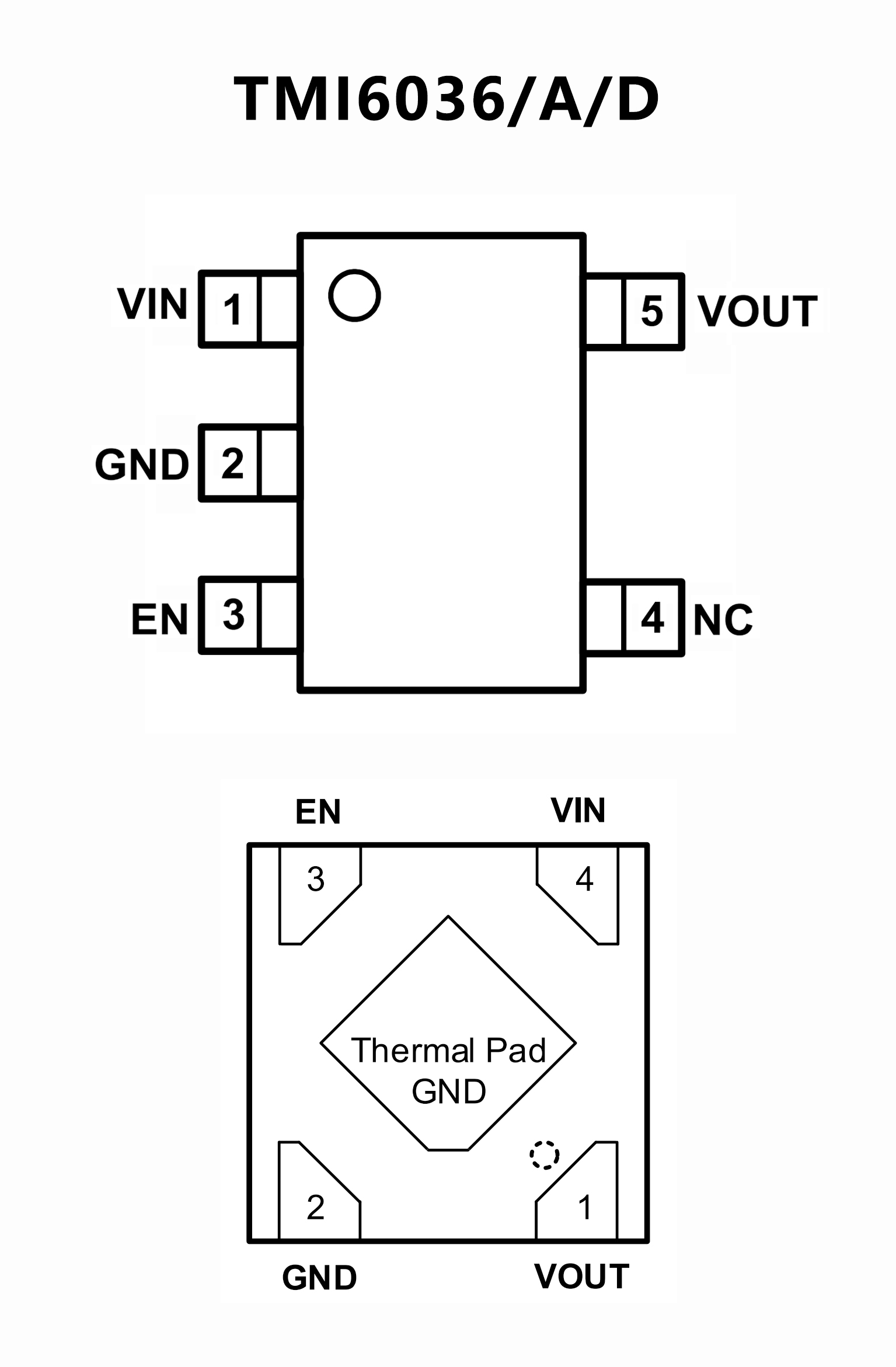

PIN CONFIGUTION
优势替代
FEATURES
• Input Voltage Range: 1.4 V to 5.5 V
• Stable Operation With 1-µF Ceramic Output
Capacitor
• Foldback Overcurrent Protection
• Packages:
– SOT-23 (5)
– X2SON (4)
• Very Low Dropout: 125 mV at 300 mA (3.3 VOUT)
• Accuracy: 1% (Typical), 1.4% (Maximum)
• Low IQ: 34 µA
• Available in Fixed-Output Voltages:
1 V to 3.3 V
• High PSRR: 50 dB at 1 kHz
• Active Output Discharge

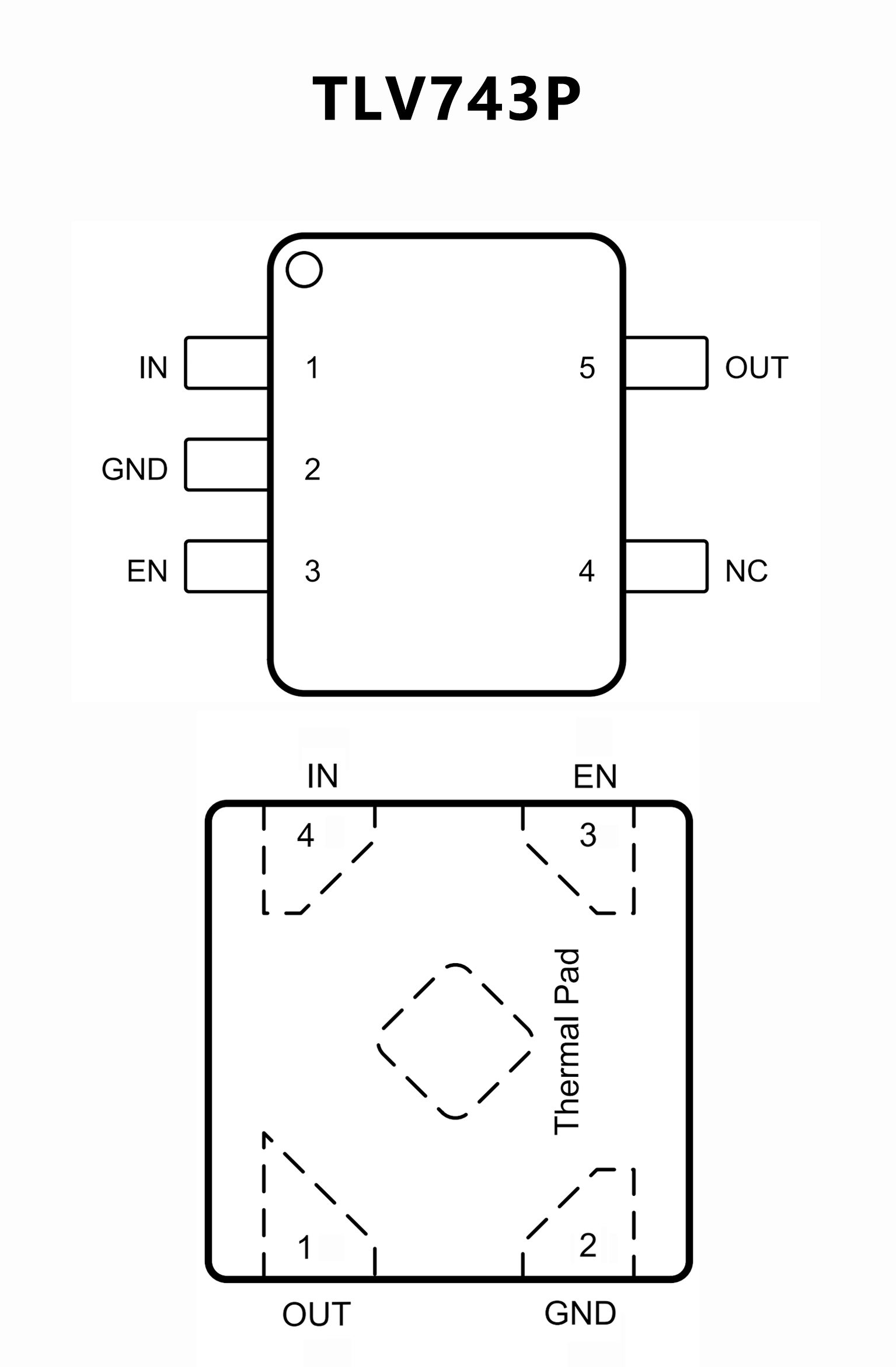

PIN CONFIGUTION
