1.5µA Low Iq, 300mA Low Noise LDO Regulator, TMI6038 Replace TLV702XX.
TMI6038
TMI6038.pdf
TMI6038.pdfFEATURES
• 1.5µA Quiescent Current Typically
• 70dB PSRR at 1kHz
• Up to 300mA Output Current
• Low Shutdown Current: <0.1µA
• Output Voltage Accuracy: ±2%
• Output Current Limit Protection
• Fixed Output Voltage 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V
• Stable with Ceramic Output Capacitors
• Thermal Shutdown
• Output Auto-Discharge in EN Shutdoun
• Available in SOT23-5 Package

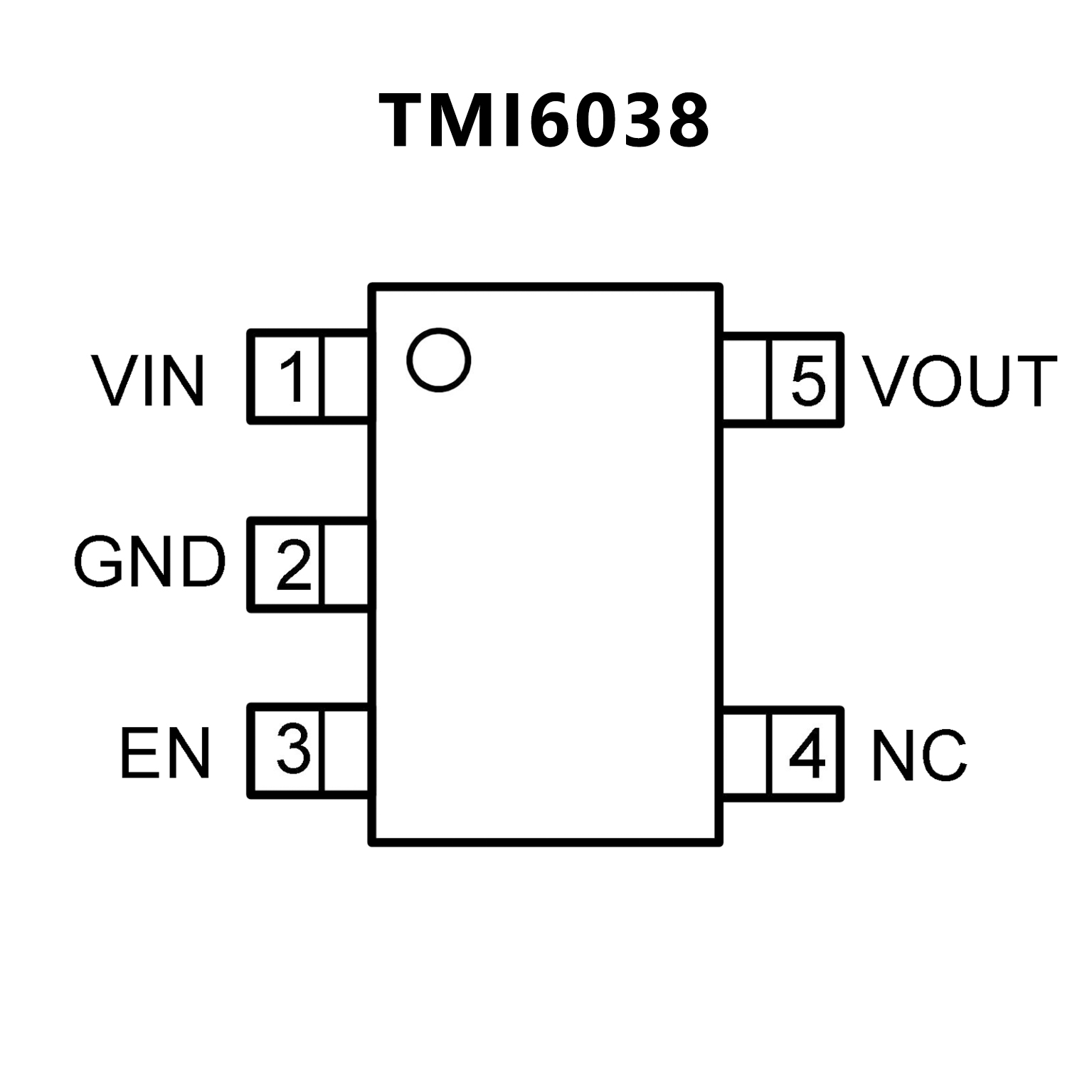

PIN CONFIGUTION
优势替代
FEATURES
• Very Low Dropout:
– 37 mV at IOUT = 50 mA, VOUT = 2.8 V
– 75 mV at IOUT = 100 mA, VOUT = 2.8 V
– 220mV at IOUT = 300 mA, VOUT = 2.8 V
• 2% Accuracy
• Low IQ: 35 μA
• Fixed-Output Voltage Combinations Possible from
1.2 V to 4.8 V
• High PSRR: 68 dB at 1 kHz
• Stable With Effective Capacitance of 0.1 μF (1)
• Thermal Shutdown and Overcurrent Protection
• Packages: 5-Pin SOT-23 and 1.5-mm × 1.5-mm,
6-Pin WSON

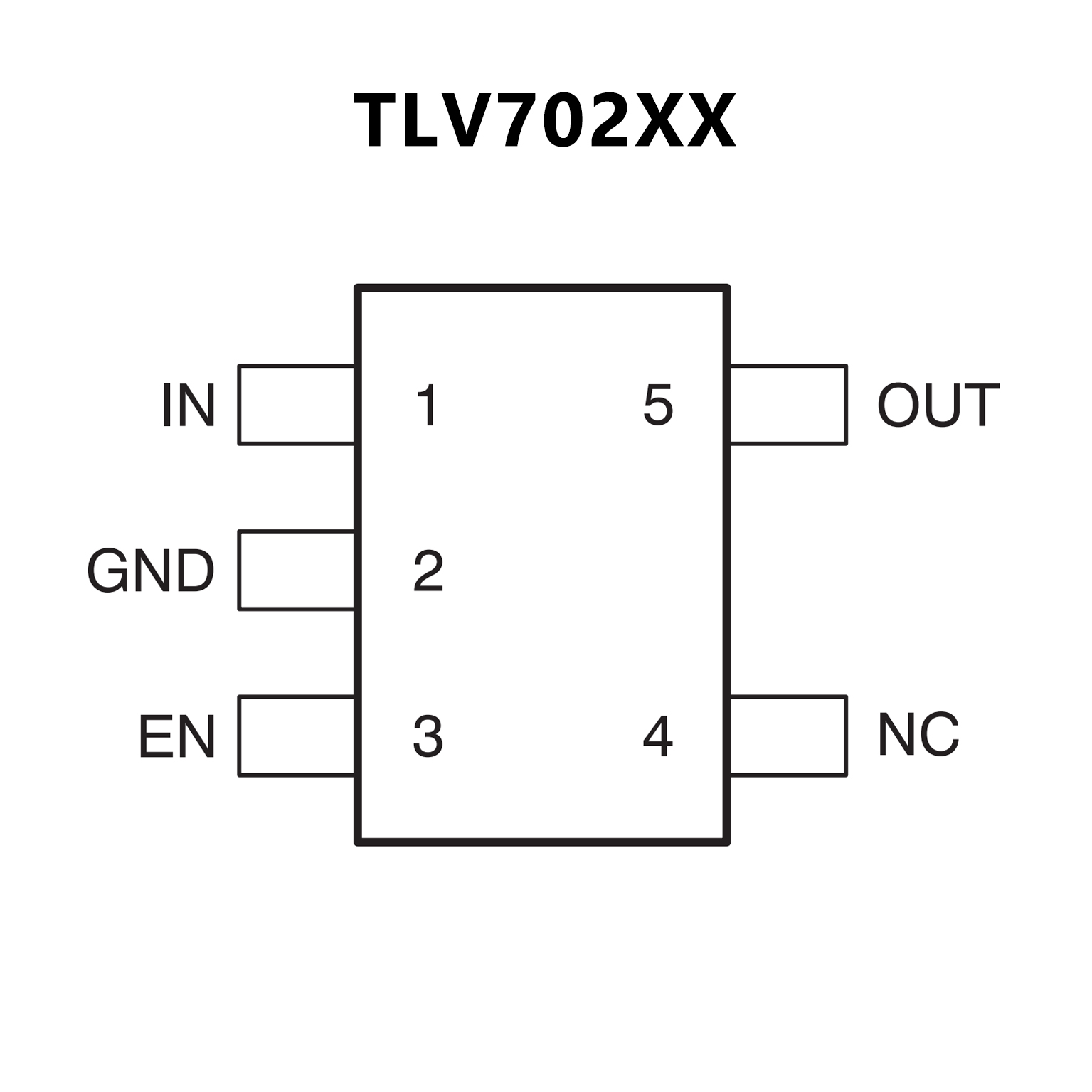

PIN CONFIGUTION
