1.5µA Low Iq, 300mA Low Noise LDO Regulator, TMI6038 Replace TPS79333.
TMI6038
TMI6038.pdf
TMI6038.pdfFEATURES
• 1.5µA Quiescent Current Typically
• 70dB PSRR at 1kHz
• Up to 300mA Output Current
• Low Shutdown Current: <0.1µA
• Output Voltage Accuracy: ±2%
• Output Current Limit Protection
• Fixed Output Voltage 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V
• Stable with Ceramic Output Capacitors
• Thermal Shutdown
• Output Auto-Discharge in EN Shutdoun
• Available in SOT23-5 Package

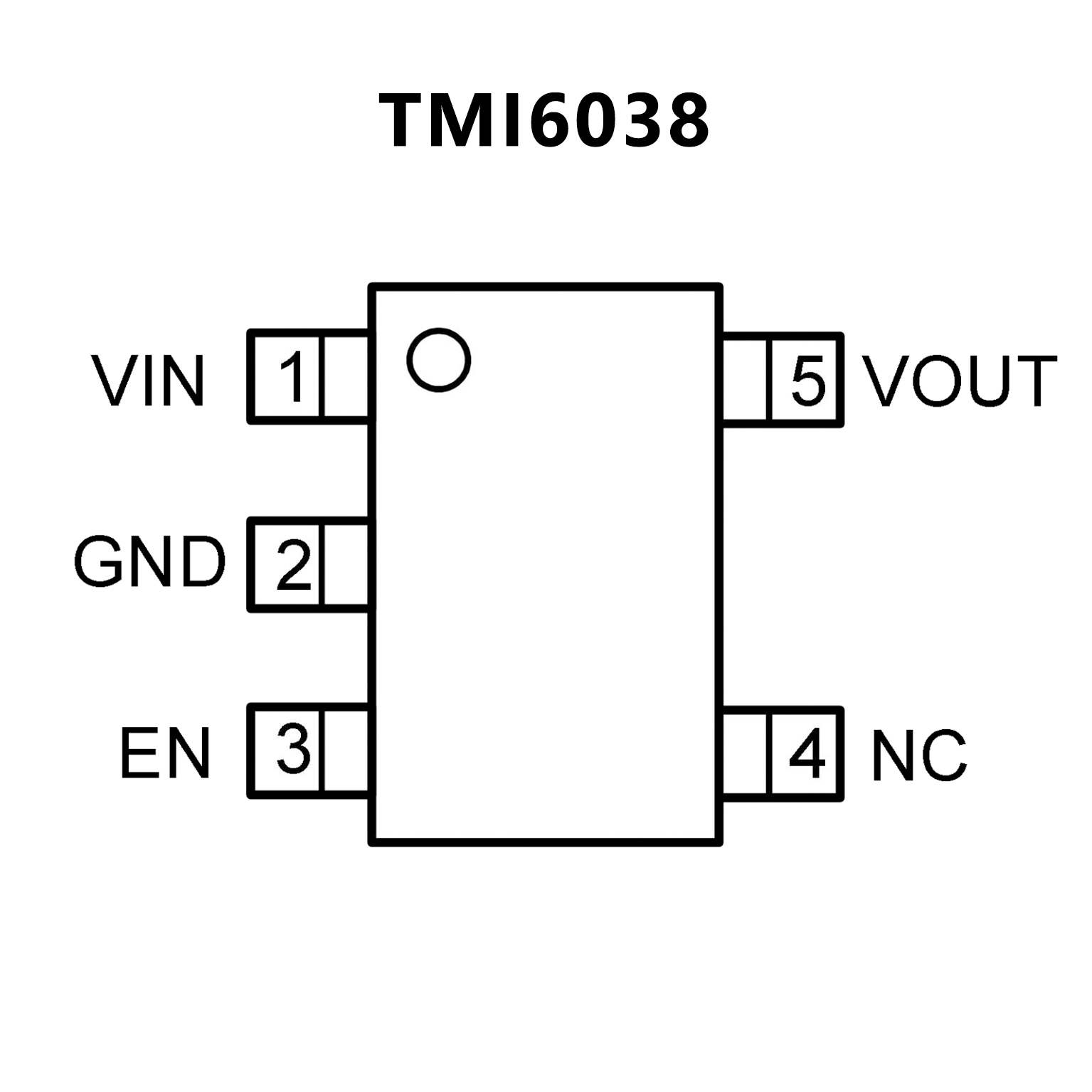

PIN CONFIGUTION
优势替代
FEATURES
• 200-mA RF Low-Dropout Regulator With Enable
• Available in Fixed-Voltage Versions from 1.8 V to
4.75 V and Adjustable (1.22 V to 5.5 V)
• High PSRR (70 dB at 10 kHz)
• Low Noise (32 μVRMS, TPS79328)
• Fast Start-Up Time (50 μs)
• Stable With a 2.2-μF Ceramic Capacitor
• Excellent Load and Line Transient Response
• Very Low Dropout Voltage (112 mV at 200 mA,
TPS79330)
• 5- and 6-Pin SOT23 (DBV) and NanoStar Wafer
Chip Scale (YZQ) Packages

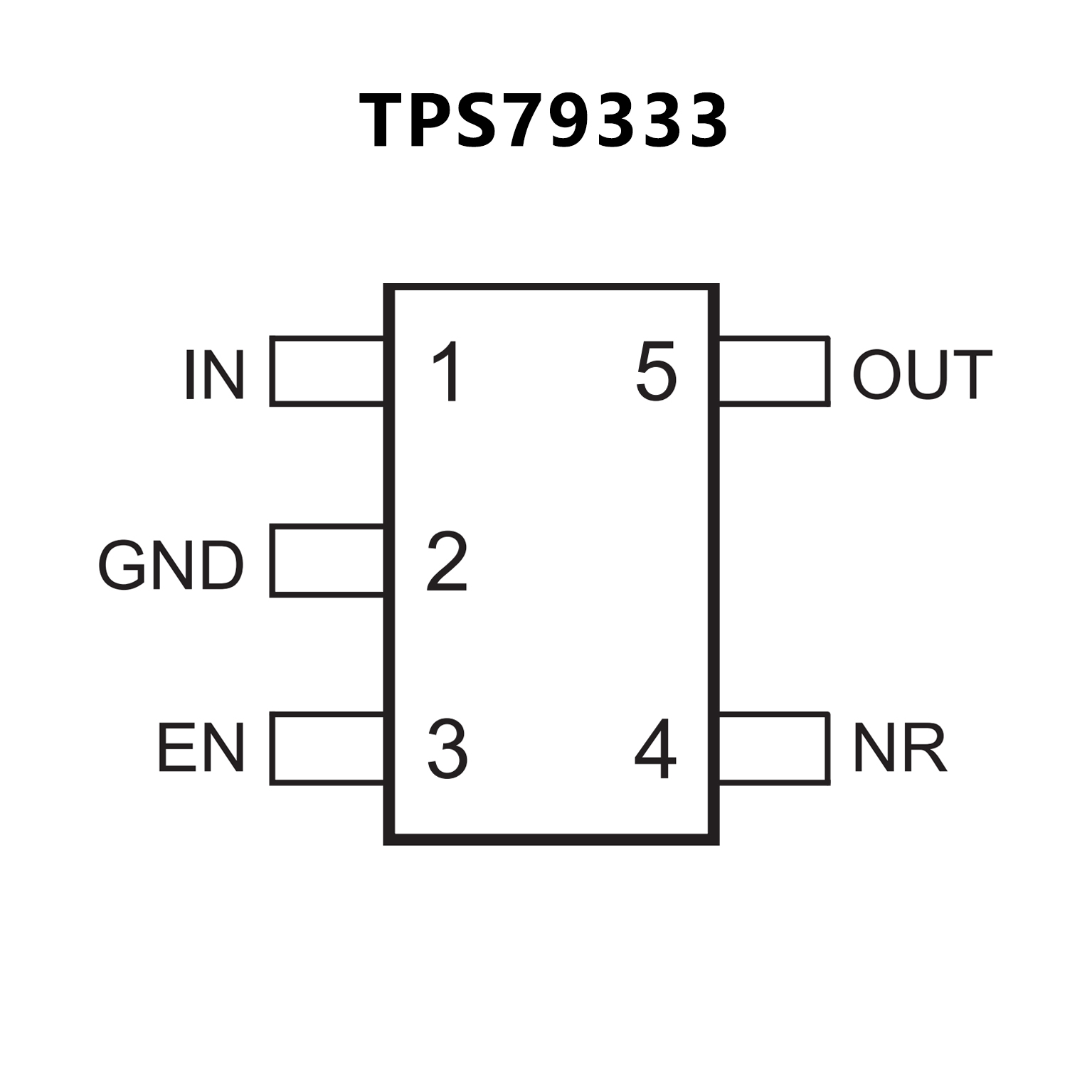

PIN CONFIGUTION
