3A Sink and Source DDR Termination Regulator, TMI62033 Replace TPS51200.
TMI62033
TMI62033.pdf
TMI62033.pdfFEATURES
• VIN Voltage: Supports 2.5V or 3.3V Power Rail
• VLDOIN Voltage Range: 1.1V to 3.5V
• Sink and Source Termination Regulator
Includes Droop Compensation
• PGOOD to Monitor Output Regulation
• Remote Sensing (VOSNS)
• REFIN Input Allows for Flexible Input Tracking
Either Directly or Through Resistor Divider
• ±25mA Buffered Reference (REFOUT)
• Built-in Soft Start, UVLO, and OCL
• Supports DDR, DDR2, DDR3, DDR3L, Low
Power DDR3, and DDR4 VTT Applications
• Thermal Shutdown

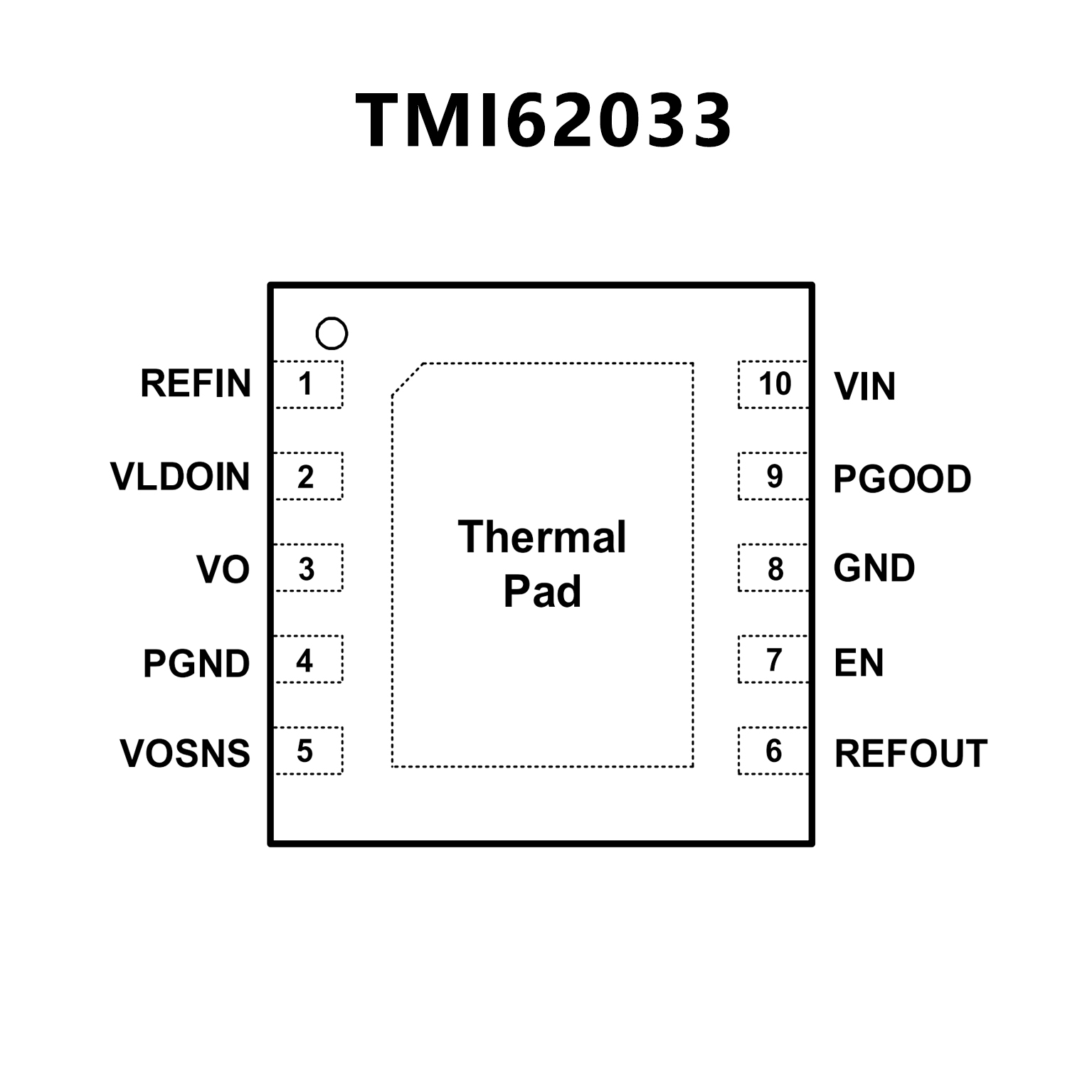

PIN CONFIGUTION
优势替代
FEATURES
• Input Voltage: Supports 2.5-V Rail and 3.3-V Rail
• VLDOIN Voltage Range: 1.1 V to 3.5 V
• Sink and Source Termination Regulator Includes
Droop Compensation
• Requires Minimum Output Capacitance of 20-μF
(Typically 3 × 10-μF MLCCs) for Memory
Termination Applications (DDR)
• PGOOD to Monitor Output Regulation
• EN Input
• REFIN Input Allows for Flexible Input Tracking
Either Directly or Through Resistor Divider
• Remote Sensing (VOSNS)
• ±10-mA Buffered Reference (REFOUT)
• Built-in Soft Start, UVLO, and OCL
• Thermal Shutdown
• Supports DDR, DDR2, DDR3, DDR3L, Low
Power DDR3, and DDR4 VTT Applications
• 10-Pin VSON Package With Thermal Pad

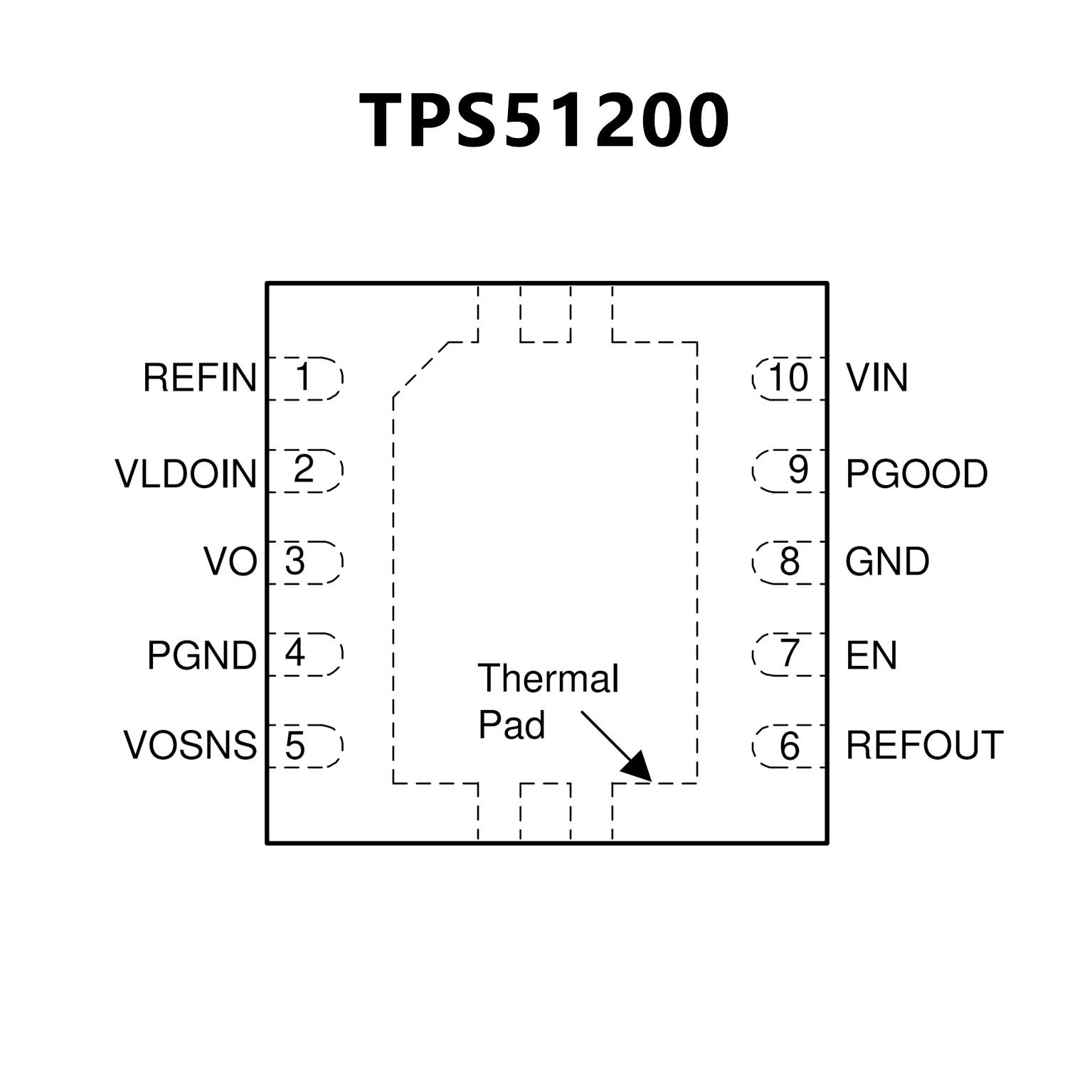

PIN CONFIGUTION
