TMI6261B.pdf• Integrated Typical 60mΩ Power MOSFET
• Low Supply Current
• 30μA Typical at Switch On State
• 1μA Typical at Switch Off State
• Wide Input Voltage Range: 2.5V to 5.5V
• Fast Transient Response: 8μs
• 0.1ms Typical Rise Time
• Reverse Current Flow Blocking
• Deglitched Open-Drain Over-Current Flag Output
• Output Discharge at shutdown (TMI6261B1 only)
• Thermal Shutdown Protection
• Hot Plug-In Application (Soft-Start)
• CB Test Certification by IEC62368-1:2014
• UL 2367 Certification - E528420

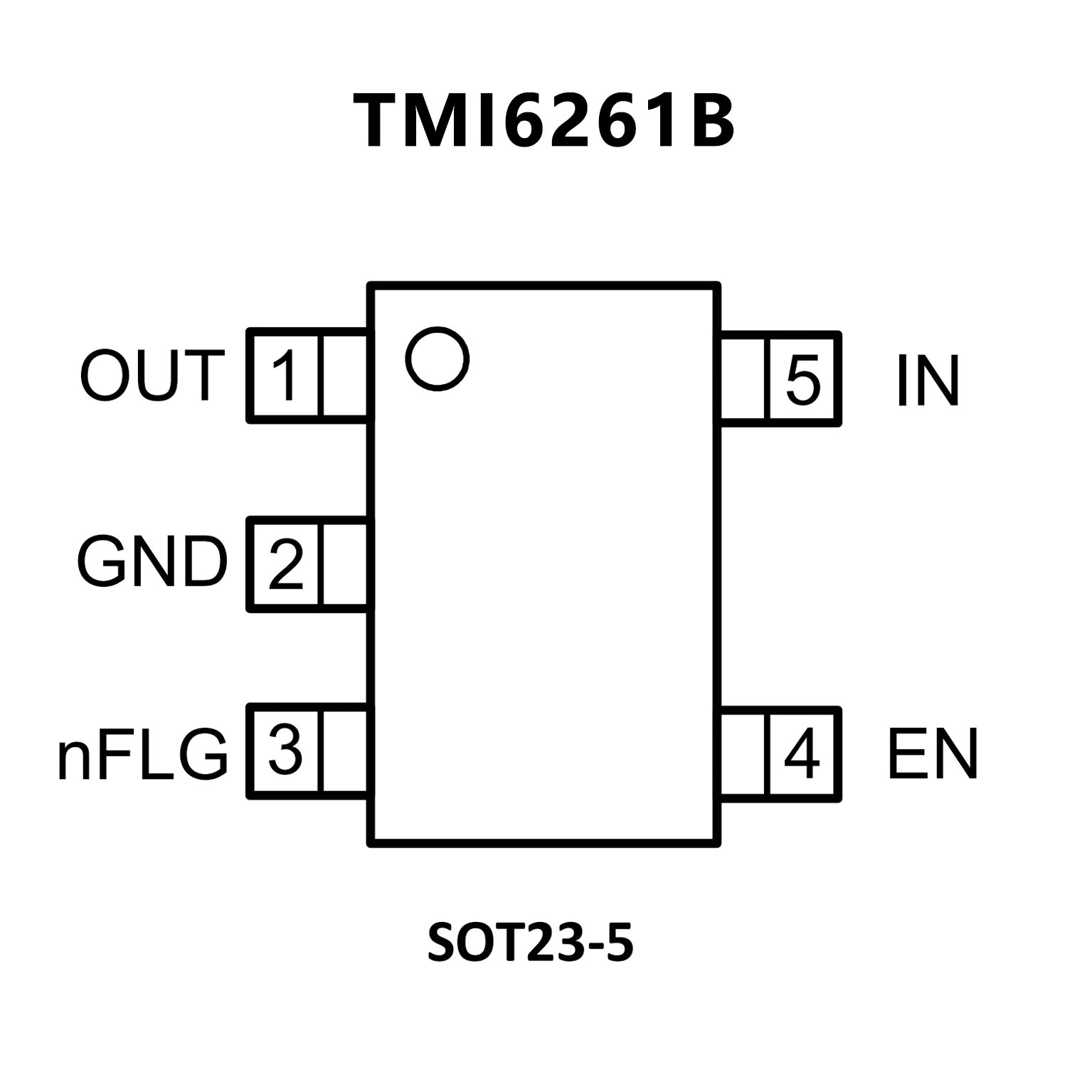

• SOT-23-6/SOT-23-5 Package
• 70-mΩ High-Side MOSFET
• 1-A Continuous Current • Short-Circuit Protections
• Thermal and Short-Circuit Protection
• Accurate Current Limit (1.1 A min, 1.9 A max)
• Operating Range: 2.7 V to 5.5 V
• 0.6-ms Typical Rise Time
• Undervoltage Lockout
• Deglitched Fault Report (OC)
• No OC Glitch During Power Up
• 1-μA Maximum Standby Supply Current
