Precision Power Distribution Switch, TMI6263AL Replace TPS2041CDBVR.
TMI6263AL
TMI6263AL.pdf
TMI6263AL.pdfFEATURES
• Integrated 60mΩ Power MOSFET
• 1μA Typical at Switch Off State
• Wide Input Voltage Range: 2.5V to 5.5V
• Fast Transient Response: 15μs
• 0.1ms Typical Rise Time
• Reverse Current Flow Blocking
• Automatic output discharge at shutdown
• Deglitched Open-Drain Over-Current Flag
Output (TMI6263AH, TMI6263AL)
• Thermal Shutdown Protection
• Hot Plug-In Application (Soft-Start)
• Two Enable polarities and four current levels
TMI6263AH: 2.0A/Enable High
TMI6263AL: 2.0A/Enable Low
TMI6263CH: 1.5A/Enable High
TMI6263BH: ADJ /Enable High
• CB Test Certification by IEC62368-1:2014
• UL 2367 Certification - E528420
• SOT-23-5 package

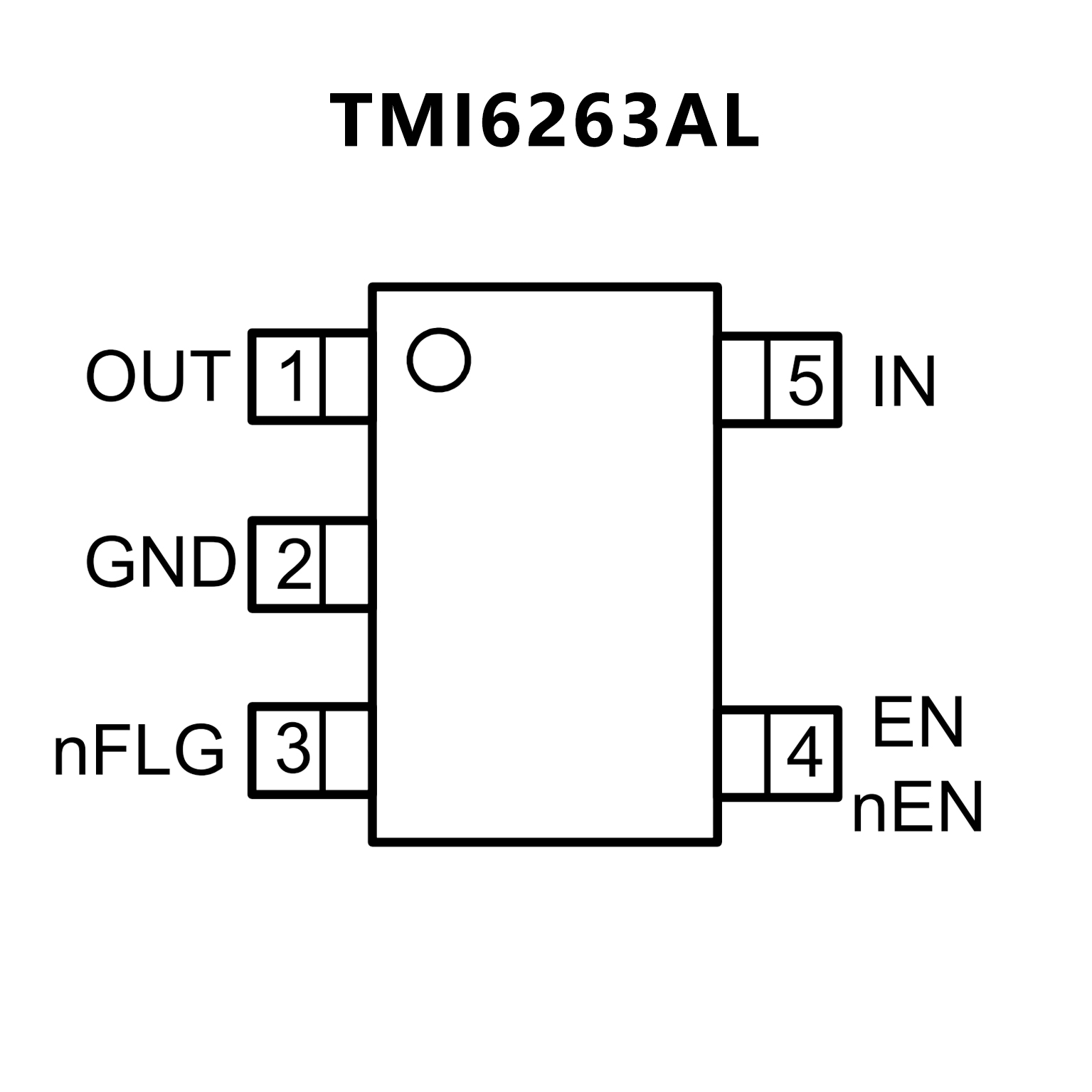

PIN CONFIGUTION
优势替代
FEATURES
• Single Power Switch Family
• Pin-for-Pin With Existing TI Switch Portfolio
• Rated Currents of 0.5 A, 1 A, 1.5 A, 2 A
• ±20% Accurate, Fixed, Constant Current Limit
• Fast Overcurrent Response: 2 µs
• Deglitched Fault Reporting
• Selected Parts With (TPS20xxC) and Without
(TPS20xxC-2) Output Discharge
• Reverse Current Blocking
• Built-In Soft Start
• Ambient Temperature Range: –40°C to 85°C
• UL Listed and CB-File No. E169910

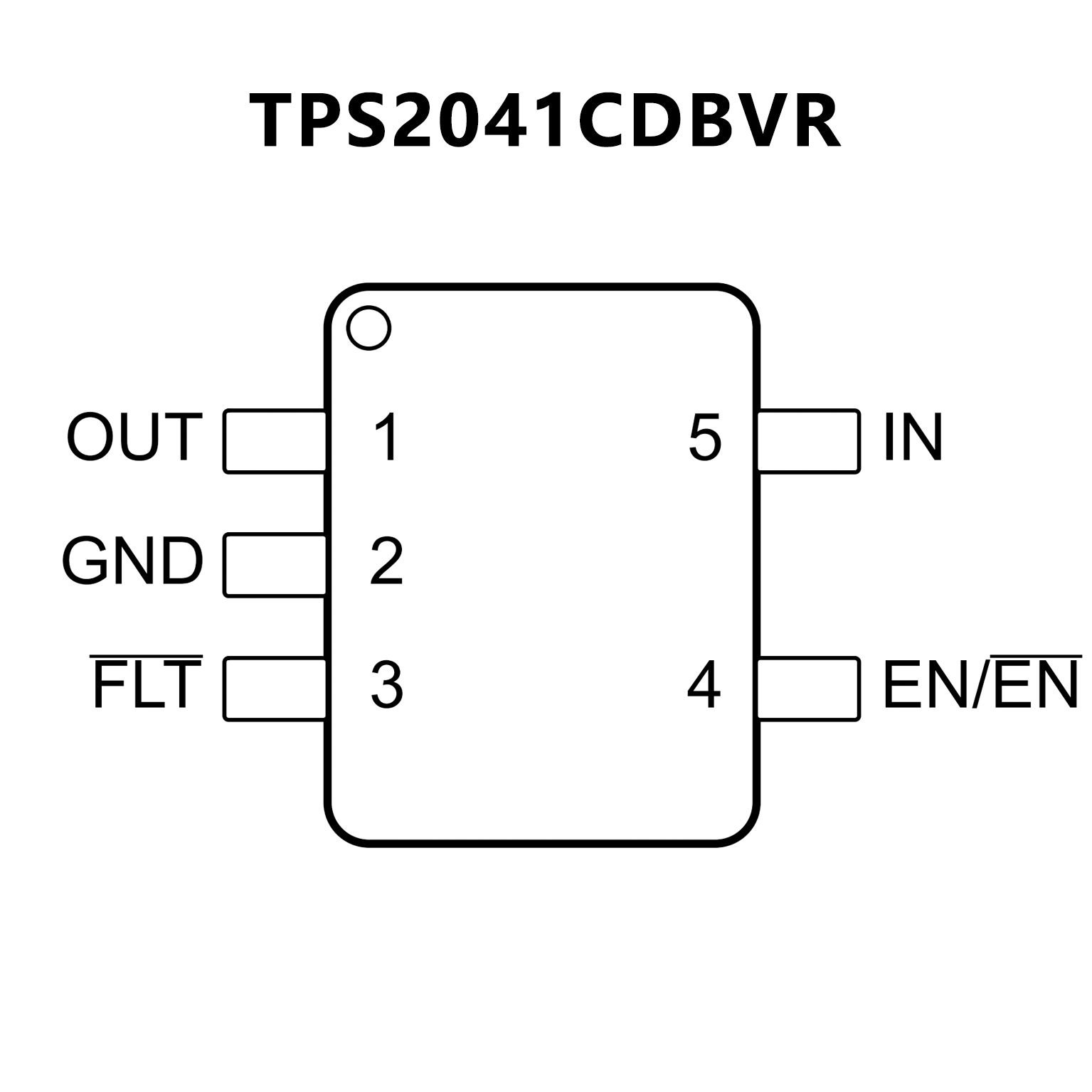

PIN CONFIGUTION
