Low Iq Supply Voltage Supervisory in SOT23-3, TMI6810 Replace TLV810.
TMI6810
TMI6810.pdf
TMI6810.pdfFEATURES
• Operating Supply Voltage: 1.0V to 5.5V
• ±2% Reset Threshold Accuracy
• Low Quiescent current: 5μA (typically)
• Push-Pull Active High RESET Output
• 240ms Power-On Reset Delay
• Reset Output Drive Current: 3mA
• 3-Pin SOT23-3 Package

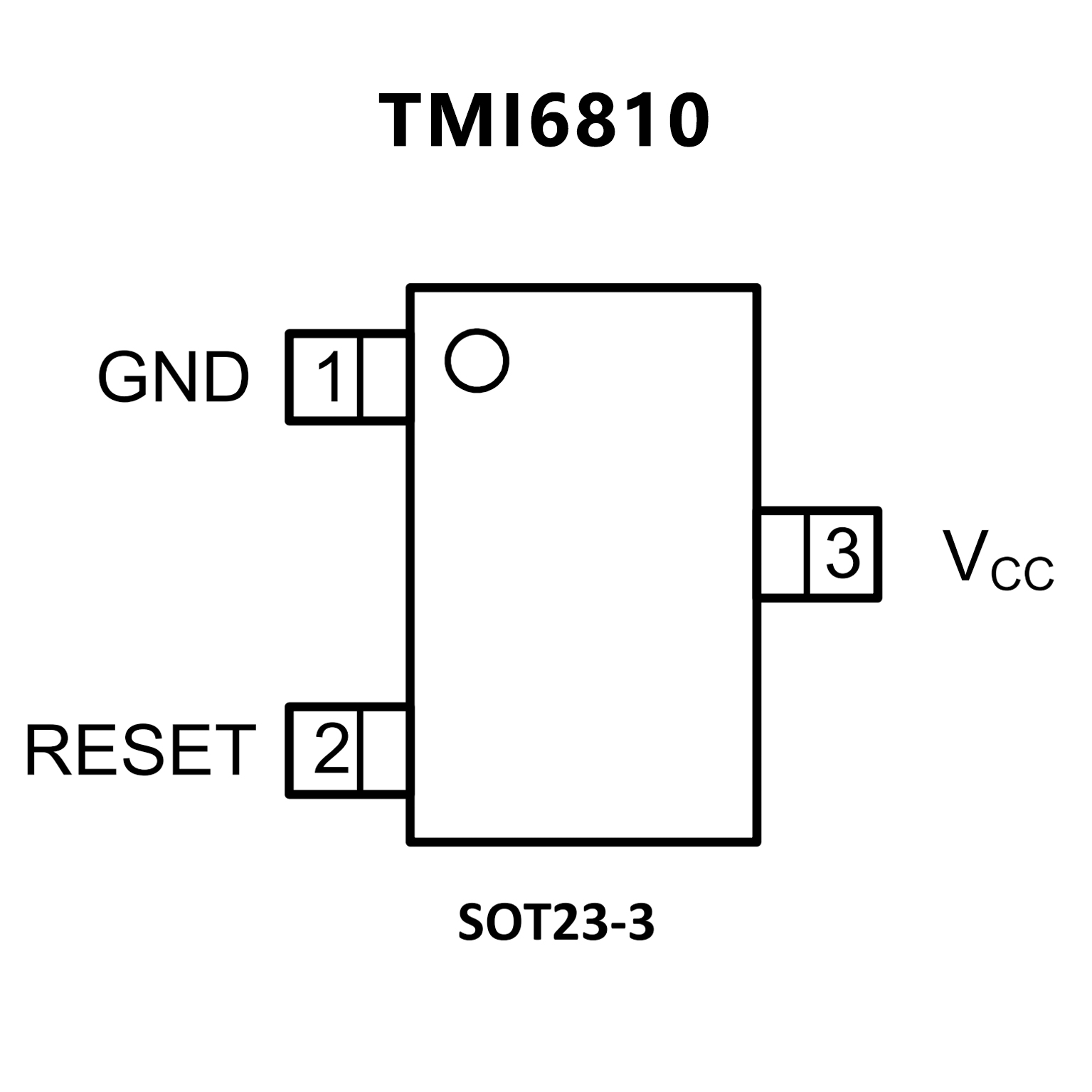

PIN CONFIGUTION
优势替代
FEATURES
• 3-Pin SOT23 Package
• Supply Current: 9 µA (Typical)
• Precision Supply Voltage Monitor:
2.5 V, 3 V, 3.3 V, 5 V
• Power-On Reset Generator with
Fixed Delay Time of 200 ms
• Pin-for-Pin Compatible with MAX810
• Temperature Range: –40°C to +125°C
• Push-Pull, RESET Output

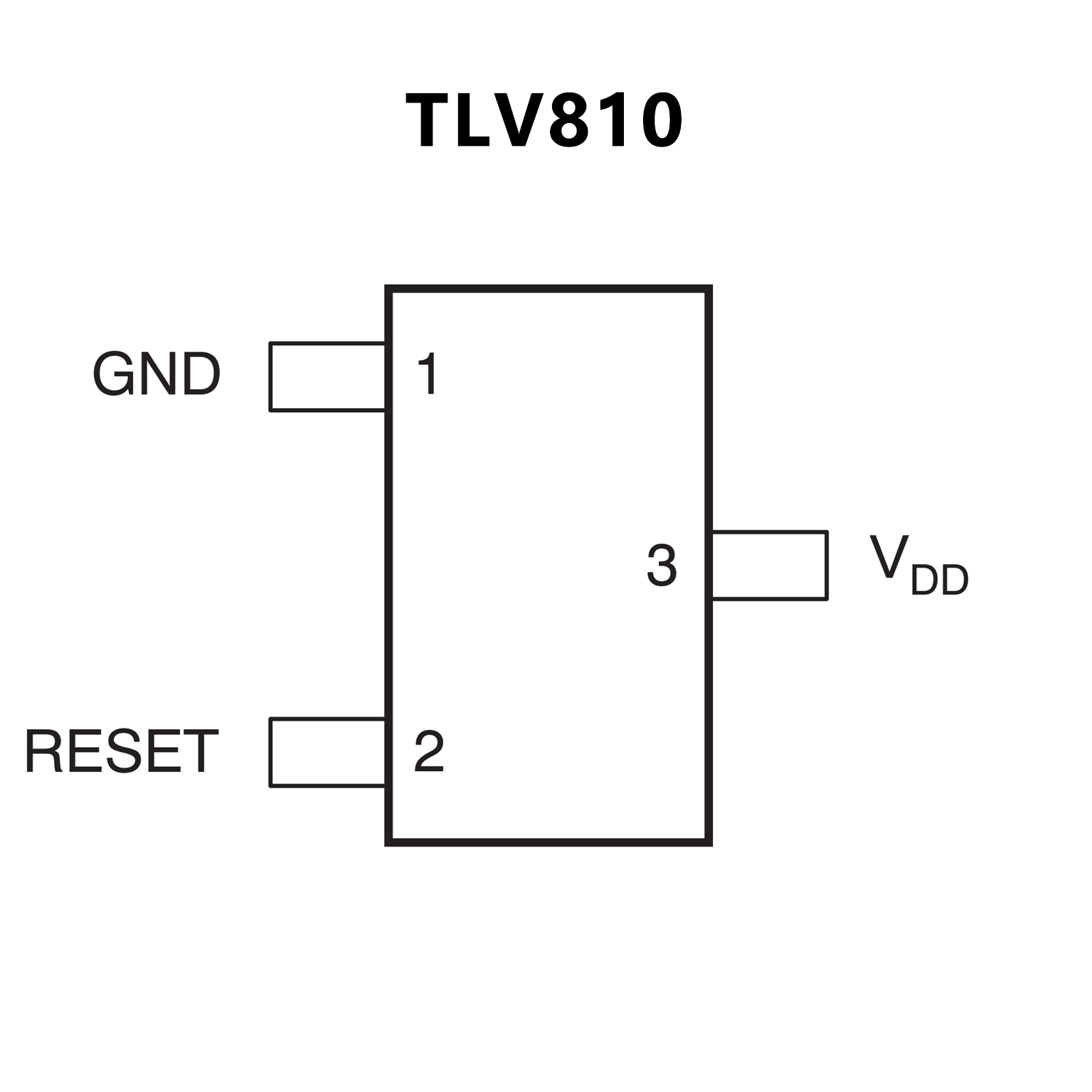

PIN CONFIGUTION
