USB Dedicated Charging Port Controller, TMI9130D Replace TPS2514A.
TMI9130D
TMI9130D.pdf
TMI9130D.pdfFEATURES
• Supports USB DCP Shorting D+ Line to D–
Line per USB Battery Charging Specification,
Revision 1.2 (BC1.2)
• Supports Shorted Mode (Shorting D+ Line to
D-Line) per Chinese Telecommunication
Industry Standard YD/T 1591-2009
• Supports USB DCP Applying 2.7V on D+ Line
and 2 .7V on D-line
• Supports USB DCP Applying 1.2V on D+ and
D–Lines
• Automatically Switch D+ and D- Lines
Connections for an Attached Device
• Single USB Port Controller(TMI9130D)
• Dual USB Port Controller(TMI9130C)
• Operating Range: 4.5 V to 5.5 V
• Available in SOT23-6 Package

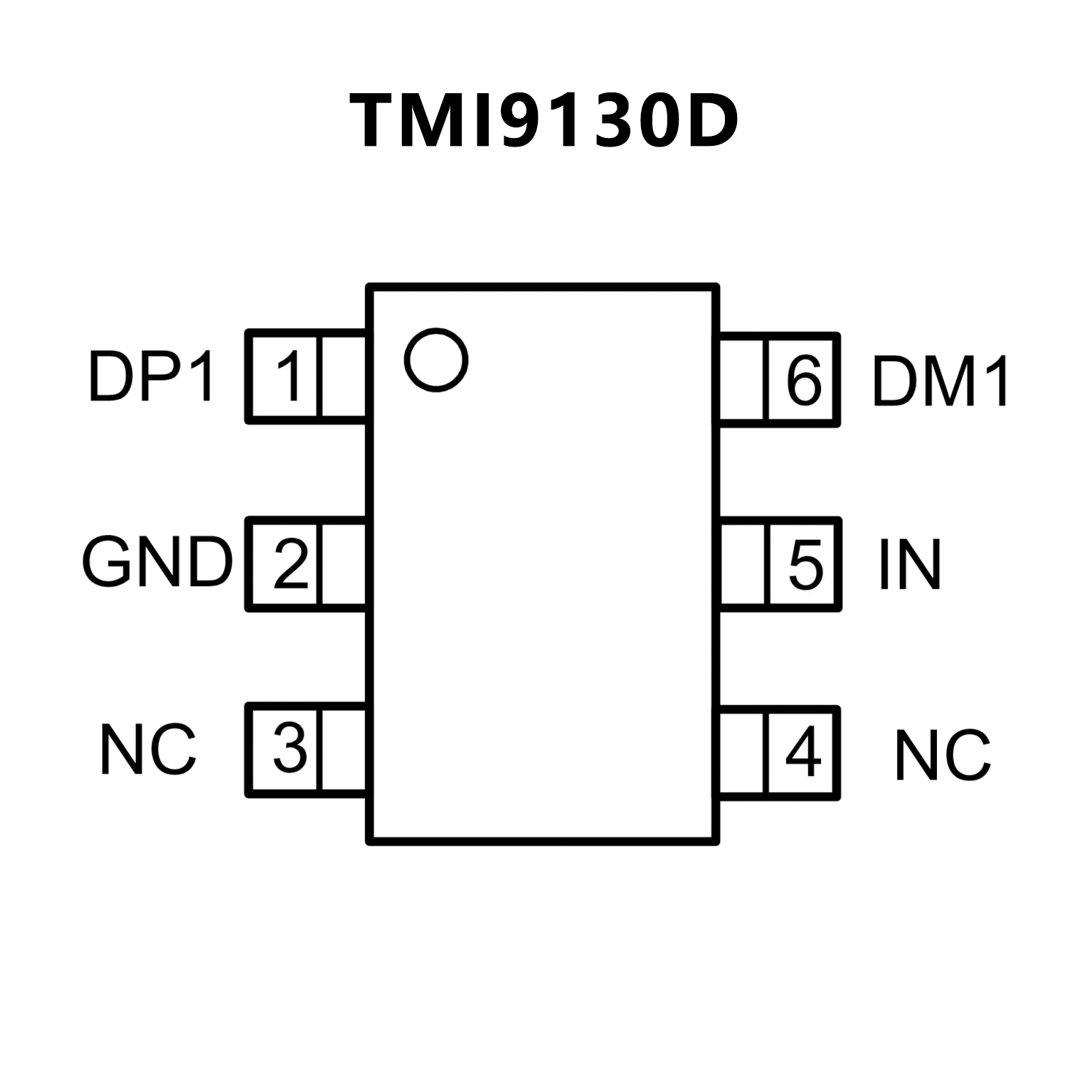

PIN CONFIGUTION
优势替代
FEATURES
• Supports USB DCP shorting D+ line to
D– line per USB battery charging specification,
revision 1.2 (BC1.2)
• Supports shorted mode (shorting D+ line to D–
line) per Chinese Telecommunication Industry
Standard YD/T 1591-2009
• Supports USB DCP applying 2.7V on D+ Line
and 2 V on D- line (or USB DCP applying 2V on
D+ line and 2.7 V on D– line) (TPS2513,TPS2514)
• Supports USB DCP applying 2.7V on D+ line and
2.7 V on D- line (TPS2513A, TPS2514A)
• Supports USB DCP applying 1.2V on D+ and D–Lines
• Automatically Switch D+ and D– Lines
Connections for an Attached Device
• Dual USB Port Controller (TPS2513, TPS2513A)
• Single USB port controller (TPS2514, TPS2514A)
• Operating range: 4.5 V to 5.5 V
• Available in SOT23-6 package

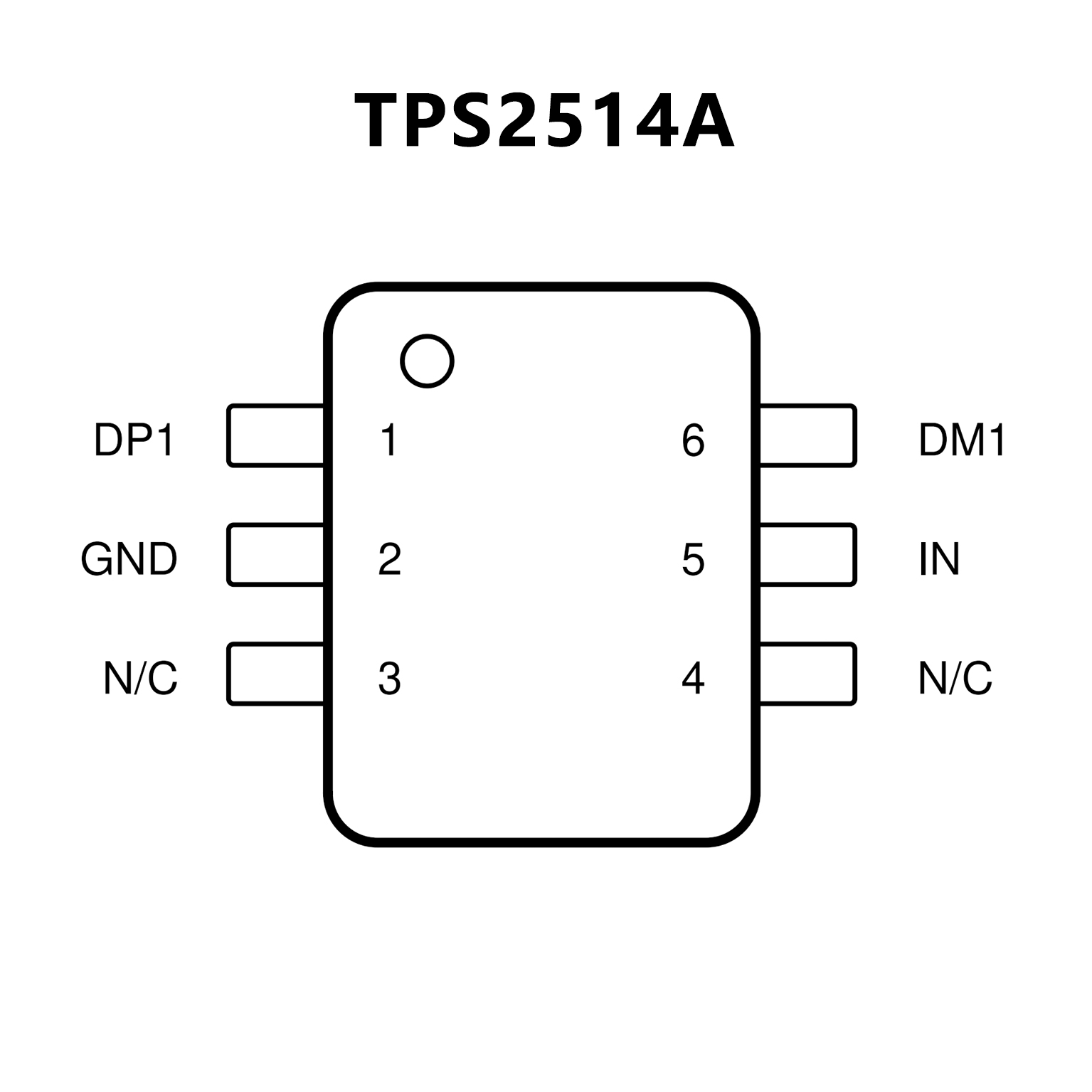

PIN CONFIGUTION
