Automotive Low Side GaN and MOSFET Driver For High Frequency and Narrow Pulse Applications, TMIS31025 P2P LMG1025.
TMIS31025.pdf优势替代
FEATURES
• AEC-Q100 grade 1 qualified
• 1.25-ns typical minimum input pulse width
• 2.6-ns typical rising propagation delay
• 2.9-ns typical falling propagation delay
• 300-ps typical pulse distortion
• Independent 7-A pull-up and 5-A pull-down current
• 650-ps typical rise time (220-pF load)
• 850-ps typical fall time (220-pF load)
• 2-mm x 2-mm QFN package
• Inverting and non-inverting inputs
• UVLO and over-temperature protection
• Single 5-V supply voltage

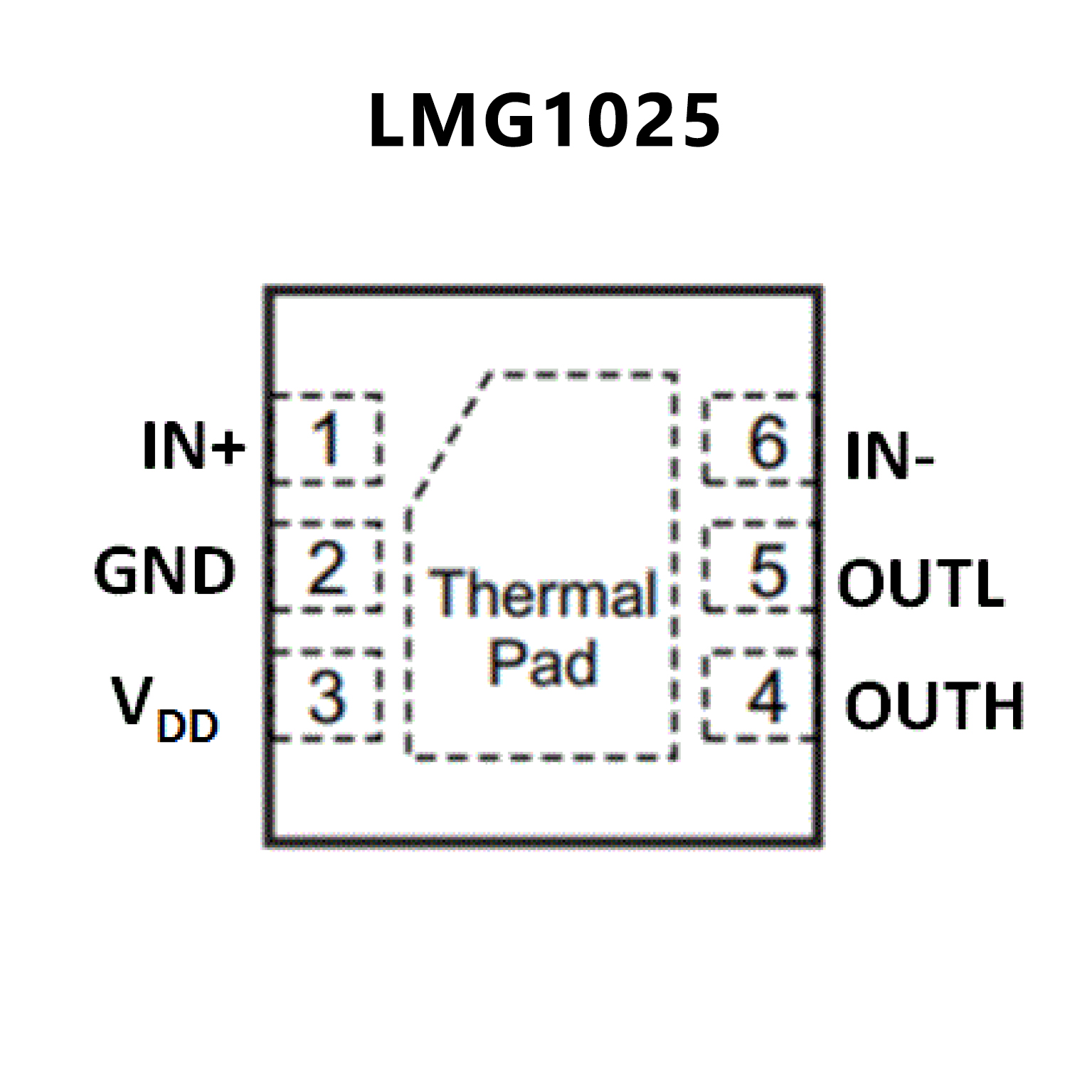

PIN CONFIGUTION
