Hex Inverter with Schmitt Trigger Inputs,74AHC14 Replace SN74HC14PWR.
74AHC14
74AHC14.pdf
74AHC14.pdfFEATURES
• Wide Operating Voltage Range: 2.0V to 5.5V
• Inputs Accept Voltages Higher than the Supply
Voltage
• +8mA/-8mA Output Current
• All Inputs with Schmitt Trigger Actions
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SOIC-14 Package
PIN CONFIGUTION
优势替代
FEATURES
• Buffered inputs
• Wide operating voltage range: 2 V to 6 V
• Wide operating temperature range: -40°C to +85°C
• Supports fanout up to 10 LSTTL loads
• Significant power reduction compared to LSTTL
logic ICs

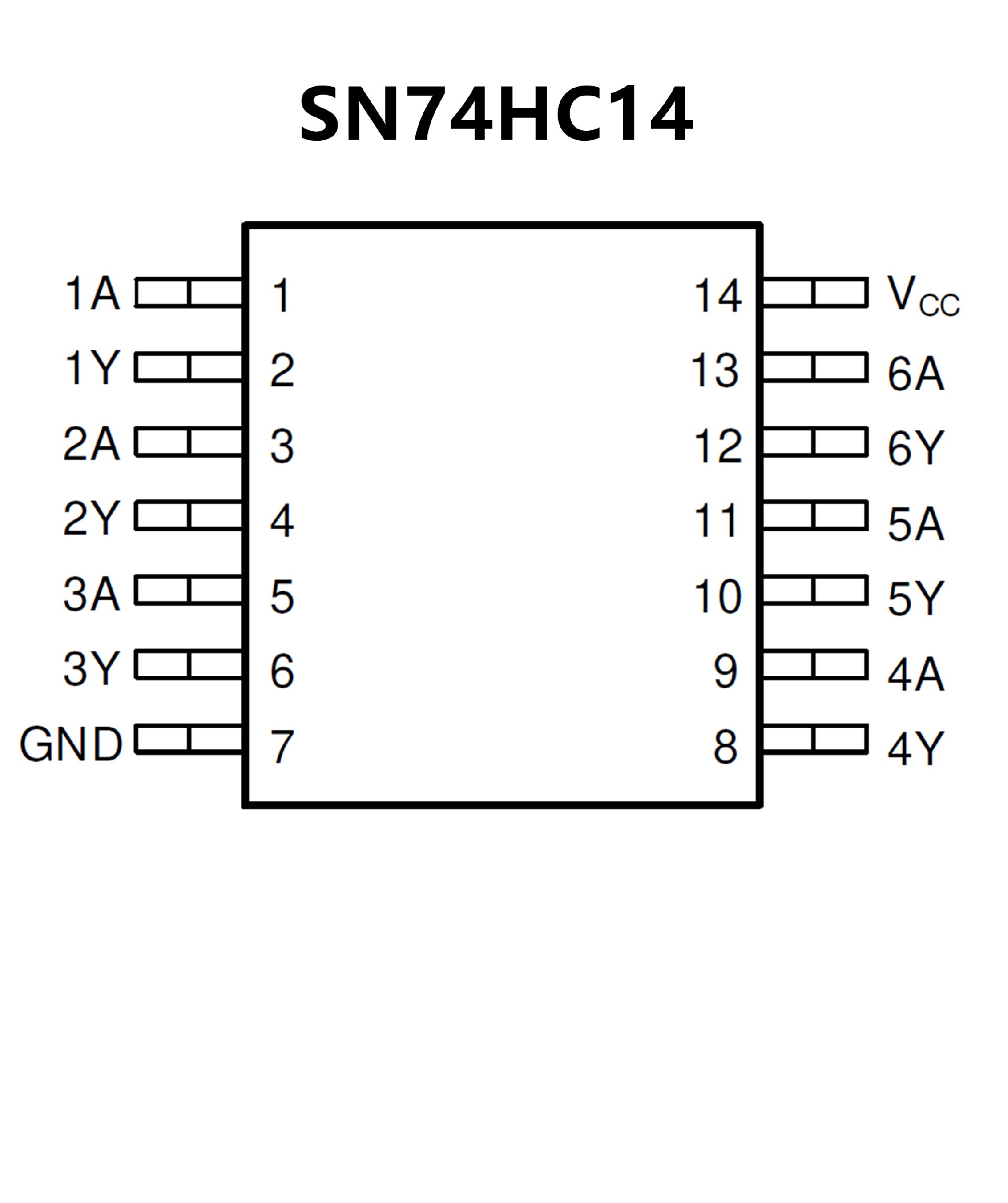

PIN CONFIGUTION
