74AVC8T245.pdf• VCCA Supply Voltage Range: 0.8V to 3.6V
• VCCB Supply Voltage Range: 0.8V to 3.6V
• Typical Data Rates:
380Mbit/s (≥ 1.8V to 3.3V Translation)
260Mbit/s (≥ 1.1V to 3.3V Translation)
260Mbit/s (≥ 1.1V to 2.5V Translation)
210Mbit/s (≥ 1.1V to 1.8V Translation)
150Mbit/s (≥ 1.1V to 1.5V Translation)
100Mbit/s (≥ 1.1V to 1.2V Translation)
• Suspend Mode
• Maximum 3.6V Input Voltage
• No Current for I/O Ports in Power-Down Mode
• -40℃ to +125℃ Operating Temperature Range

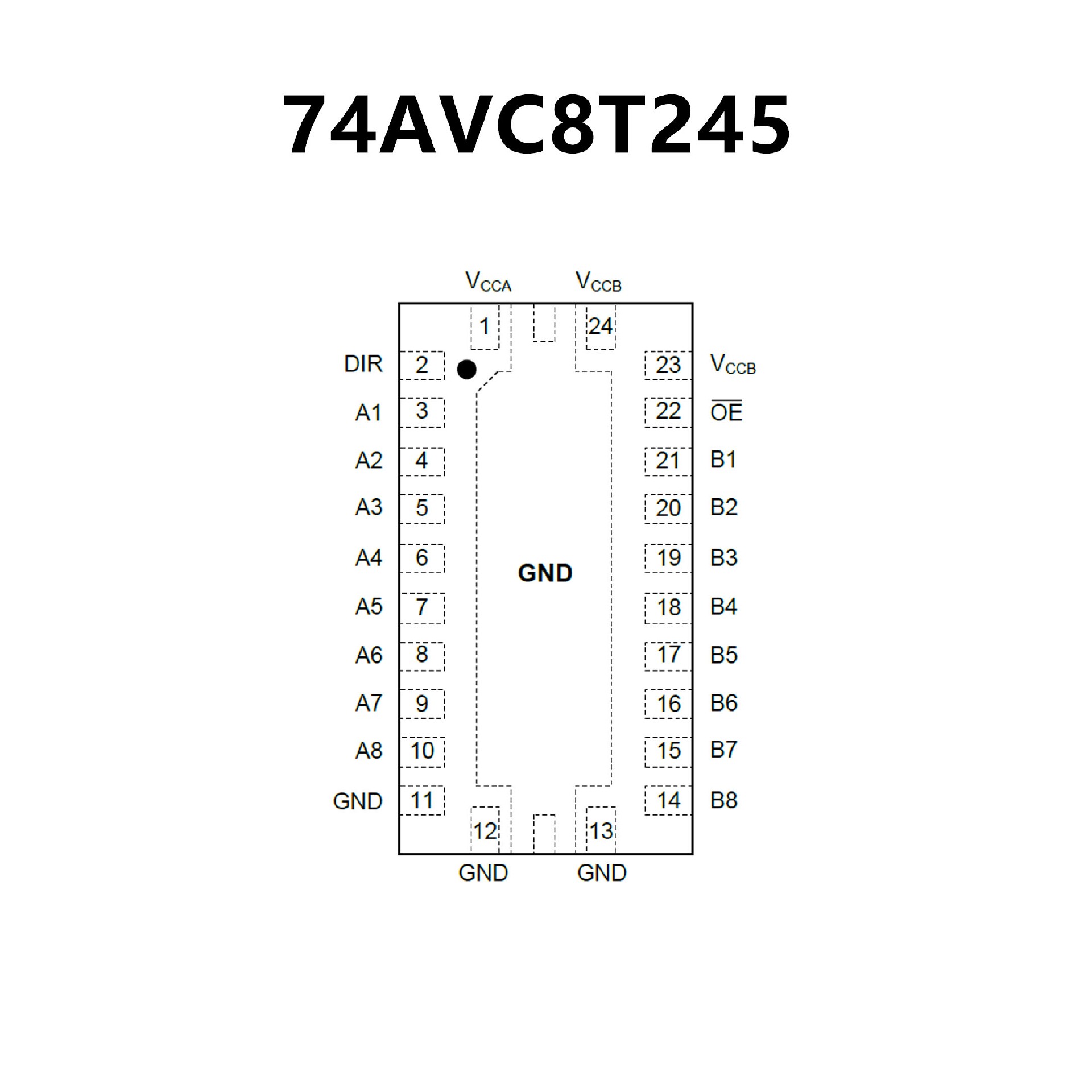

• Available in a Green TQFN-5.5×3.5-24L Package
• Latch-Up Performance Exceeds 100 mA Per
JESD 78, Class II
• ESD Protection Exceeds JESD 22
8000-V Human-Body Model (A114-A)
200-V Machine Model (A115-A)
1000-V Charged-Device Model (C101)
• Control Inputs VIH/VIL Levels Are Referenced to
VCCA Voltage
• VCC Isolation Feature – If Either VCC Input Is at
GND, All I/O Ports Are in the High-ImpedanceState
• Ioff Supports Partial Power-Down Mode Operation
• Fully Configurable Dual-Rail Design Allows Each
Port to Operate Over the Full 1.4-V to 3.6-V
Power-Supply Range
• I/Os Are 4.6-V Tolerant
• Maximum Data Rates
170 Mbps (VCCA < 1.8 V or VCCB < 1.8 V)
320 Mbps (VCCA ≥ 1.8 V and VCCB ≥ 1.8 V)
