High-Precision Low Voltage Detector,BL8506 Replace R3111.
BL8506
BL8506.pdf
BL8506.pdfFEATURES
• High-precision detection Voltage：±2%
• Detection Voltage：0.9V~6.0V (in 0.1V
steps)
• Precise hysteresis：4% typ.
• Operating Voltage range：0.7V~10V
• Ultra-low current consumption：
500nAtyp. (at VDD＝3.0V)
• Two Output Forms ：CMOS(Active Low)
and N-channel open-drain(Active Low)
PIN CONFIGUTION
优势替代
FEATURES
• Supply CurrentTyp. 0.8µA (-VDET＝1.5V, VDD＝-VDET-0.1V)
• Operating Voltage Range0.7V to 10.0V (Ta＝25℃)
• Detector Threshold Range0.9V to 6.0V (0.1V steps)
(For other voltages, please refer to MARK INFORMATIONS.)
• Detector Threshold Accuracy±2.0%
• Temperature-Drift Coefficient of Detector ThresholdTyp.±100ppm/℃
• Output TypesNch Open Drain “L”, Nch Open Drain “H”, and CMOS
• PackagesSON1612-6, SC-82AB, SC-88A, SOT-23-3, SOT-23-5, SOT-89, TO-92

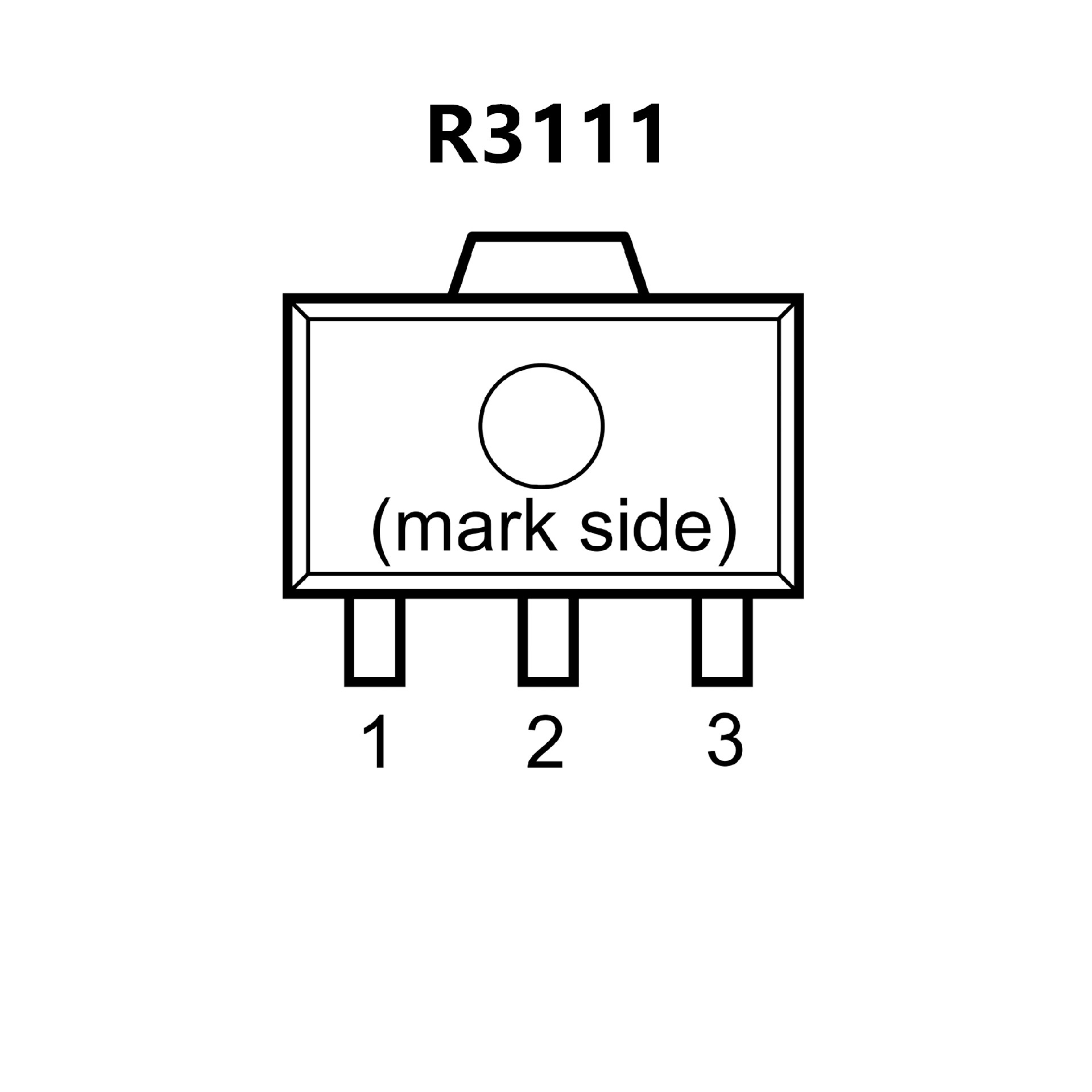

PIN CONFIGUTION
