10W Inductor Free Stereo Audio Amplifier with Low EMI and AGC, EUA2385A Replace BL6356.
EUA2385A
EUA2385A.pdf
EUA2385A.pdfFEATURES
• Wide Supply Voltage: 4.5V to 16V
• Enhanced Modulation Scheme Reduces EMI Emission
• 10-W/ch into an 6-Ω Load From a 12-V Supply
• 10-W/ch into an 8-Ω Load From a 13-V Supply
• Differential Inputs or Single-Ended input
• Speaker Protection Circuitry
• Four Selectable,Gain Setting
• Auto Gain Control Function(AGC )
• Thermal and Short-Circuit Protection
• 28-pin TSSOP Package with Thermal Pad
• RoHS compliant and 100% lead(Pb)-free
Halogen-Free

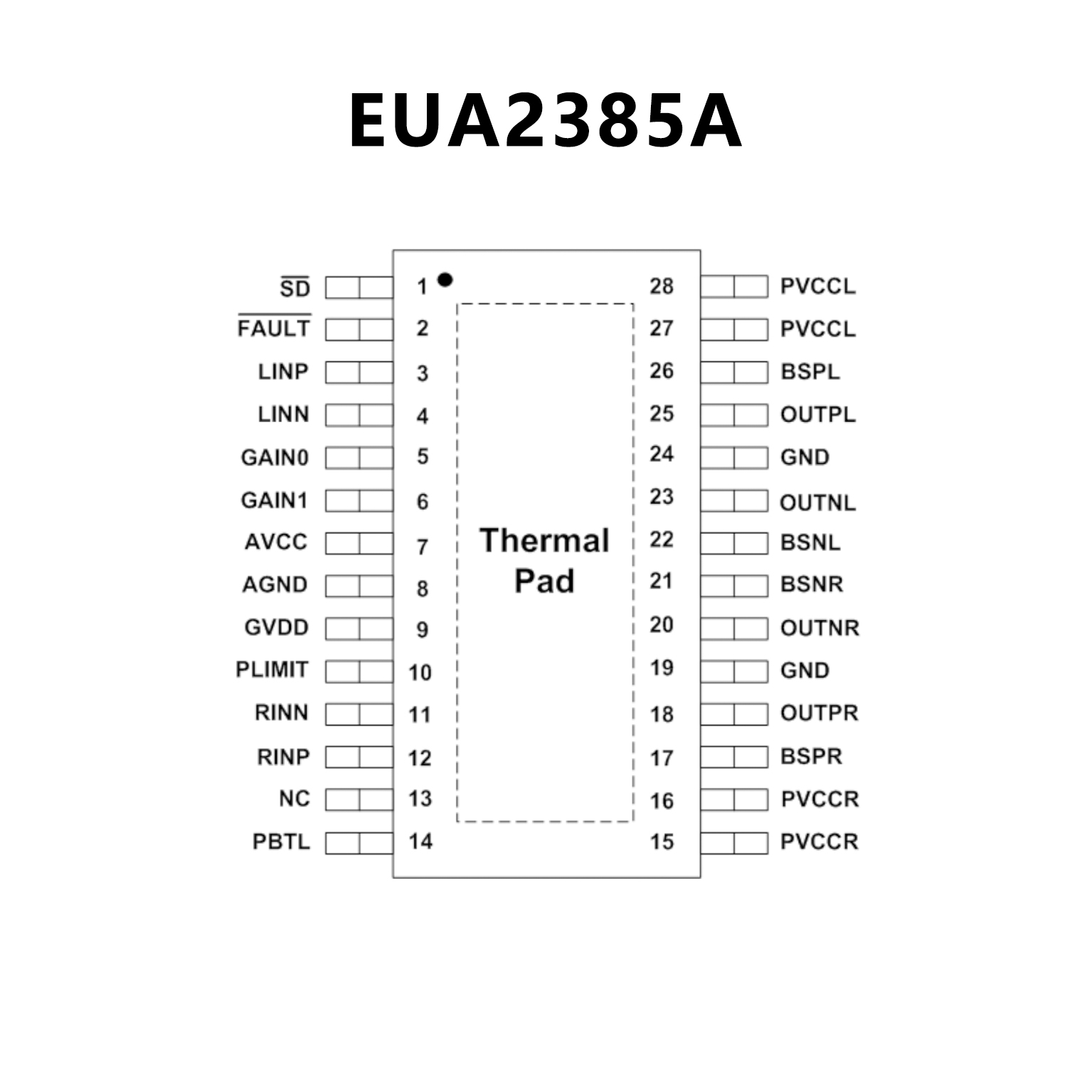

PIN CONFIGUTION
优势替代
FEATURES
• 输出功率 2*10W（12V, RL=8Ω, THD+N=10%）
• 4阶可选增益控制
• 宽电压工作范围：4V-12V
• 高效率（88%@RL=8Ω,Po=4W）
• 过流、过温保护
• ETSSOP28封装

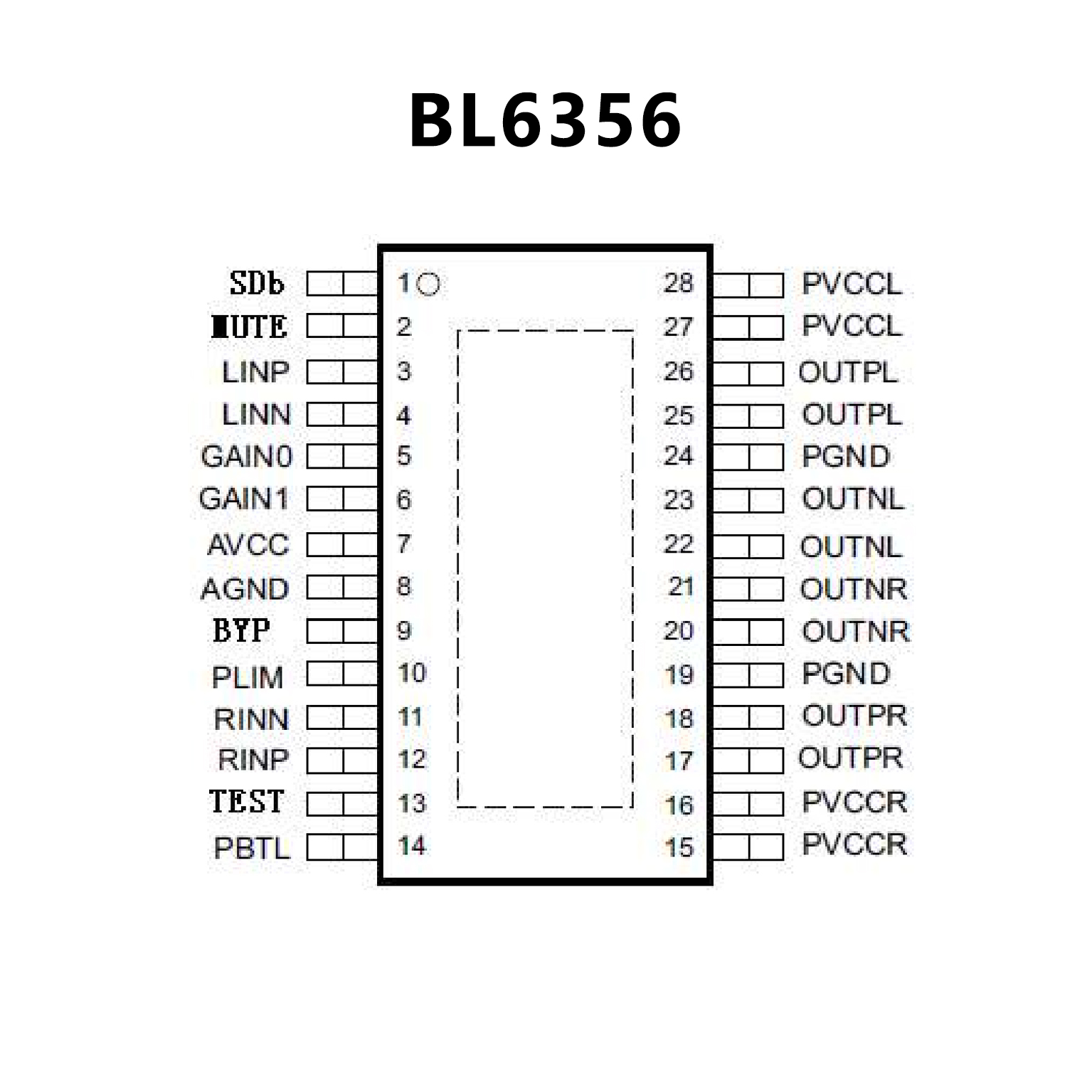

PIN CONFIGUTION
