EUP3265.pdf• 2.7V to 5.5V Input Voltage Range
• 3MHz Constant Switching Frequency
• 5A Available Load Current
• I2C Control Interface with Dynamic Voltage
Scaling Support
• Programmable Output Voltage: 0.6V to 1.4V in
6.25mV Steps
• Small size, 0.33µH or 0.47µH Inductor Solution
• 52µA Typical Quiescent Current
• PFM/PWM Operation for Optimum Increased
Efficiency
• Excellent Load and Line Transient Response
• Short Circuit and Thermal Protection

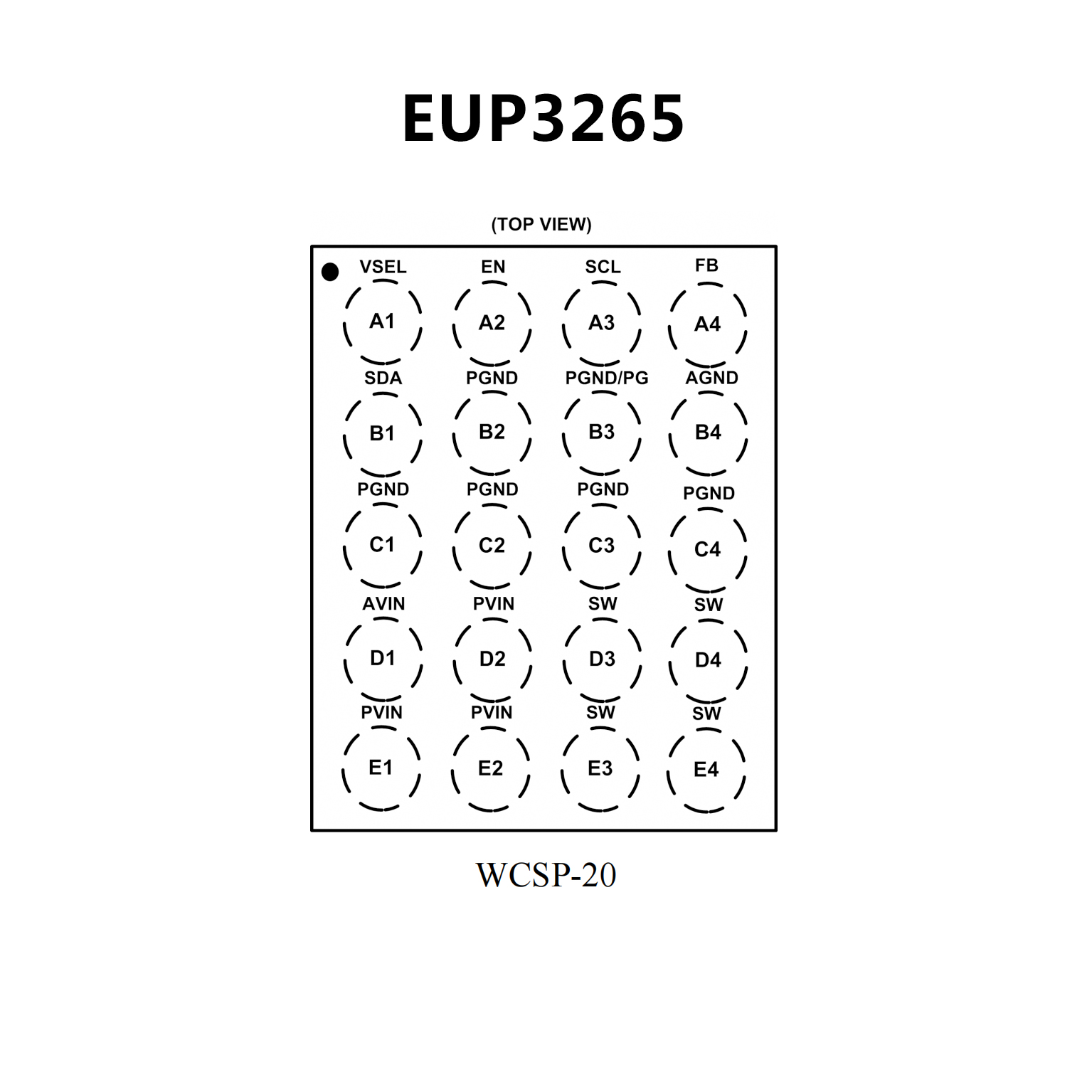

• Available in 2.0mm×1.6mm WCSP-20 Package
• RoHS Compliant and 100% Lead(Pb)-Free
Halogen-Free
• Input Voltage Range from 2.3 V to 5.5 V: Battery and 5 V Rail
Powered Applications
• Programmable Output Voltage: 0.6 V to 1.4 V in 6.25 mV
Steps
• Modular Output Stage Drive Strength for Increased Efficiency
Depending on the Output Current
• 3 MHz Switching Frequency with on Chip Oscillator
• Uses 470 nH Inductor and 2 x 22 µF Capacitors for
Optimized Footprint and Solution Thickness
• PFM/PWM Operation for Optimum Increased Efficiency
• Low 35 µA Quiescent Current
• I2C Control Interface with Interrupt and Dynamic Voltage
Scaling Support
• Enable Pins, Power Good/Fail Signaling
• Thermal protections and Temperature Management
• Transient Load Helper: Share the Same Rail with Another
DCDC

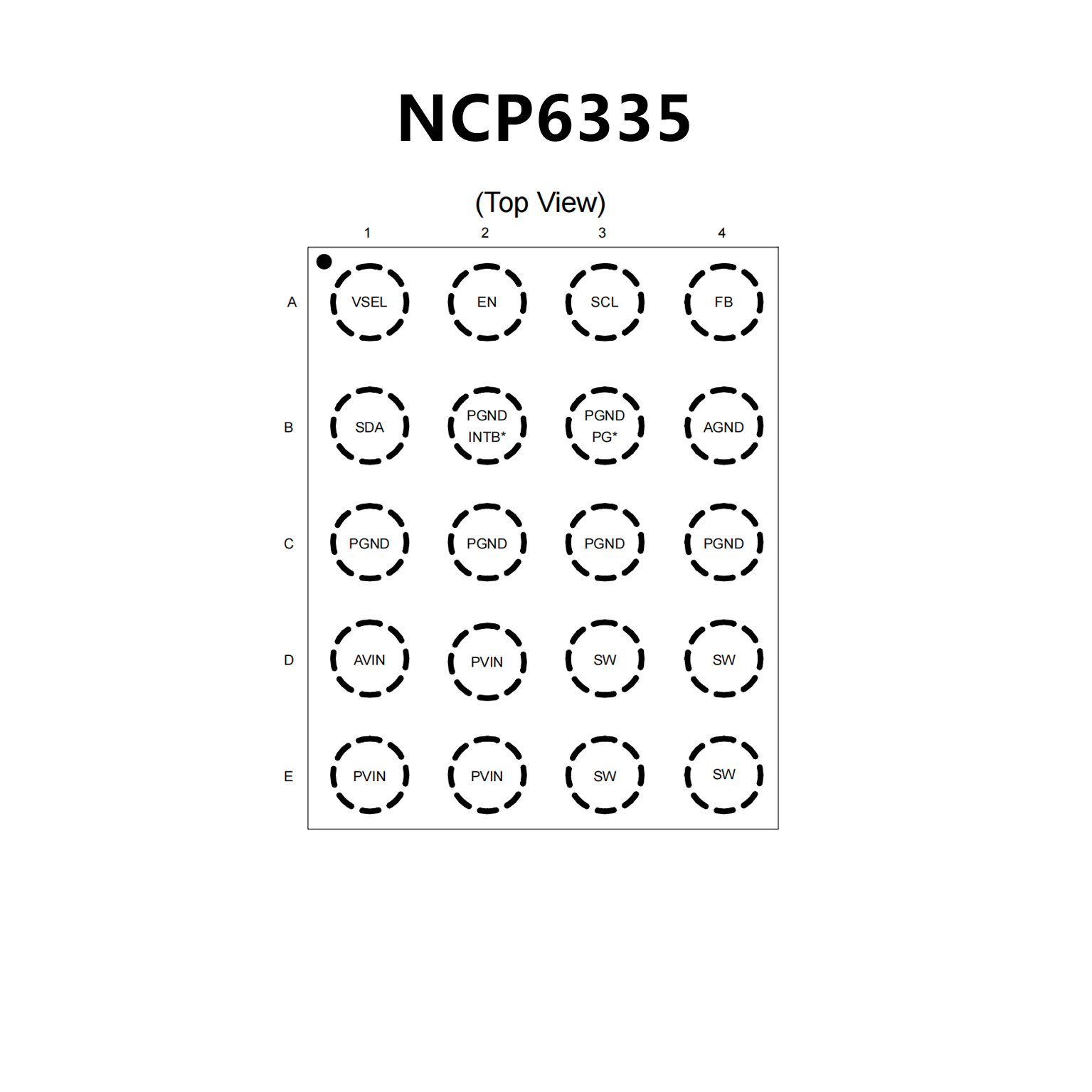

• Small 2.0 x 1.6 mm / 0.4 mm pitch CSP Package
• These are Pb−Free Devices
