4-Bit 100 Mb/s Configurable Dual-Supply Level Translator, PI4ULS3V304 Replace NLVSX5004.
PI4ULS3V304
PI4ULS3V304.pdf
PI4ULS3V304.pdfFEATURES
• 0.85V to 2.7V on A Port and 1.35V to 3.6V on B Port
• VCCA may be greater than, equal to, or less than VCCB
• High-Speed with 140 Mb/s Guaranteed Date Rate
• 100 pF Capacitive Drive Capability
• Low Bit-to-Bit Skew
• Overvoltage Tolerant Enable and I/O Pins
• Non-preferential Power-Up Sequencing
• Power-Off Protection
• Package: UQFN1.7x2.0-12L

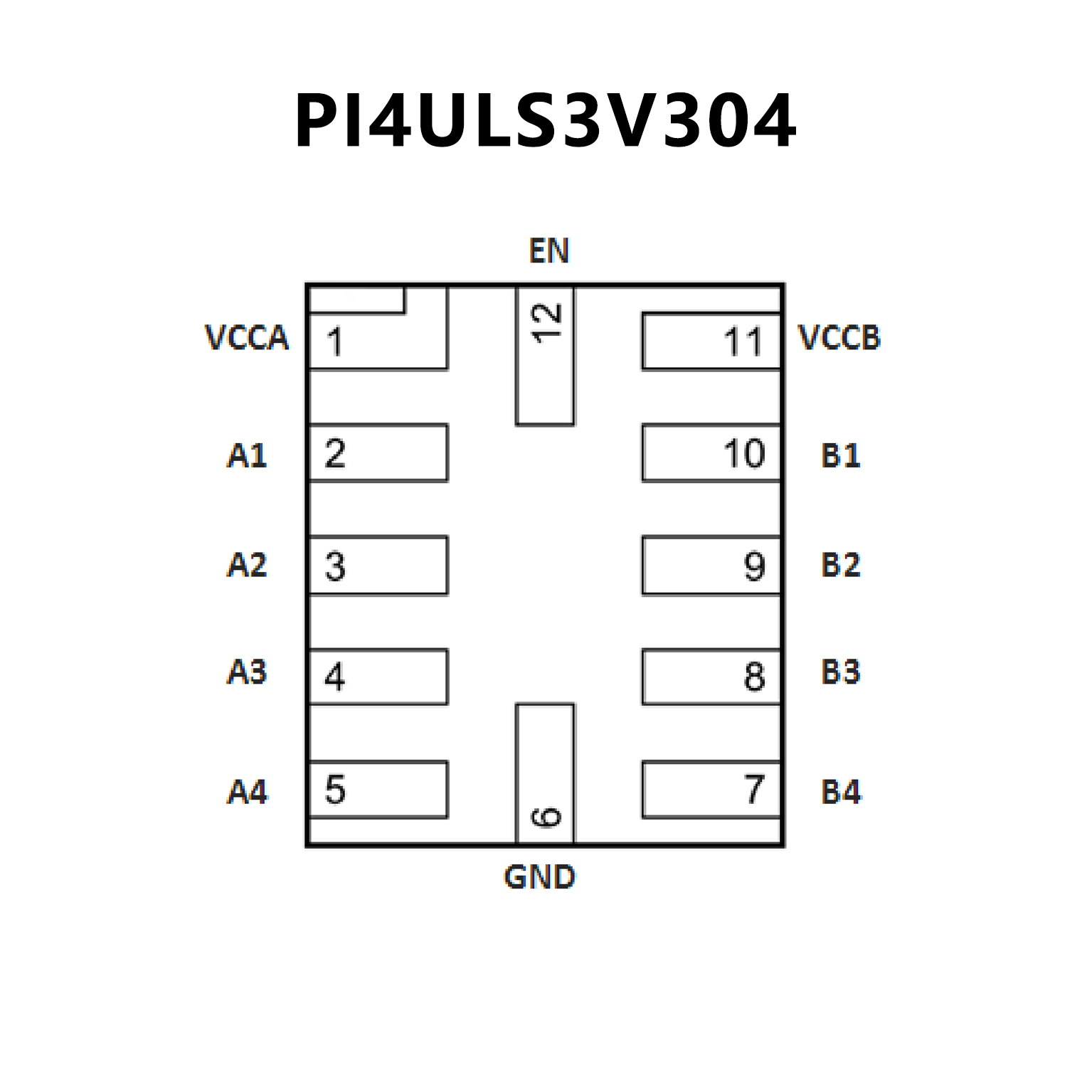

PIN CONFIGUTION
优势替代
FEATURES
• Wide VCCA, VCCB Operating Range: 0.9 V to 3.6 V
• VCCA and VCCB are independent
− VCCA may be greater than, equal to, or less than VCCB
• High 100 pF Capacitive Drive Capability
• High−Speed w/ 140 Mbps Guaranteed Date Rate for VCCA,
VCCB > 1.8 V
• Low Bit−to−Bit skew
• Overvoltage Tolerant Enable and I/O Pins
• Non−preferential Power−Up Sequencing
• Partial Power−Off Protection
• Available packaging:
UQFN−12, SOIC14, TSSOP14, QFN−14, Other packages
• NLV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q100
Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and
RoHS Compliant

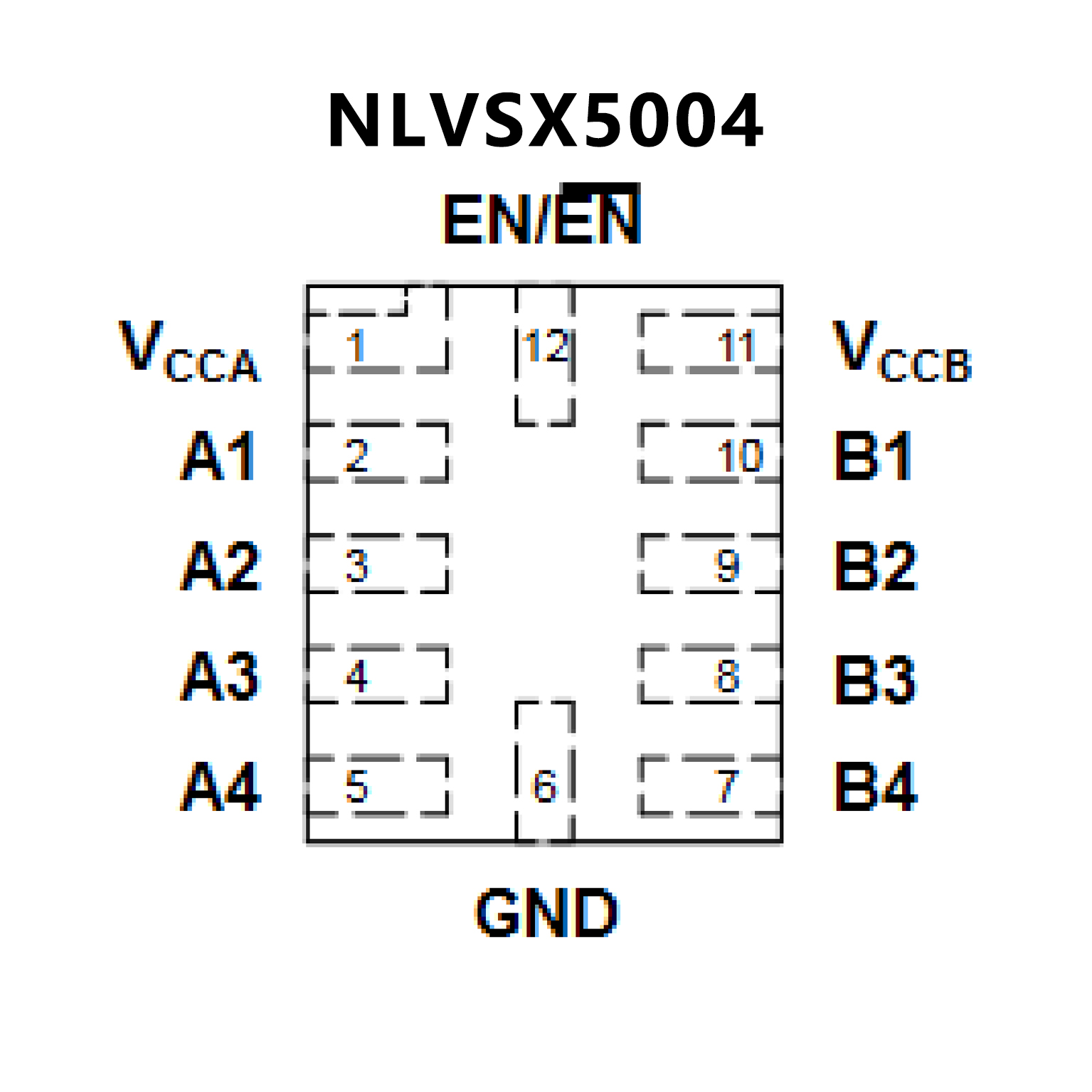

PIN CONFIGUTION
