Low Voltage Dual SPDT Analog Switch, PI5A23157 Replace TS5A23157.
PI5A23157
PI5A23157.pdf
PI5A23157.pdfFEATURES
• CMOS Technology for Bus and Analog Applications
• Low propagation delay
• Low typical On-Resistance
• Signal passing bandwidth,220 MHz
• Wide Vpp Range: 1.65V to 5.5V
• Rail-to-Rail Signal Range
• High Off Isolation: -65dB @ 10MHz
• Crosstalk Rejection Reduces Signal Distortion:
-66dB @ 10MHz
• Break-Before-Make Switching
• Extended Industrial Temperature Range:
-40°Cto 125°C
• ESD protection :2kV(HBM)
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free “Green” Device (Note 3)
• For automotive applications requiring specific change
control
• Packaging (Pb-free & Green):
10-pin UQFN (ZUA),2mm x 1.5mm
10-pin MSOP (U), 3mm x 3mm

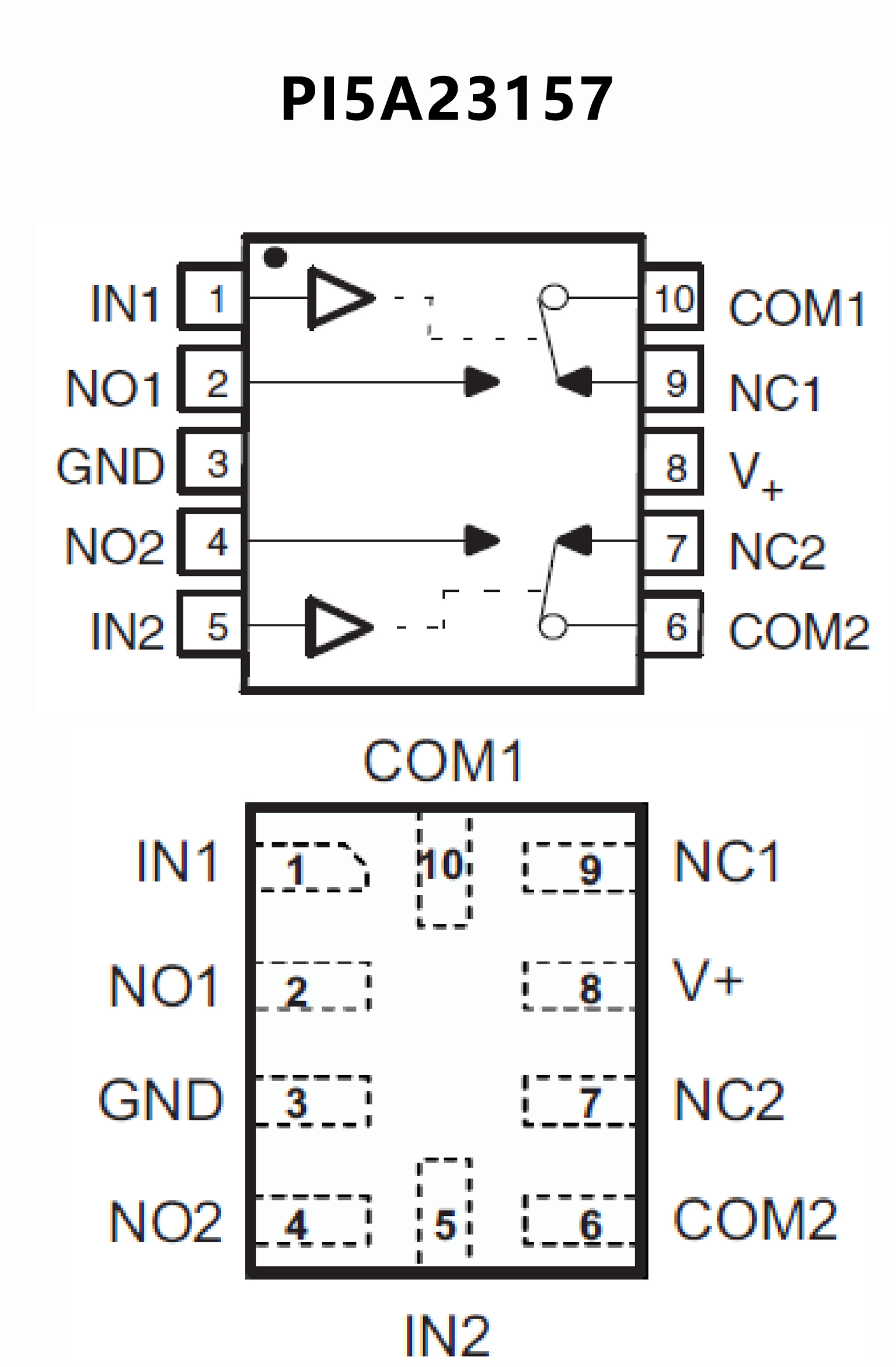

PIN CONFIGUTION
优势替代
FEATURES
• Low ON-State Resistance (15 Ω at 125℃)
• 125℃ Operation
• Control Inputs are 5-V Tolerant
• Specified Break-Before-Make Switching
• Low Charge Injection
• Excellent ON-Resistance Matching
• Low Total Harmonic Distortion
• 1.8-V to 5.5-V Single-Supply Operation
• Latch-Up Performance Exceeds 100 mA Per
JESD 78, Class II
• ESD Performance Tested Per JESD 22
– 2000-V Human-Body Model
(A114-B, Class II)
– 1000-V Charged-Device Model (C101)

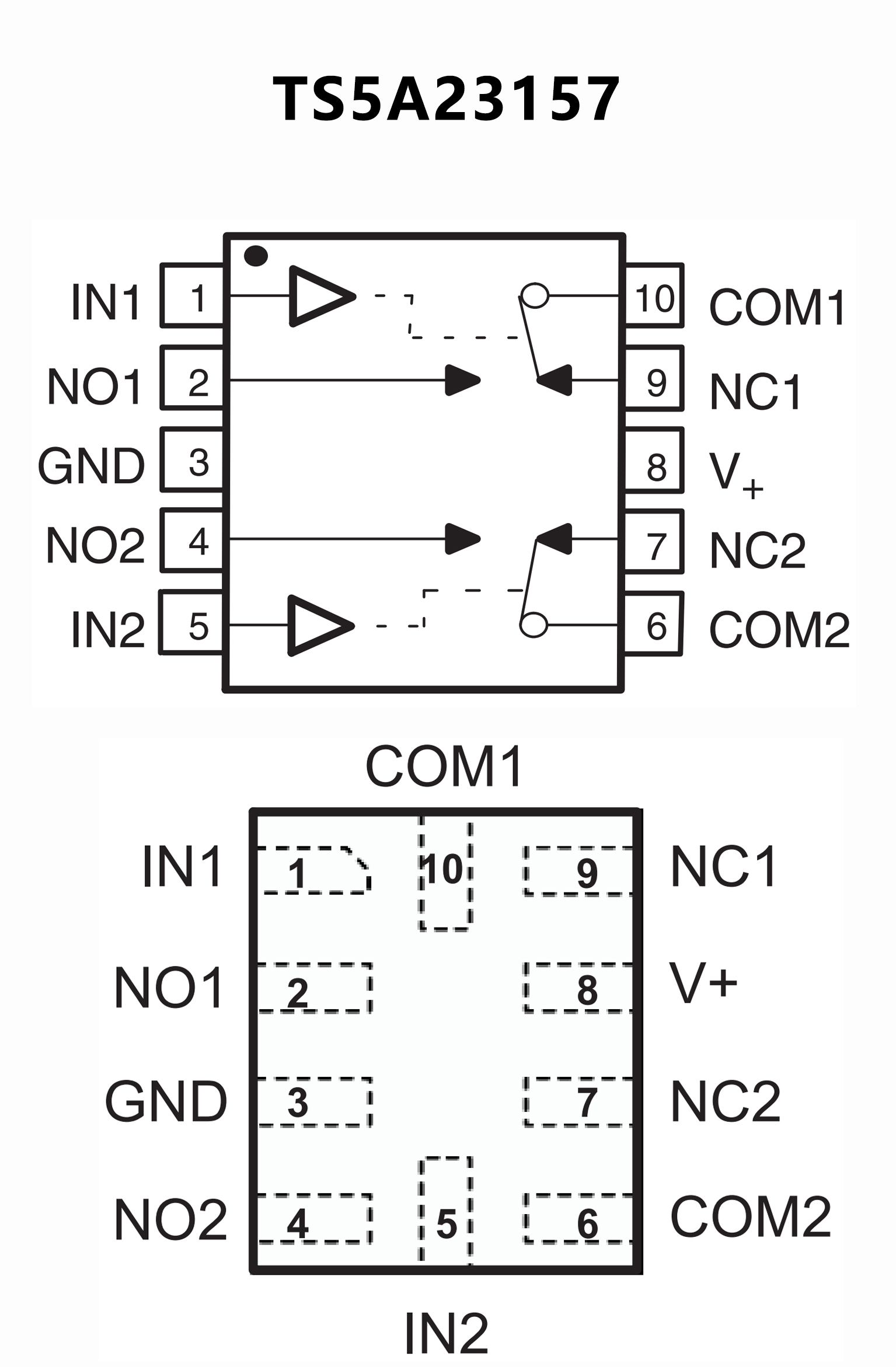

PIN CONFIGUTION
