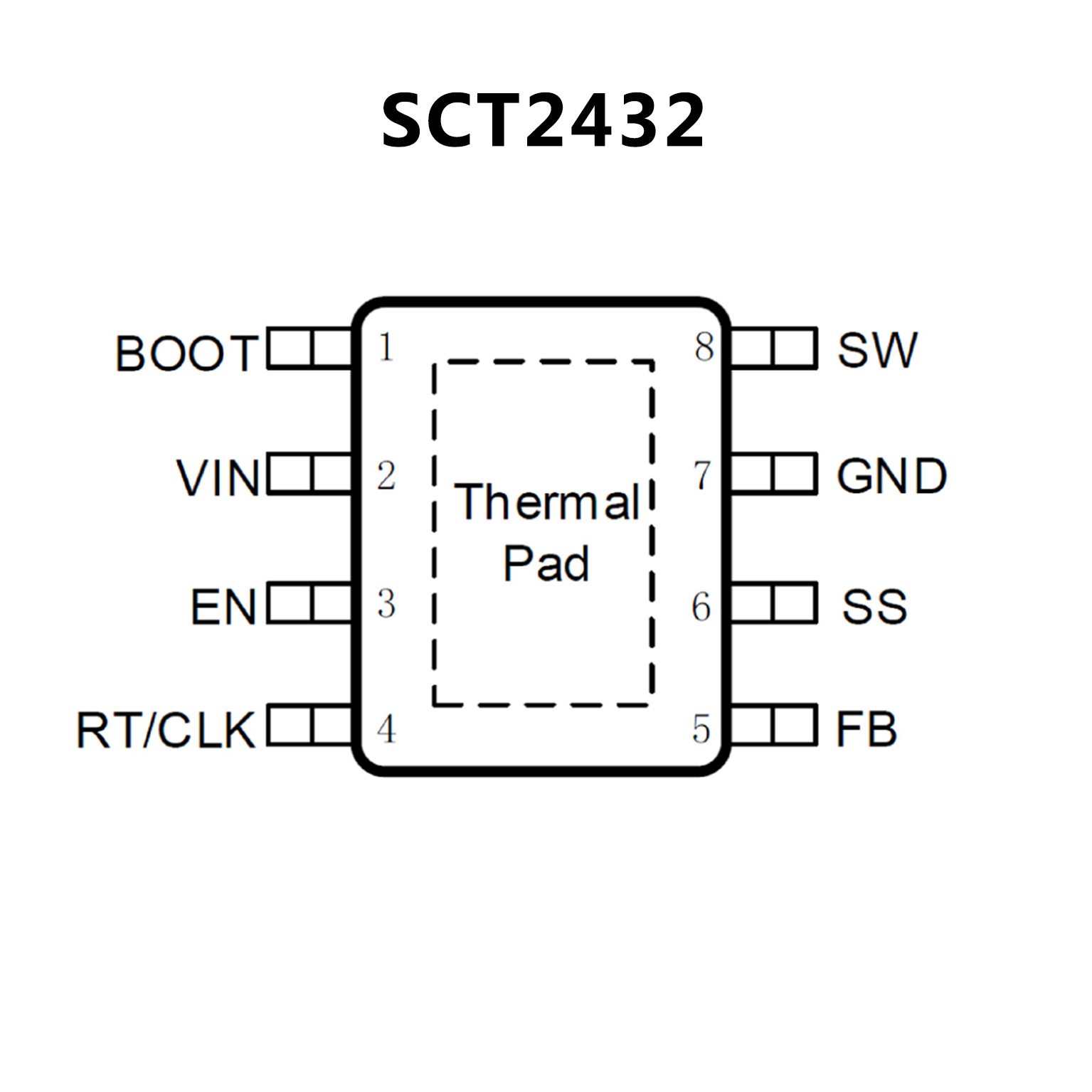

SCT2432.pdf• Wide Input Range: 3.8V-40V
• Up to 3.5A Continuous Output Current
• 0.8V ±1% Feedback Reference Voltage
• Integrated 80mΩ High-Side and 50mΩ Low-Side Power MOSFETs
• Pulse Skipping Mode (PSM)
• 25uA Quiescent Current in Sleep Mode
• 100ns Minimum On-time
• Programmable Soft-start Time
• Adjustable Frequency 300KHz to 2.2MHz
• External Clock Synchronization
• Frequency Spread Spectrum (FSS) Modulation for EMI Reduction
• Low Dropout Mode Operation
• Derivable Inverting Voltage Regulator

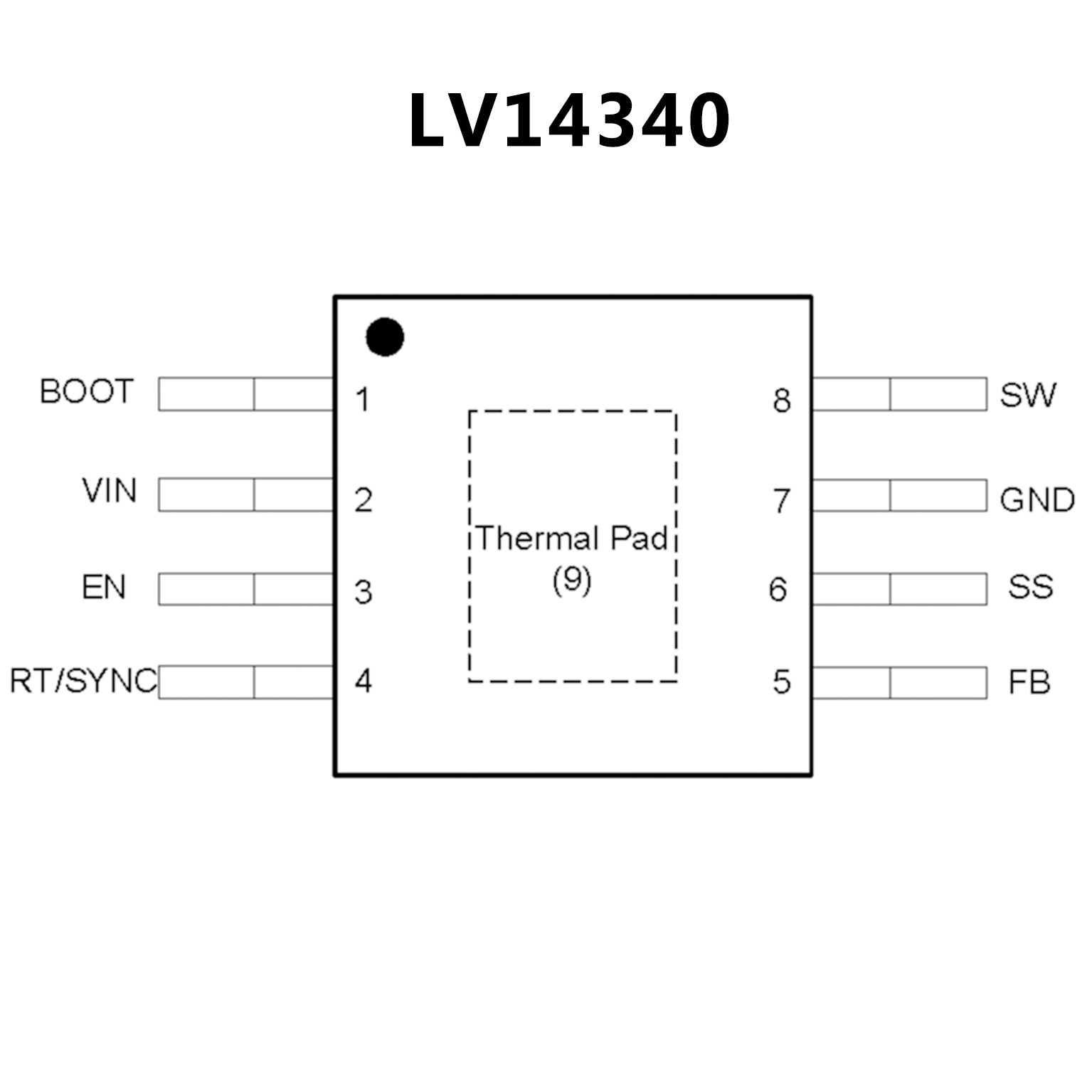

• 4V to 40V Input Range
• 3.5 A Continuous Output Current
• 100 mΩ High-Side MOSFET
• Minimum On Time: 100ns
• Current Mode Control
• Adjustable Switching Frequency from 200 kHz to 2MHz
• Frequency Synchronization to External Clock
• Internal Compensation for Ease of Use
• High Duty Cycle Operation Supported
• Precision Enable Input
• 1 μA Shutdown Current
• External Soft-start dissipation
• Thermal, Overvoltage and Short Protection
• 8-Pin SOIC with PowerPAD™ Package
