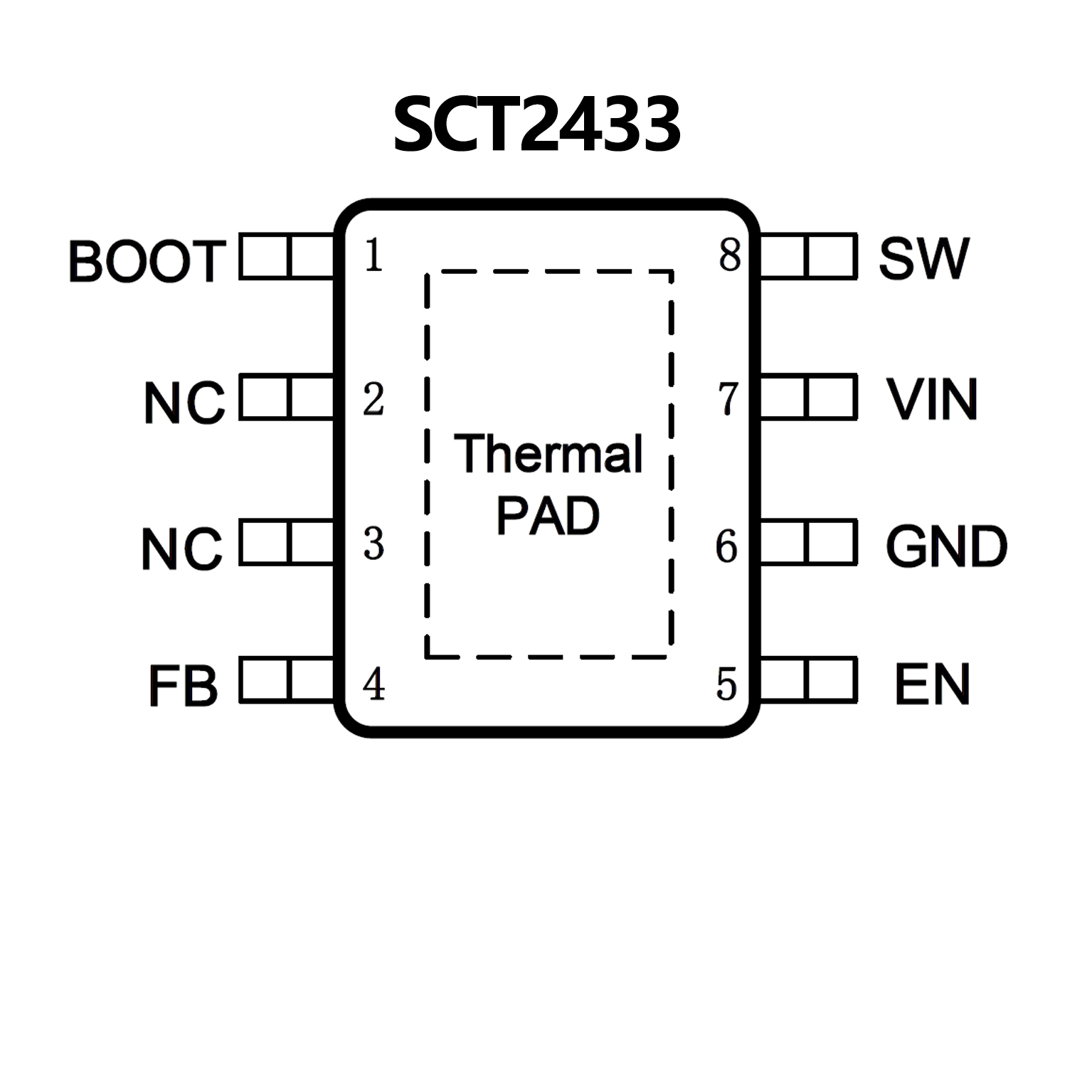

SCT2433.pdf• Wide Input Range: 3.8V-40V
• Up to 3.5A Continuous Output Current
• 0.8V ±1% Feedback Reference Voltage
• Integrated 80mΩ High-Side and 50mΩ Low-Side
Power MOSFETs
• Pulse Skipping Mode PSM with 25uA Quiescent
Current in Sleep Mode
• Fixed Frequency 570kHz
• 100ns Minimum On-time
• 2ms Internal Soft-start Time
• Frequency Spread Spectrum FSS Modulation for
EMI Reduction
• Precision Enable Threshold for Programmable
UVLO Threshold and Hysteresis
• Low Dropout Mode Operation
• Derivable Inverting Voltage Regulator
• Over-voltage and Over Temperature Protection
• Available in an ESOP-8 Package

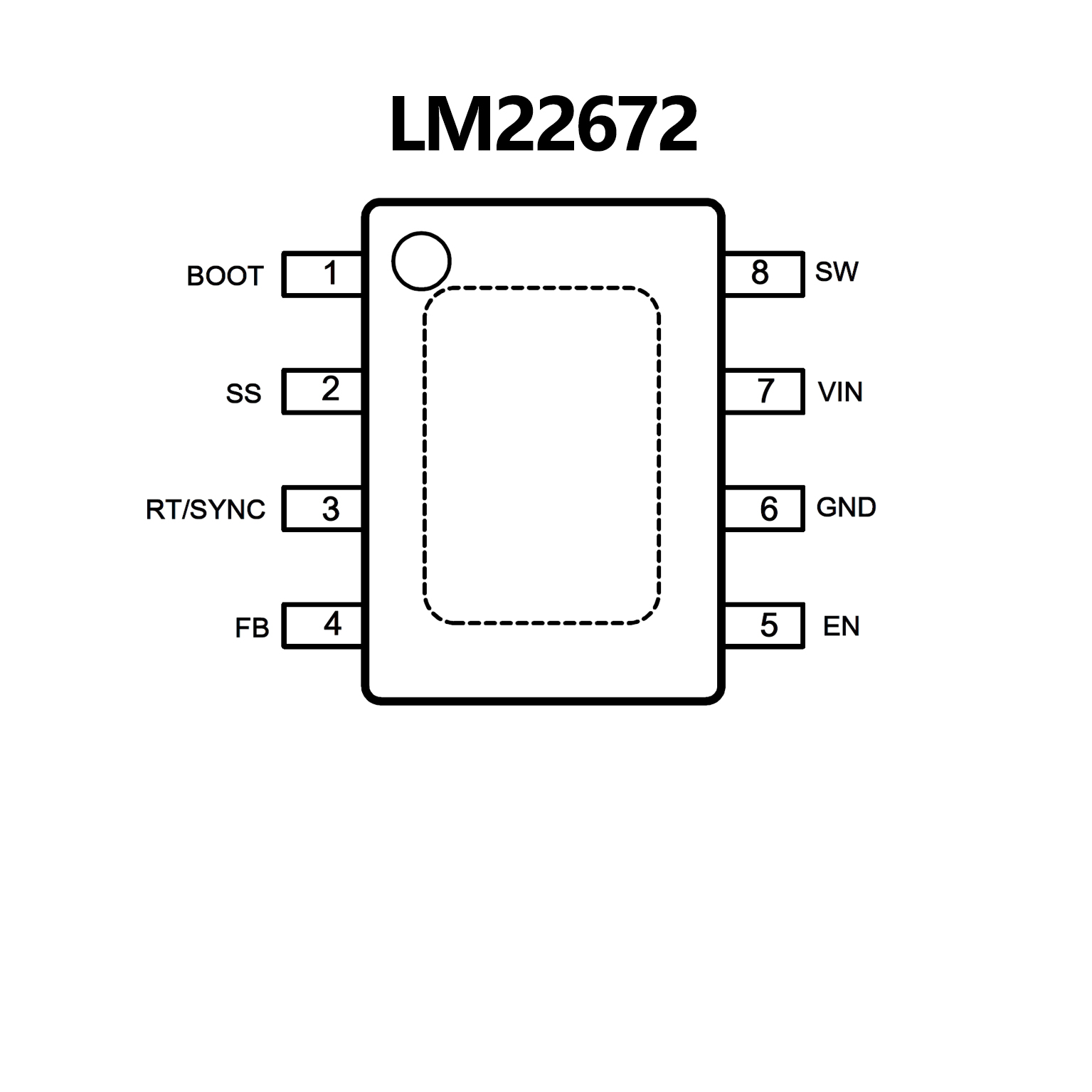

• Wide Input Voltage Range: 4.5 V to 42 V
• Internally Compensated Voltage Mode Control
• Stable with Low ESR Ceramic Capacitors
• 200 mΩ N-Channel MOSFET
• Output Voltage Options:
ADJ (Outputs as Low as 1.285 V)
5.0 (Output Fixed to 5 V)
• ±1.5% Feedback Reference Accuracy
• 500 kHz Default Switching Frequency
• Adjustable Switching Frequency and Synchronization
• –40°C to 125°C Junction Temperature Range
• Precision Enable Input
• Integrated Boot-Strap Diode
• Adjustable Soft-Start
• Fully WEBENCH® Enabled
• LM22672-Q1 is an Automotive Grade Product
that is AEC-Q100 Grade 1 Qualified (–40°C to
125°C Junction Temperature)
• SO PowerPAD (Exposed Pad)
