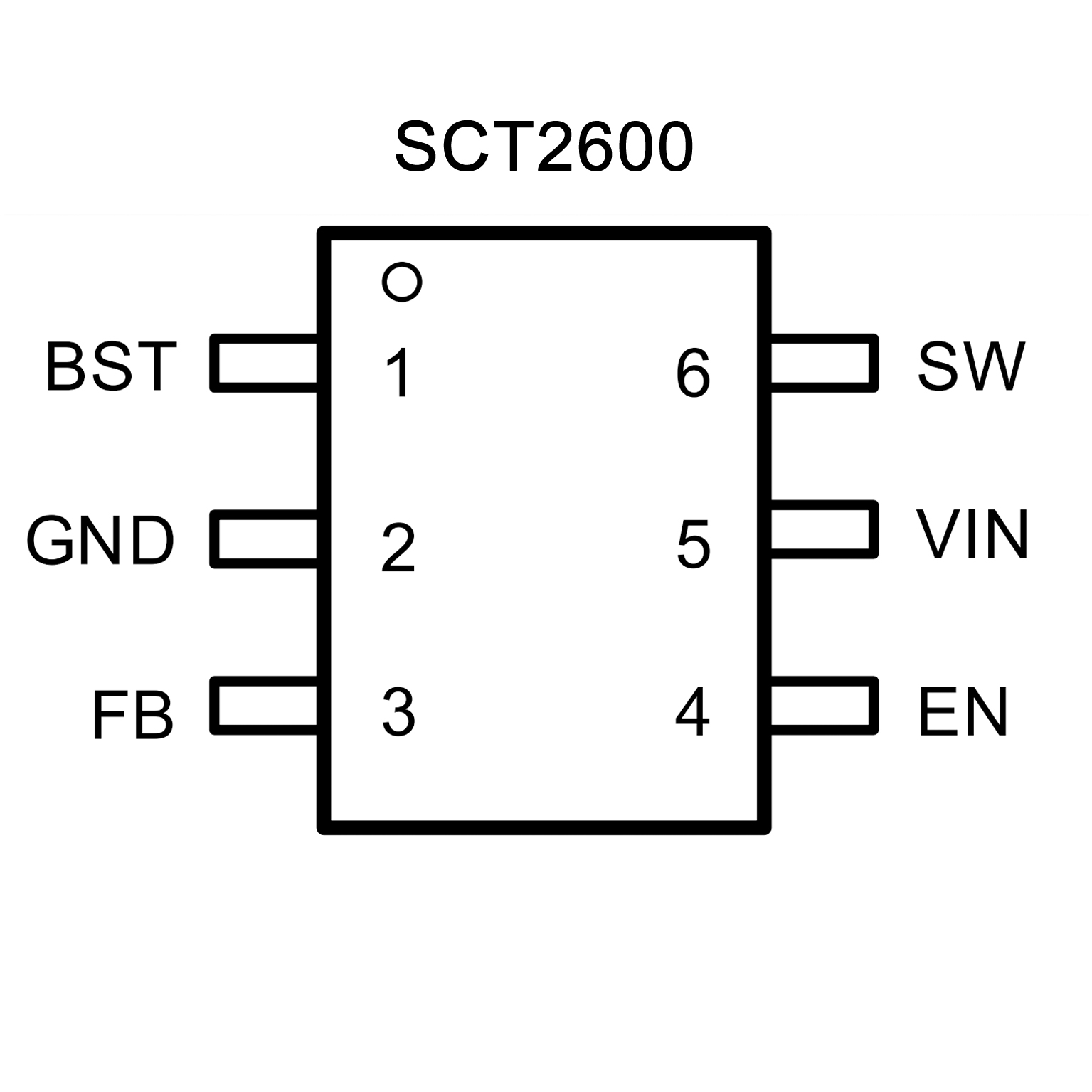

SCT2600.pdf•Wide Input Range: 4.5V-60V
•Continuous Output Current: 0.6A
•0.765V ±2.5% Feedback Reference Voltage
• Integrated 500mΩ High-Side
• Low Quiescent Current: 80uA · Pulse Skipping Mode (PSM) in light load
• 80ns Minimum On-time
• 6ms Internal Soft-start Time
• Internal compensation
• Switching Frequency 2.1MHz
• Precision Enable Threshold for Programmable
Input Voltage Under-Voltage Lock Out Protection
(UVLO) Threshold and Hysteresis
• Low Dropout Mode Operation
• Over-voltage and Over-Temperature Protection
• Available in an TSOT23-6L Package
• Ultra Low 28 µA Standby Current in ECO Mode
• Input Voltage Range 4 V to 60 V
• 1 µA Shutdown Current
• High Duty Cycle Operation Supported
• Output Current up to 600 mA
• 0.7 MHz and 2.1 MHz Switching Frequency
• Internal Compensation
• High Voltage Enable Input
• Internal Soft Start
• Over Current Protection
• Over Temperature Protection
• Small Overall Solution Size (SOT-6L Package)

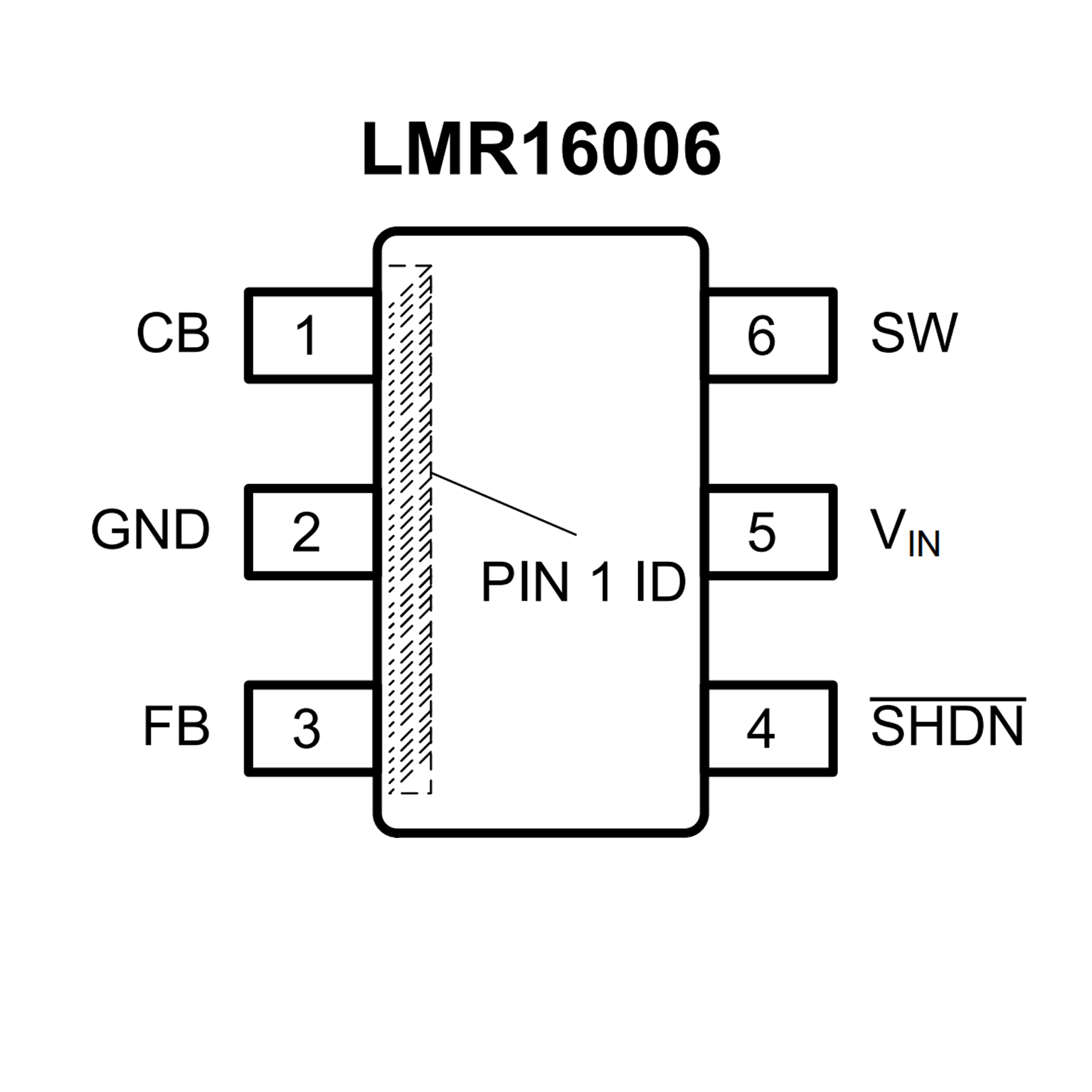

• Create a Custom Design Using the LMR16006
with the WEBENCH Power Designer
