60V Input, 100mA Output Current, Low Quiescent Current LDO, SCT71601A00Q Replace TPS79801-Q1.
SCT71601A00Q
SCT71601A00Q.pdf
SCT71601A00Q.pdfFEATURES
• Qualified for Automotive Applications
• AEC-Q100 Qualified with the Following Results:
• - Device Temperature Grade 1: -40°C to 125°C
• Wide Input Range: 3V-60V
• Maximum Output Current: 100mA
• Adjustable Voltage: 1.2V-30V
• Output Voltage Accuracy:
- TJ = 25℃ : ±1%
- TJ = -40℃~ 125℃ : ±2%
• Low Quiescent Current: 4 uA
• Ultra-Low Shutdown Current: 0.23uA
• Low Dropout Voltage ：
- 60mV at 20mA load current
- 340mV at 100mA load current
• 720us Internal Soft-start Time
• Integrated Short-Circuit Protection with OCFB
(Over Current Fold-back) Feature
• Enable pin is available
• Over-Temperature Protection
• Active Output Discharge
• Available Package: eMSOP3x3-8

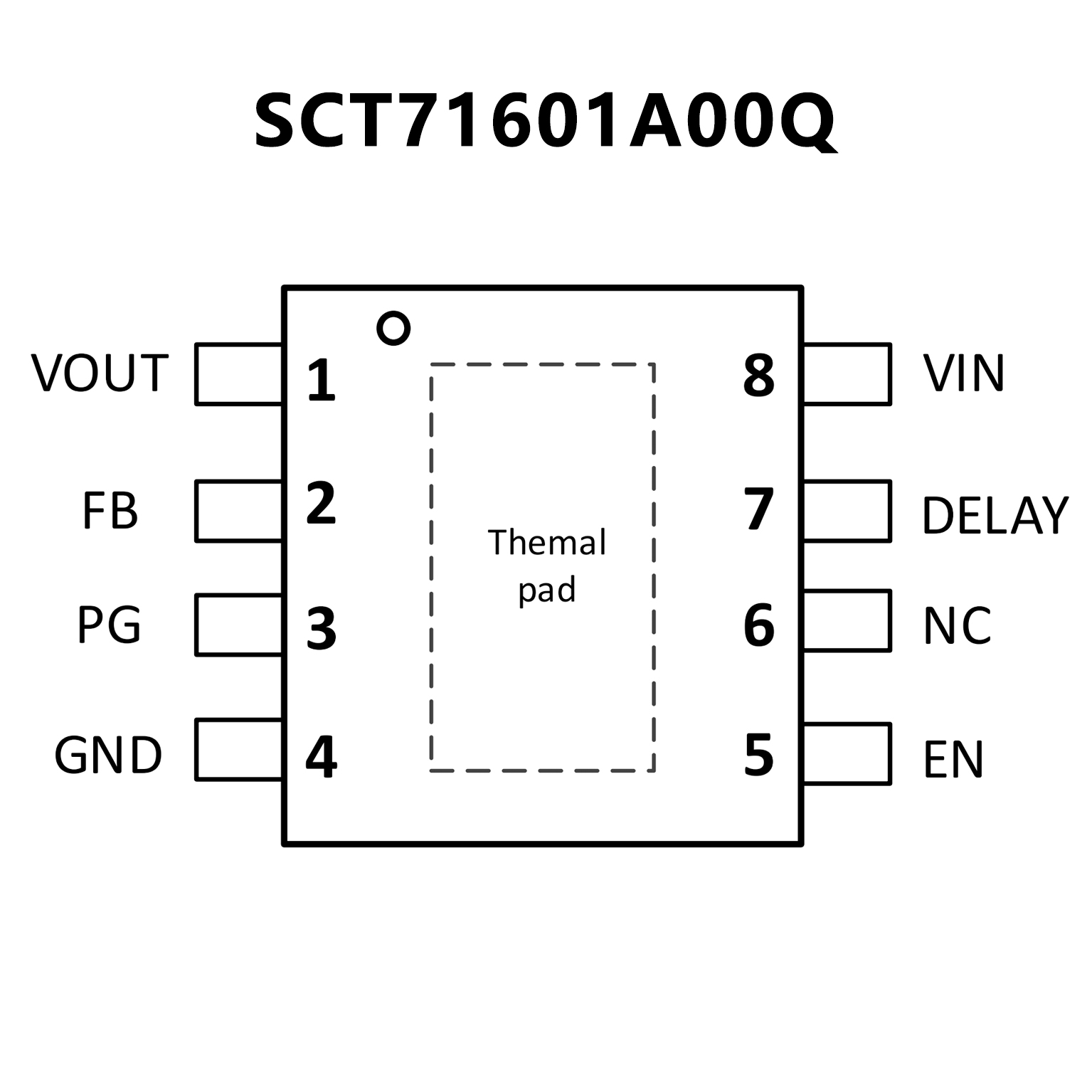

PIN CONFIGUTION
优势替代
FEATURES
• Qualified for Automotive Applications
• Wide Input Voltage Range: 3 V to 50 V
• Low Quiescent Current: 40 µA (Typical)
• Low Dropout Voltage: 300 mV (Typical)
• Output Current: 50 mA
• No Input Protection Diodes Needed
• Adjustable Output From 1.275 V to 28 V
• 1-µA Quiescent Current in Shutdown
• Stable With 1-µF Output Capacitor
• Stable With Aluminum, Tantalum, or Ceramic
Capacitors
• Reverse Input-Battery Protection
• Reverse Output Current Flow Protection
• Thermal Limiting
• Available in an 8-Pin MSOP-PowerPAD IC Package

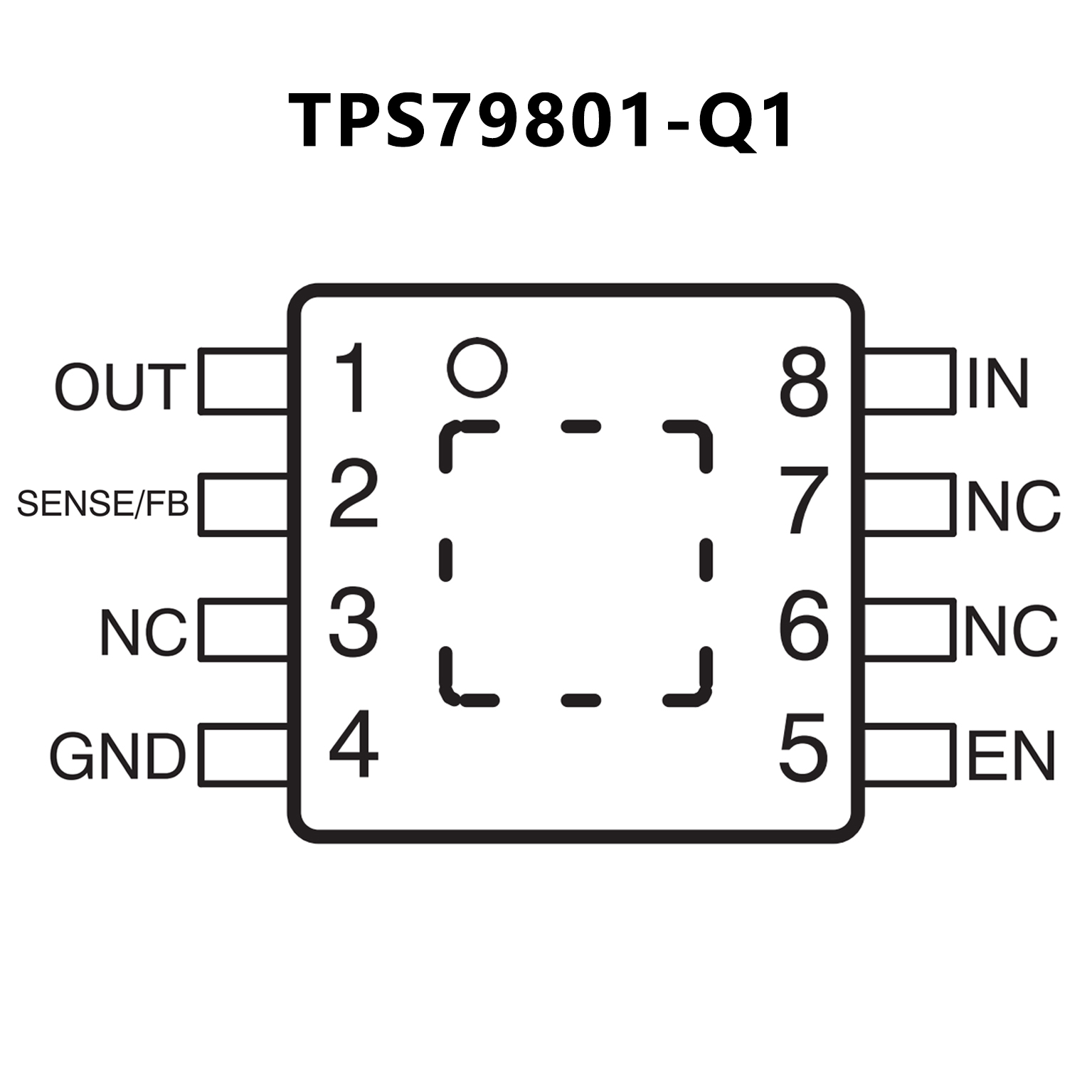

PIN CONFIGUTION
