16-Bit, High-Speed, Programmable Bipolar Input Ranges, SAR ADC, SGM51613H Replace ADS8681.
FEATURES

 16 Bits ADC:

  - SGM51613H: 800kSPS
  - SGM51652H: 500kSPS
  - SGM51622H: 250kSPS
 Supported Input Ranges:
  - Bipolar Single-Ended Ranges: ±10.24V, ±5.12V,
    and ±2.56V
  - Unipolar Single-Ended Ranges: 0V to 10.24V
    and 0V to 5.12V
  - Bipolar Differential Ranges: ±10.24V, ±5.12V,
    and ±2.56V
 Supply Voltage Ranges:
  - Analog Supply: 5V
  - I/O Supply: 1.65V to 5V
 On-Chip Reference: 4.096V
 Differential Nonlinearity (DNL):
  - SGM51622H/SGM51652H:
    -0.55LSB/+0.75LSB (TYP) for All Bipolar Ranges
    -0.7LSB/+1.2LSB (TYP) for All Unipolar Range
  - SGM51613H:
    -0.6LSB/+0.75LSB (TYP) for All Bipolar Ranges
    -0.7LSB/+1.4LSB (TYP) for All Unipolar Range
 Integral Nonlinearity (INL):
   - SGM51622H/SGM51652H:
    ±1LSB (TYP) for All Bipolar Ranges
    ±1.5LSB (TYP) for All Unipolar Range
   - SGM51613H:
    ±1.5LSB (TYP) for All Bipolar Ranges
    ±2LSB (TYP) for All Unipolar Range
 Signal-to-Noise Ratio (SNR):
  - SGM51622H/SGM51652H: 91dB (TYP)
  - SGM51613H: 90.5dB (TYP)
 Total Harmonic Distortion (THD):
  - SGM51622H/SGM51652H: -104dB (TYP)
  - SGM51613H: -100dB (TYP)
 Alarm Features
 Daisy-Chain Operation
 -40℃ to +125℃ Operating Temperature Range
 Available in Green TSSOP-16 and TQFN-4×4-16L
  Packages
PIN CONFIGUTION
优势替代
ADS8681 ADS8681.pdf

No.14517

FEATURES

• 16-bit ADC with integrated analog front-end

• High speed:

   ADS8681: 1 MSPS

   ADS8685: 500 kSPS

   ADS8689: 100 kSPS

• Software programmable input ranges:

   Bipolar ranges: ±12.288 V, ±10.24 V,

   ±6.144 V,±5.12 V, and ±2.56 V

   Unipolar ranges: 0 V–12.288 V, 0 V–10.24

   V, 0 V–6.144 V, and 0 V–5.12 V

• 5-V analog supply: 1.65-V to 5-V I/O supply

• Constant resistive input impedance ≥ 1 MΩ

• Input overvoltage protection: Up to ±20 V

• On-chip, 4.096-V reference with low drift

• Excellent performance:

   DNL: ±0.4 LSB; INL: ±0.5 LSB

   SNR: 92 dB; THD: –107 dB

• ALARM → high, low threshold

• multiSPI™ interface with daisy-chain

• Extended industrial temperature range:

   40°C to +125°C

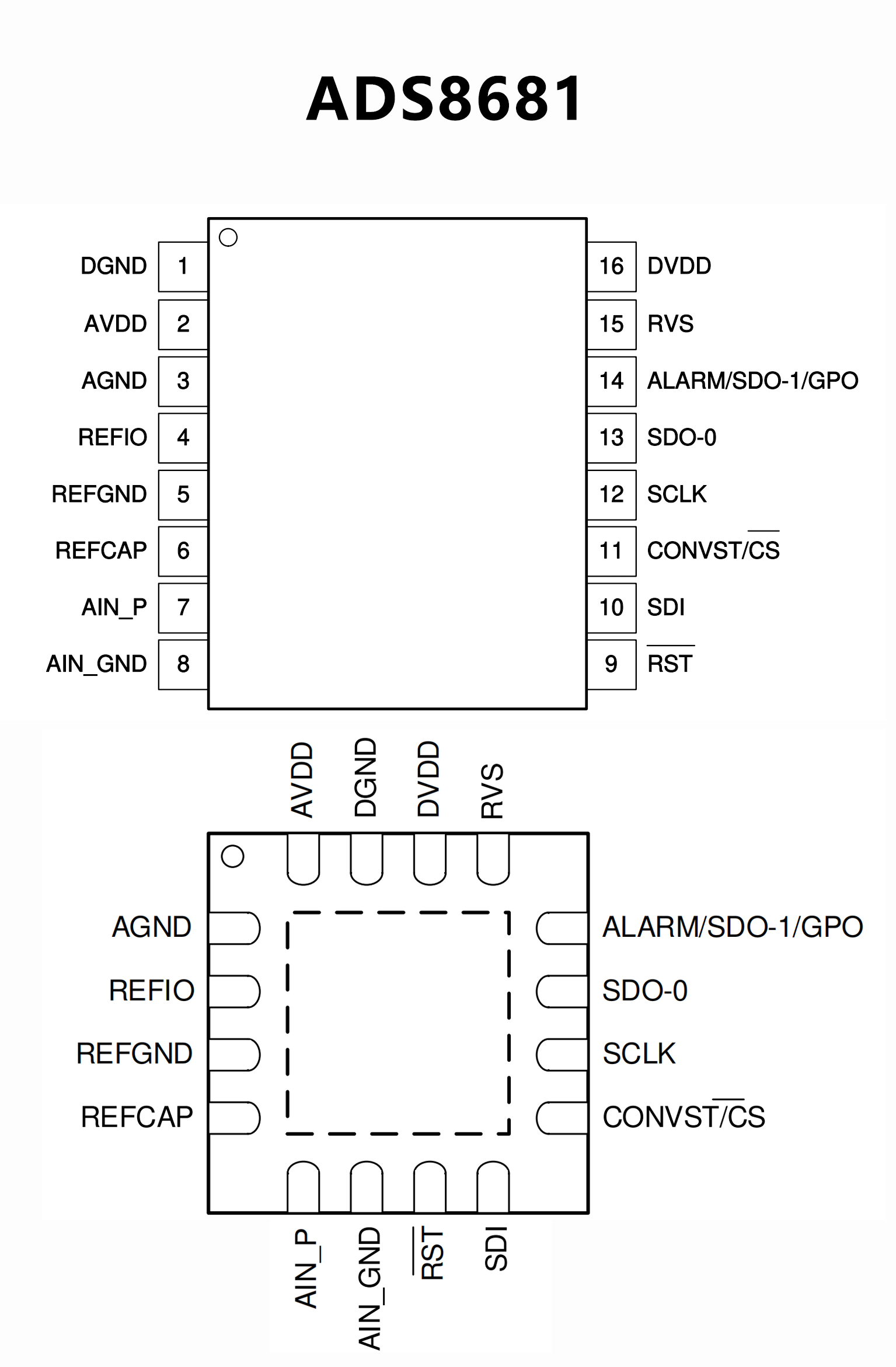

PIN CONFIGUTION
