8-Channel, 16-Bit, Bipolar Input Simultaneous Sampling ADC, SGM51652S8 Replace ADS8588H.
SGM51652S8 SGM51652S8.pdf
FEATURES

 8 Channels Simultaneous Sampling

     SGM51652S8 Supports 500kSPS on

All Channels Simultaneously

     SGM51622S8 Supports 250kSPS on

 All Channels Simultaneously

 True Bipolar Analog Input Ranges: ±10V, ±5V

 Single 5V Analog Supply and 2.7V to 5V VDRIVE

 Input Buffer with 1MΩ Analog Input Impedance

 On-Chip Accurate Reference and Reference Buffer

 Configurable Oversampling Capability with Digital Filter

 Flexible Parallel Interface or Serial Interface

    SPI-Compatible

 Performance

    SNR: 91.2dB (TYP), THD: -106dB (TYP)

    INL: ±1.5LSB (TYP), DNL: +1LSB/-0.65LSB (TYP)

    TBDkV ESD Rating on Analog Input Channels

 Operating Temperature Range: -40℃ to +125℃

 Available in a Green LQFP-10×10-64L Package

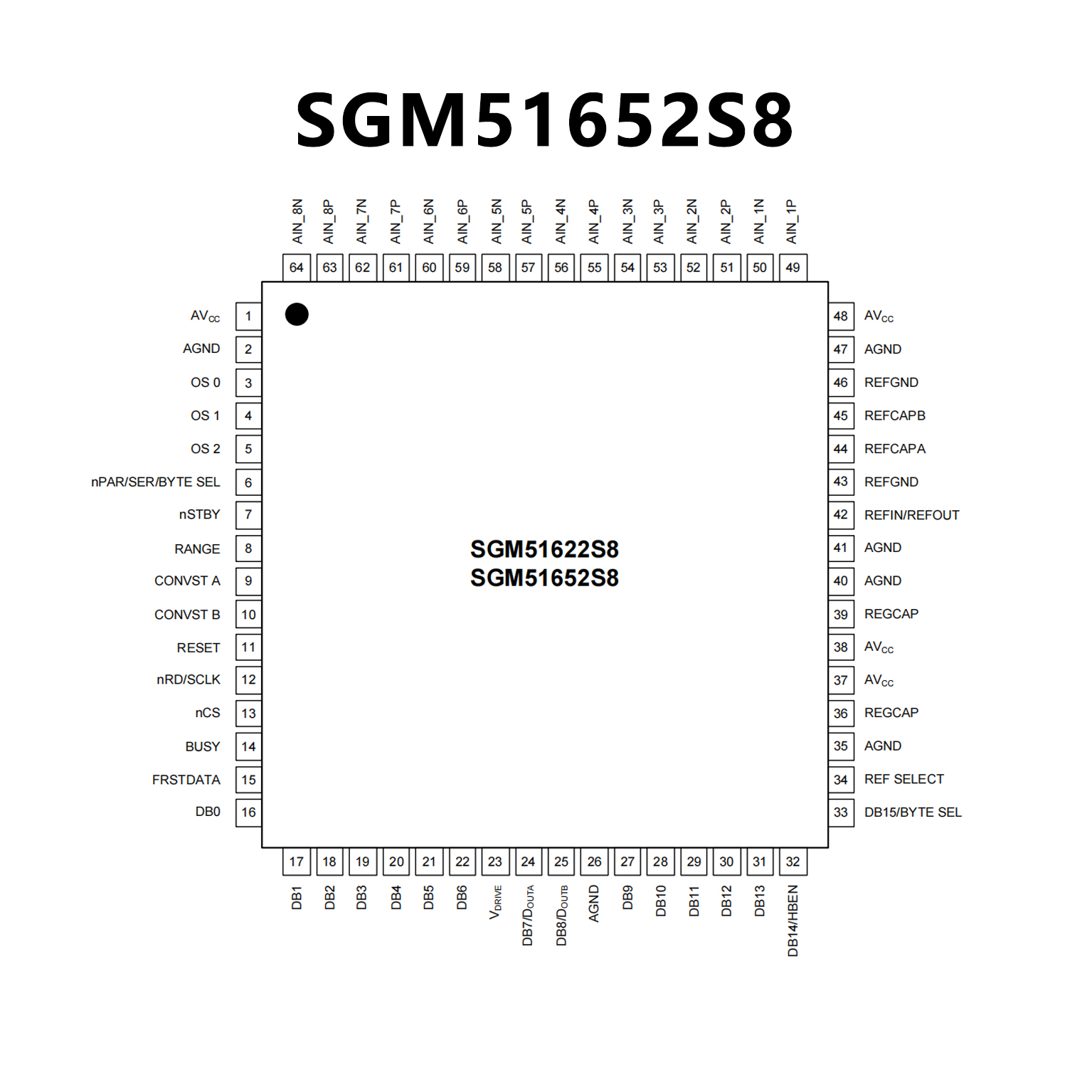

PIN CONFIGUTION
优势替代
ADS8588H ADS8588H.pdf

No.14574

FEATURES

• 16-bit ADC with integrated analog front-end
• Simultaneous sampling: 8 channels
• Pin-programmable bipolar inputs: ±10 V and ±5 V
• High input impedance: 1 MΩ
• 5-V analog supply: 2.3-V to 5-V I/O supply
• Overvoltage input clamp with 9-kV ESD
• Low-drift, on-chip reference (2.5 V) and buffer
• Performance:
– 500-kSPS max throughput on all channels
– DNL: ±0.3 LSB typ; INL: ±0.5 LSB typ
– SNR: 92.7 dB typ; THD: −110 dB typ
• Over temperature performance:
– Max offset drift: 3 ppm/°C
– Gain drift: 6 ppm/°C
• On-chip digital filter for oversampling
• Flexible parallel, byte, and serial interface
• Temperature range: –40°C to +125°C
• Package: LQFP-64

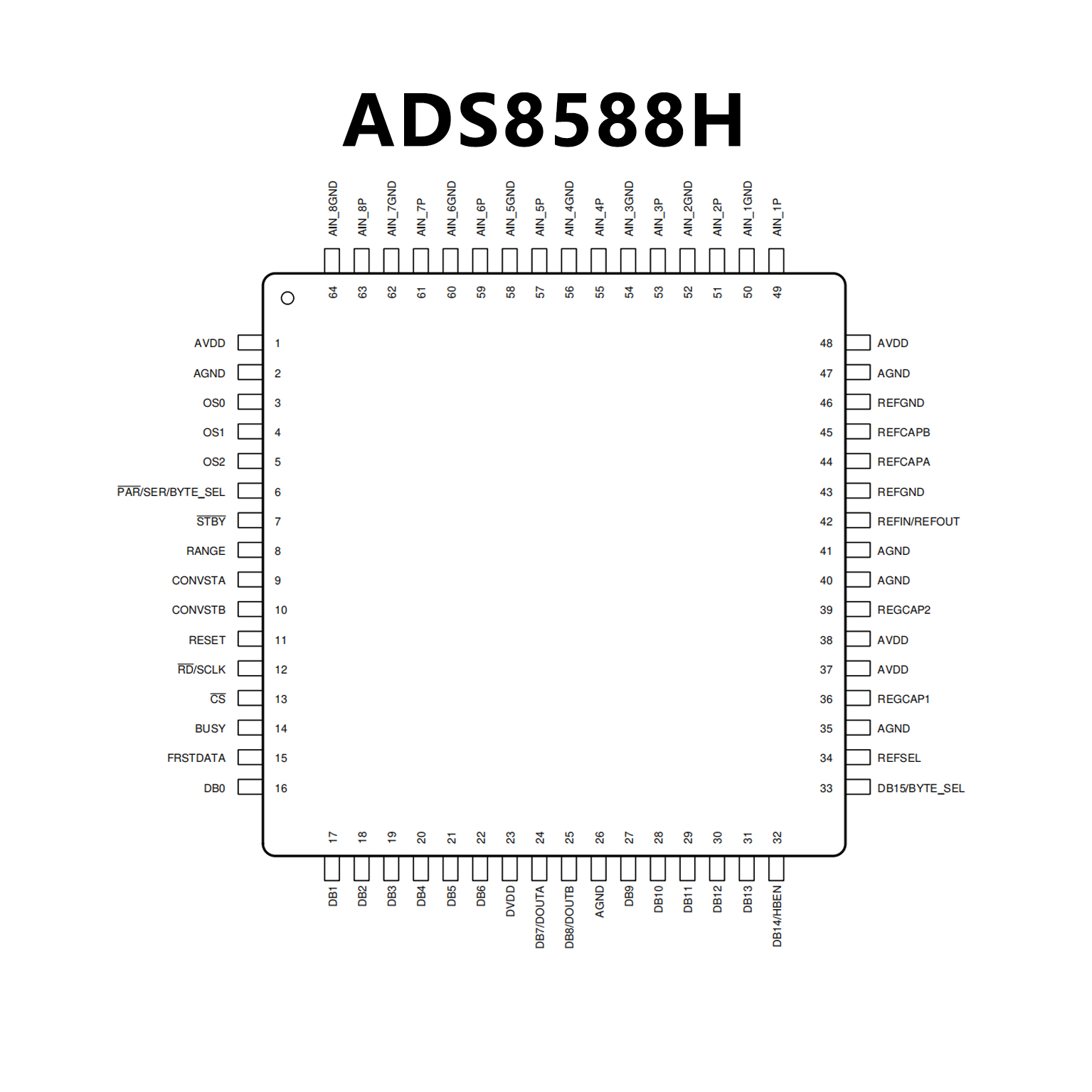

PIN CONFIGUTION
