Ultra-Small, Low-Power, 16-Bit Analog-to-Digital Converter with Internal Reference, SGM58031B P2P ADS1115.
FEATURES

 Single-Supply Voltage Range: 3V to 3.6V

   I2C Bus Voltage: 1.8V
 Low Quiescent Current:
  Continuous Mode: 220μA (TYP)
  Power-Down Mode: 0.8μA (TYP)
 Selectable Data Rates: 6.25SPS to 960SPS
 Input Multiplexer
  4 Single-Ended Inputs or 2 Differential Inputs
 Internal Programmable Gain Amplifier (PGA)
 Internal Voltage Reference and Oscillator
 Selectable Digital Comparator
 I2C-Compatible Serial Interface
 Available in Green MSOP-10 and TDFN-3×3-10L
  Packages

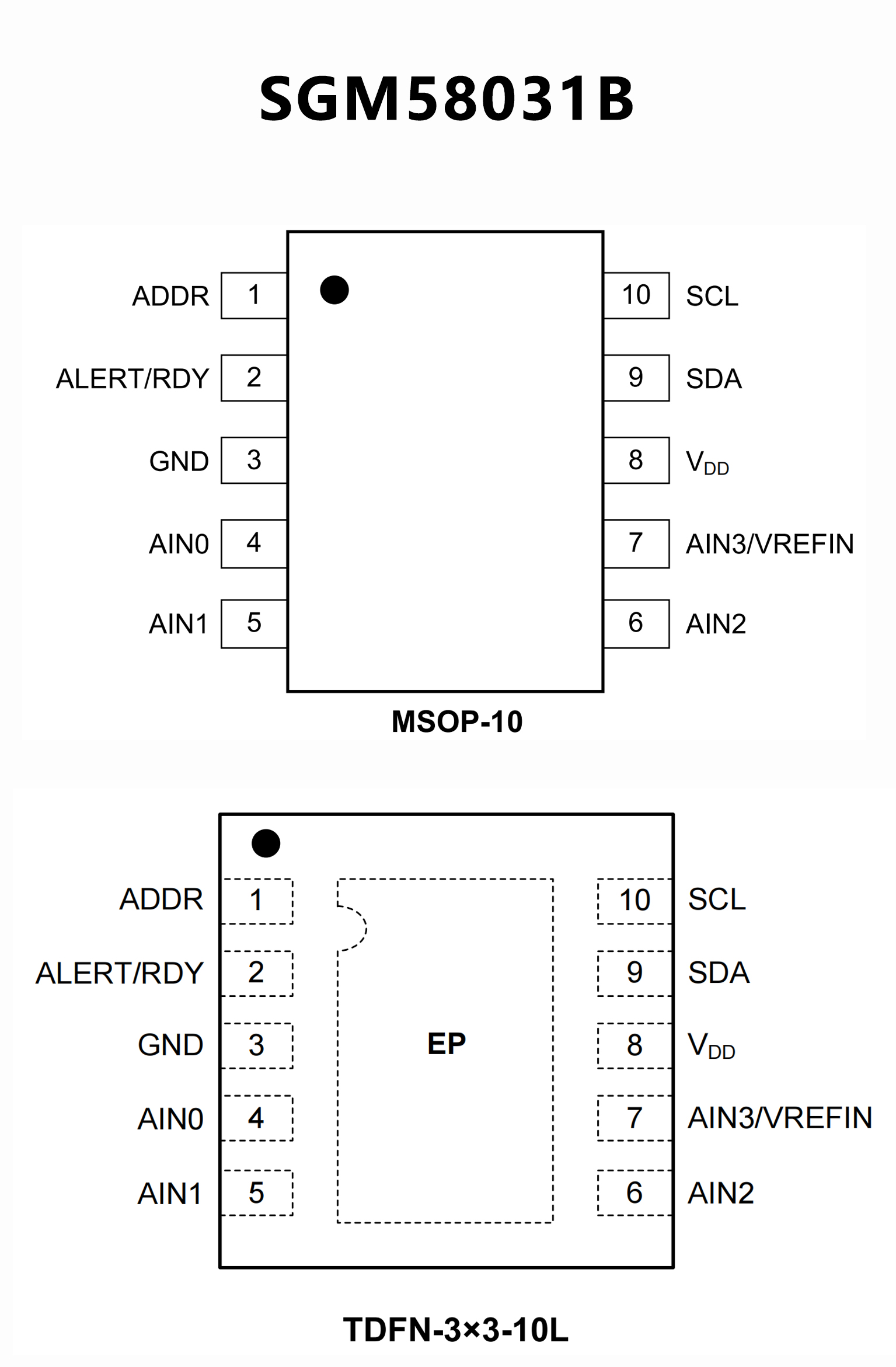

PIN CONFIGUTION
优势替代
ADS1115 ADS1115.pdf

No.14475

FEATURES

 ULTRA-SMALL QFN PACKAGE:

  2mm × 1,5mm × 0,4mm
 WIDE SUPPLY RANGE: 2.0V to 5.5V
 LOW CURRENT CONSUMPTION:
   Continuous Mode: Only 150μA
   Single-Shot Mode: Auto Shut-Down
 PROGRAMMABLE DATA RATE: 8SPS to 860SPS
 INTERNAL LOW-DRIFT VOLTAGE REFERENCE
 INTERNAL OSCILLATOR
 INTERNAL PGA

 I2C ™ INTERFACE: Pin-Selectable Addresses

 OPERATING TEMPERATURE: –40°C to +140°C

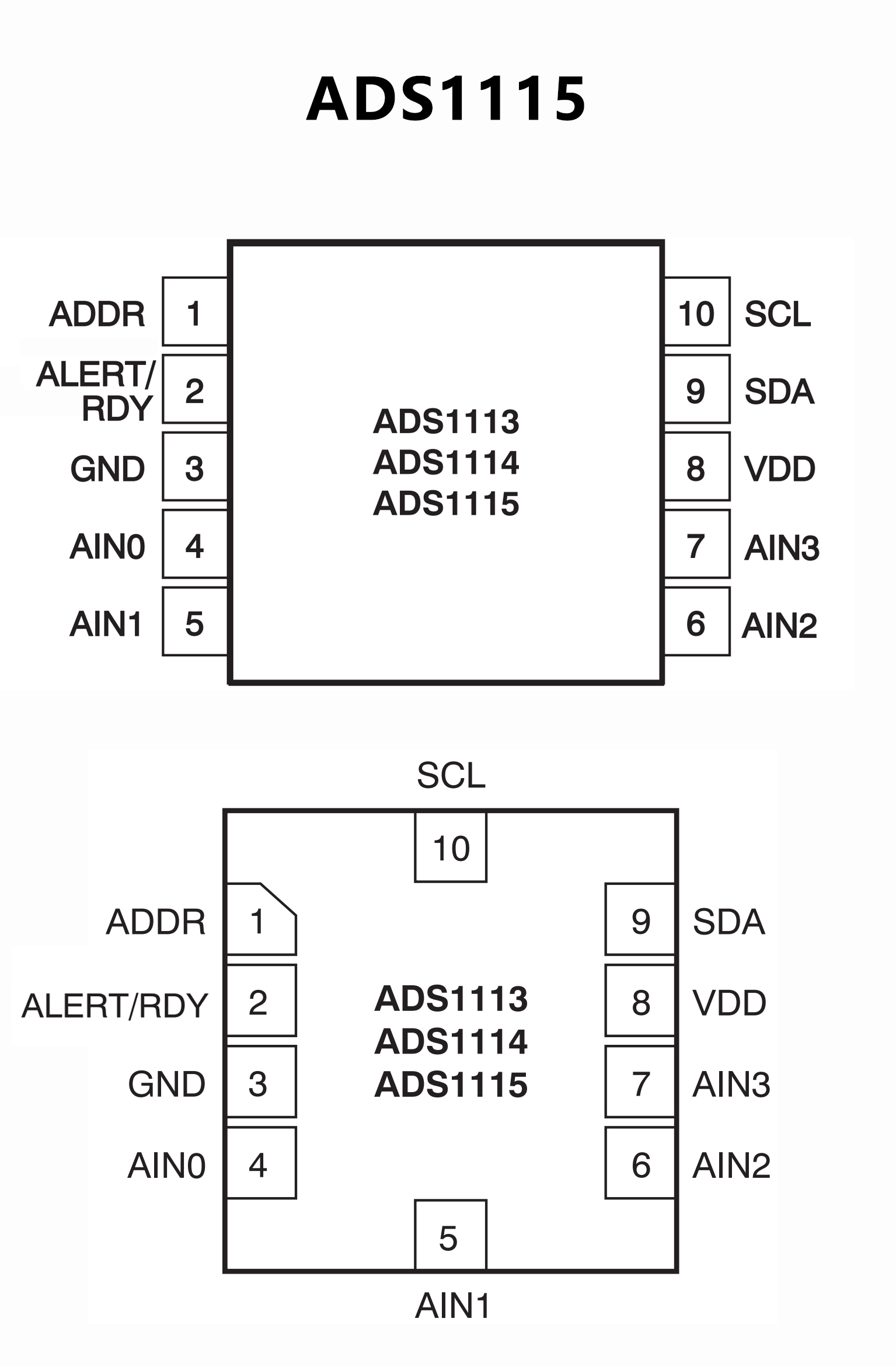

PIN CONFIGUTION
