3V to17V 0.5A Step-Down Converters with DCS-Control™, SGM61101Q Replace TPS62170-Q1.
FEATURES

资料完善中……
























PIN CONFIGUTION
优势替代
TPS62170-Q1 TPS62170-Q1.pdf

No.14032

FEATURES

• DCS-Control™ topology

• Qualified for automotive applications

• AEC-Q100 qualified with the following results:

– Device temperature grade: –40°C to 125°C

   operating junction temperature range

– Device HBM ESD classification level H2

– Device CDM ESD classification level C4B

• Functional Safety-Capable

– Documentation available to aid functional

   safety system design

• Input voltage range: 3 V to 17 V

• Up to 500-mA output current

• Adjustable output voltage from 0.9 V to 6 V

• Fixed output voltage versions

• Seamless power save mode transition

• Typically 17-μA quiescent current

• Power-good output

• 100% Duty cycle mode

• Short circuit protection

• Overtemperature protection

• Pin-to-pin compatible with TPS62160-Q1

• Available in a 2 × 2 mm, WSON-8 package

• Create a custom design using the TPS62170-Q1

   with the WEBENCH® power designer

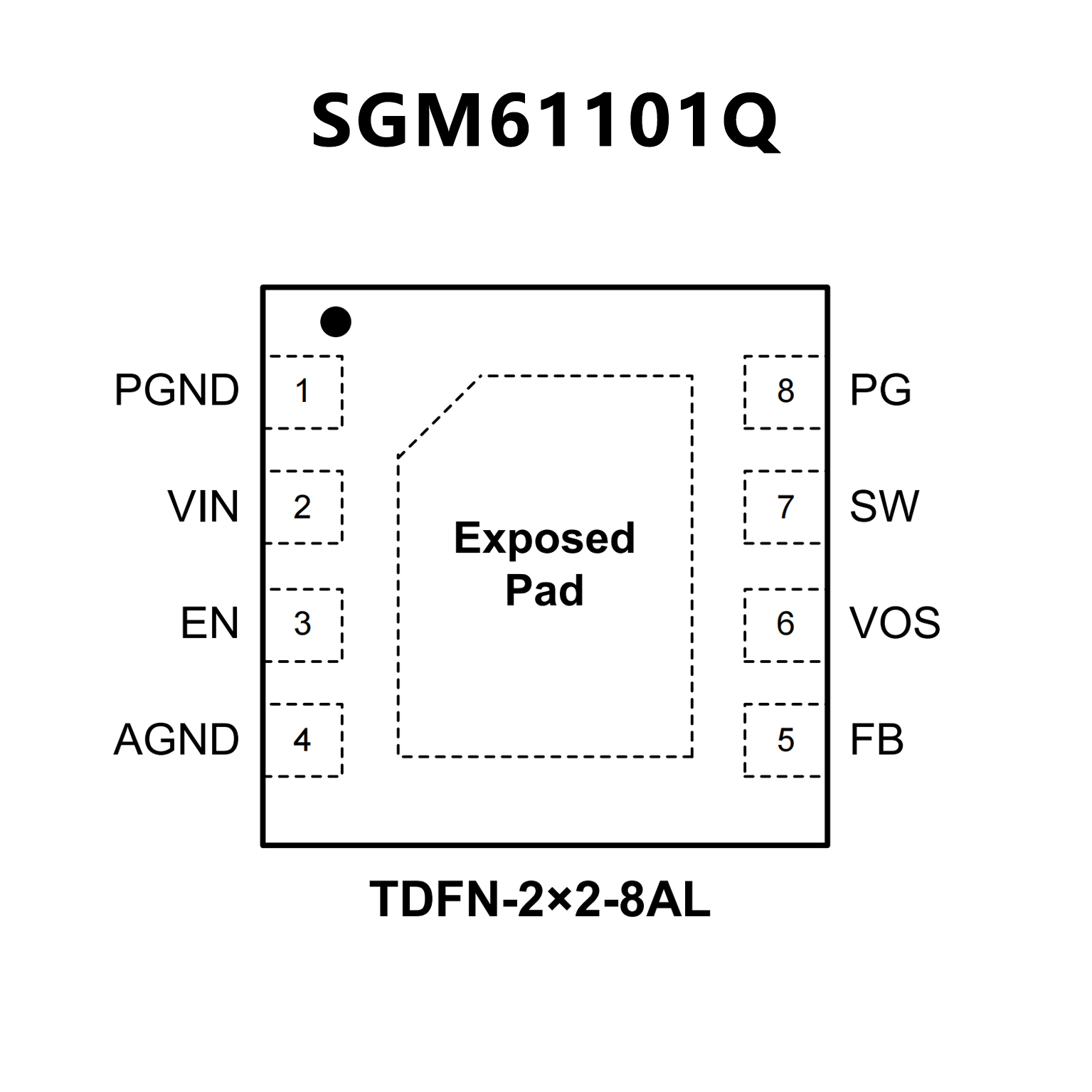

PIN CONFIGUTION
