Low-Power DC-DC Step-Up Converter,SGM6601YTN5G Replace WD3133.
SGM6601YTN5G
SGM6601YTN5G.pdf
SGM6601YTN5G.pdfFEATURES
• Input Voltage Range: 1.8V to 5.5V
• Adjustable Output Voltage Range up to 38V
• 400mA Internal Switch Current
• Up to 1MHz Switching Frequency
• 20μA Typical No-Load Quiescent Current
• 0.1μA Typical Shutdown Current
• Internal Soft-Start Function
• -40℃ to +85℃ Operating Temperature Range
• Available in Green TSOT-23-5 and TDFN-2×2-6L
Packages

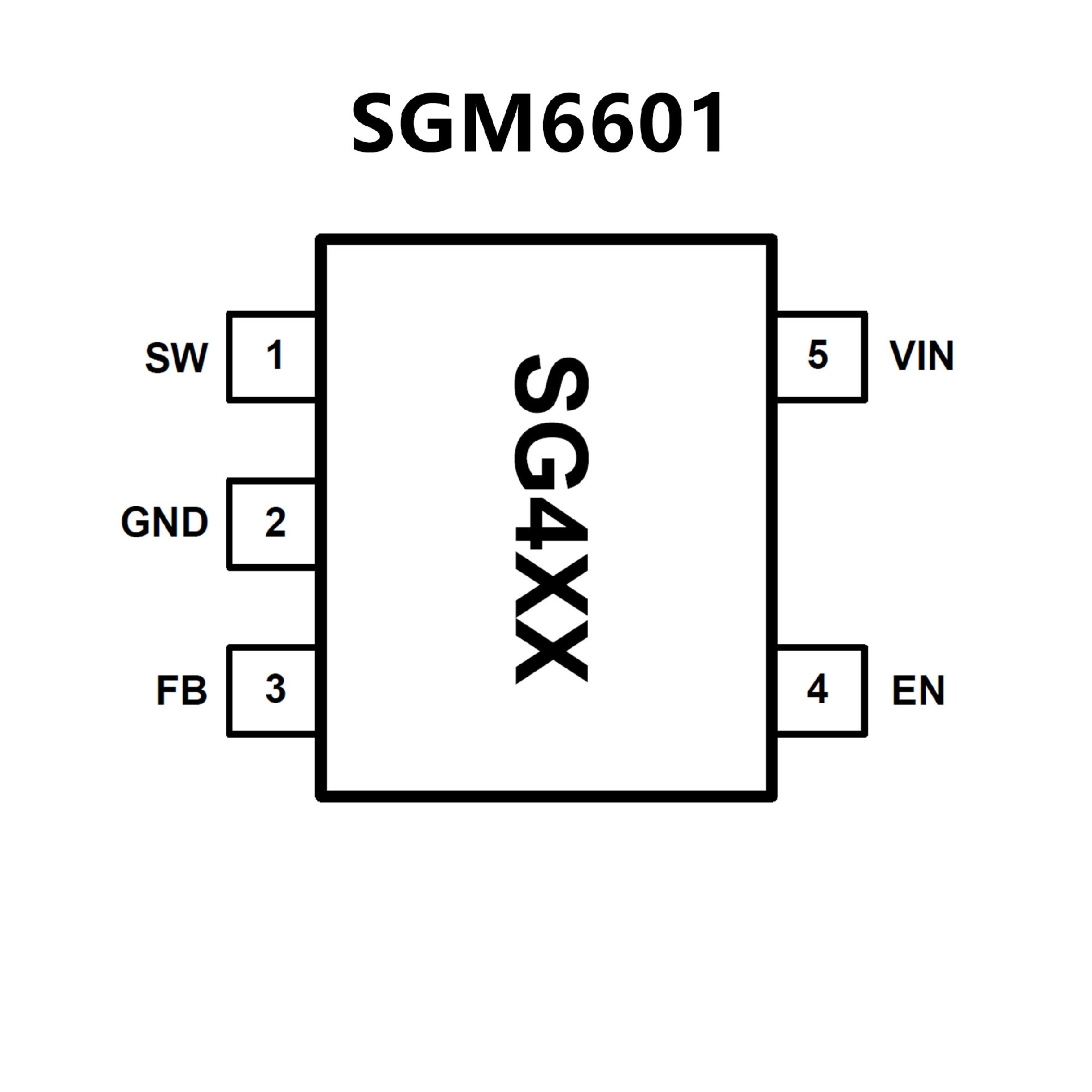

PIN CONFIGUTION
优势替代
FEATURES
• Wide input voltage range from 2.7-V to 5.5-V
• 1.25-V (±2%) high accuracy reference voltage
• 1.2-MHz switching frequency
• Up to 93% efficiency
• Over 1-A (min.) power switch current limit
• Provide typical 12V / 200mA~300mA output from
3.3V~5V input
• Built-in Soft-Start

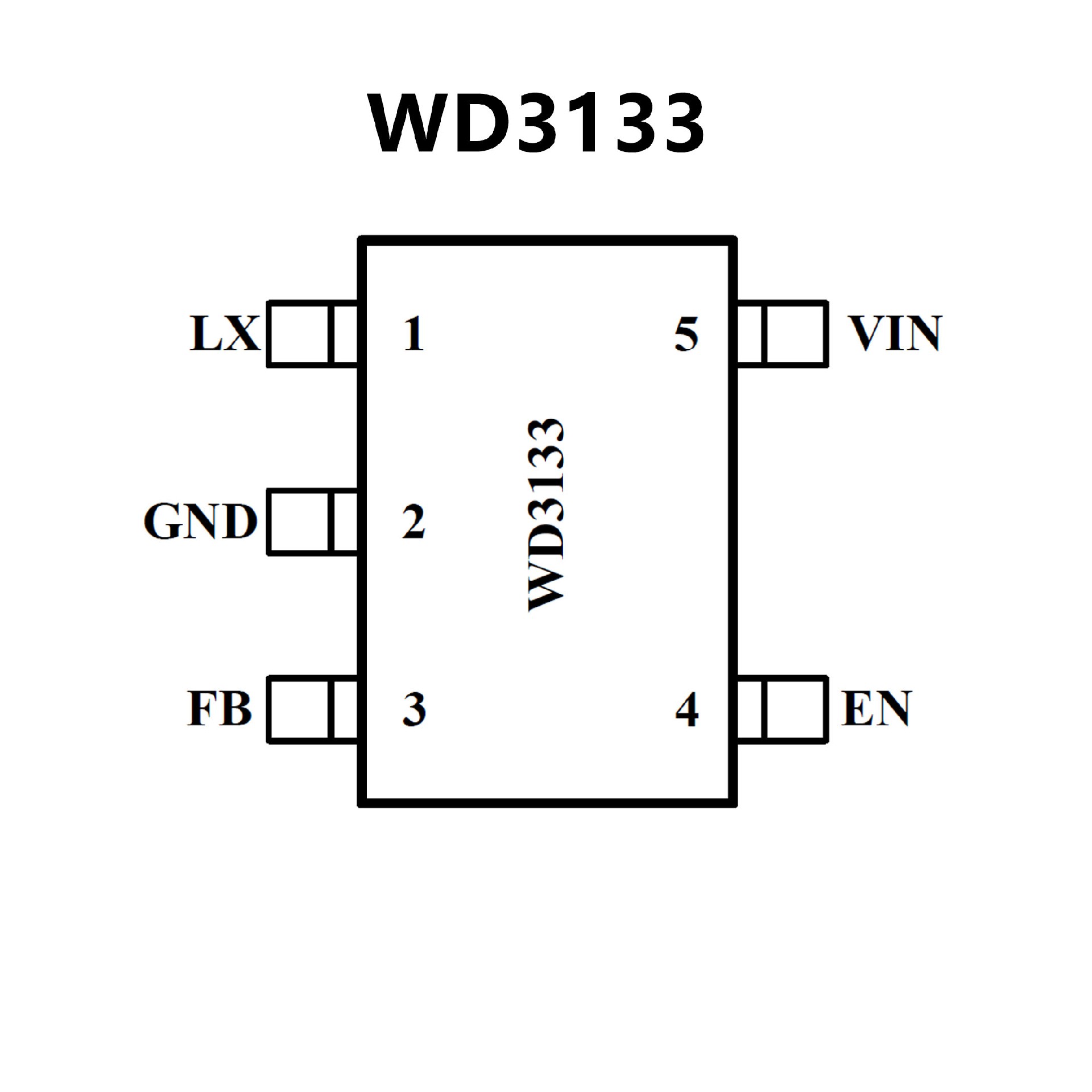

PIN CONFIGUTION
