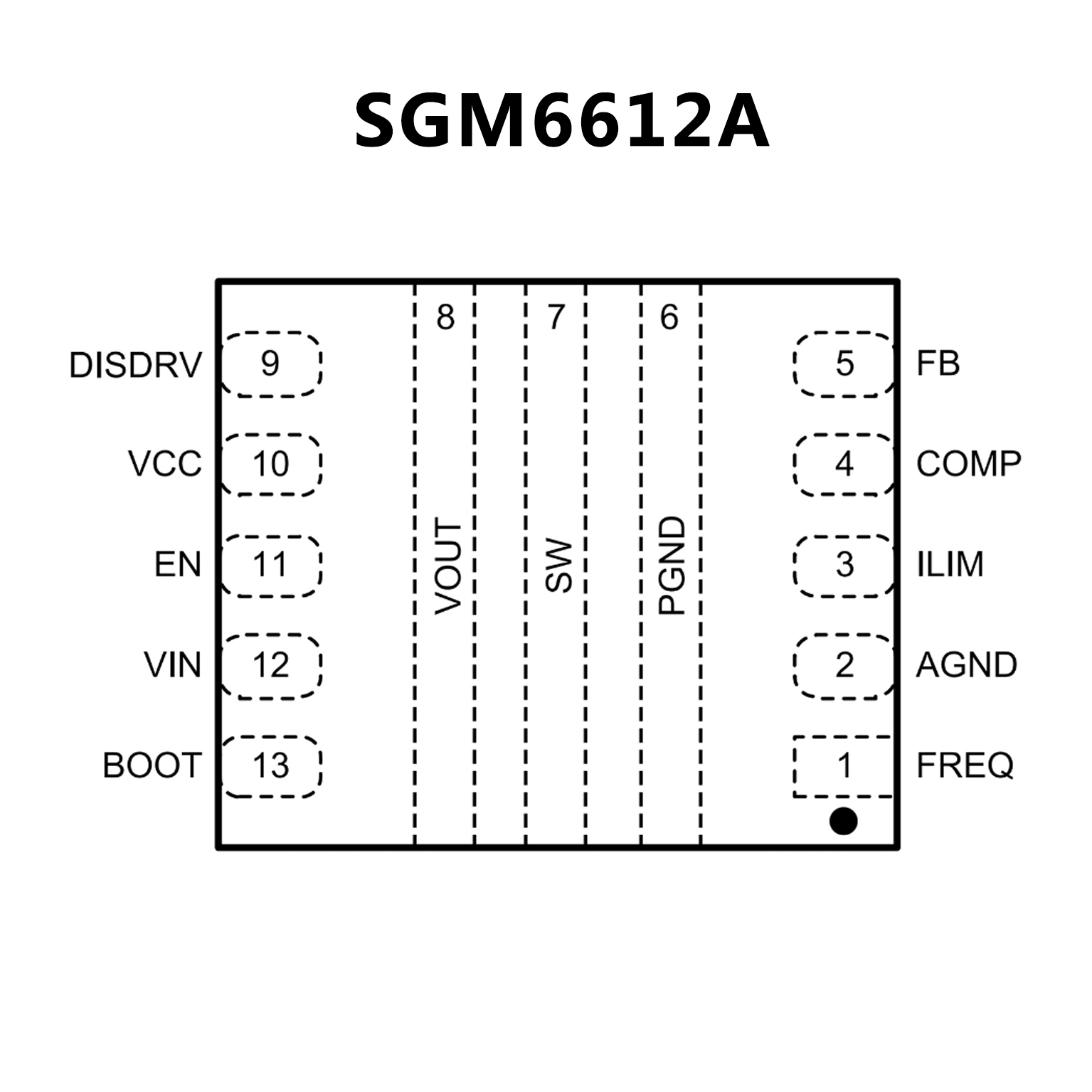

SGM6612A.pdf• Input Voltage Range: 2.7V to 16V
• Output Voltage Range: 4.5V to 20V
• Up to 10A Resistor-Programmable Current Limit
• 15mΩ Low RDSON Internal MOSFETs
• Up to 95% Efficiency at VIN = 7.2V, VOUT = 16V, IOUT = 2A
• Up to 2.2MHz Resistor-Programmable Switching Frequency
• Gate Driver for Load Disconnect
• Hiccup Short Protection
• Over-Voltage Protection
• Auto PFM Mode at Light Load
• Available in a Green TQFN-3×3.5-13L Package

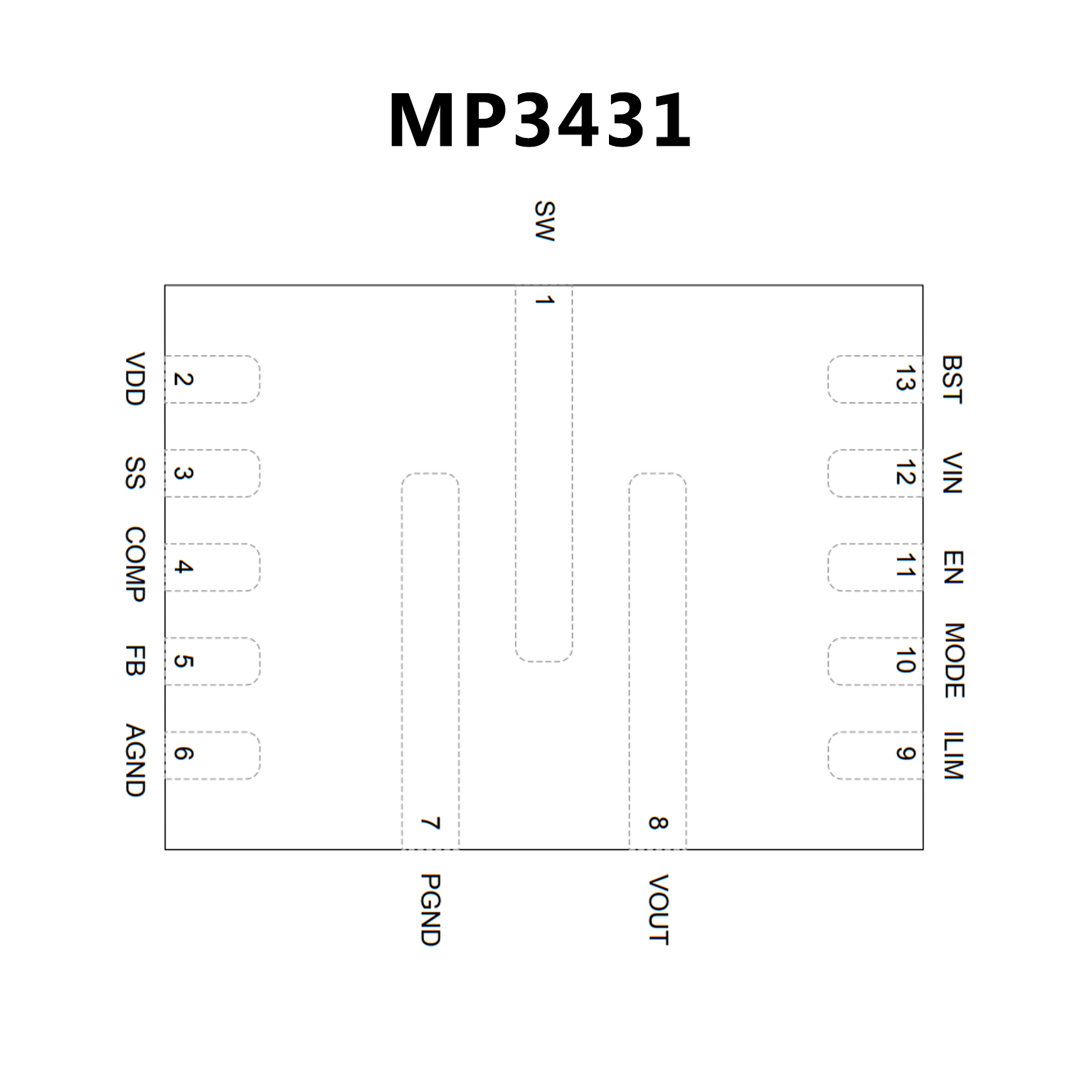

• 2.7V to 13V Start-Up Voltage
• 0.8V to 13V Operation Voltage
• Up to 16V Output Voltage
• Supports 30W Average Power Load and
40W Peak Power Load from 3.3V
• Programmable Input Current Limit
• 21.5A Internal Switch Current Limit
• Integrated 6.5mΩ and 10mΩ Power MOSFET
• >95% Efficiency for 3.6V VIN to 9V/3A
• Selectable PSM, >23kHz USM, and FCCM
in Light-Load Condition
• 600kHz Fixed Switching Frequency
• Adaptive COT for Fast Transient Response
• External Soft Start and Compensation Pins
• Programmable UVLO and Hysteresis
• 150°C Over-Temperature Protection (OTP)
• Available in a QFN-13 (3mmx4mm) Package
