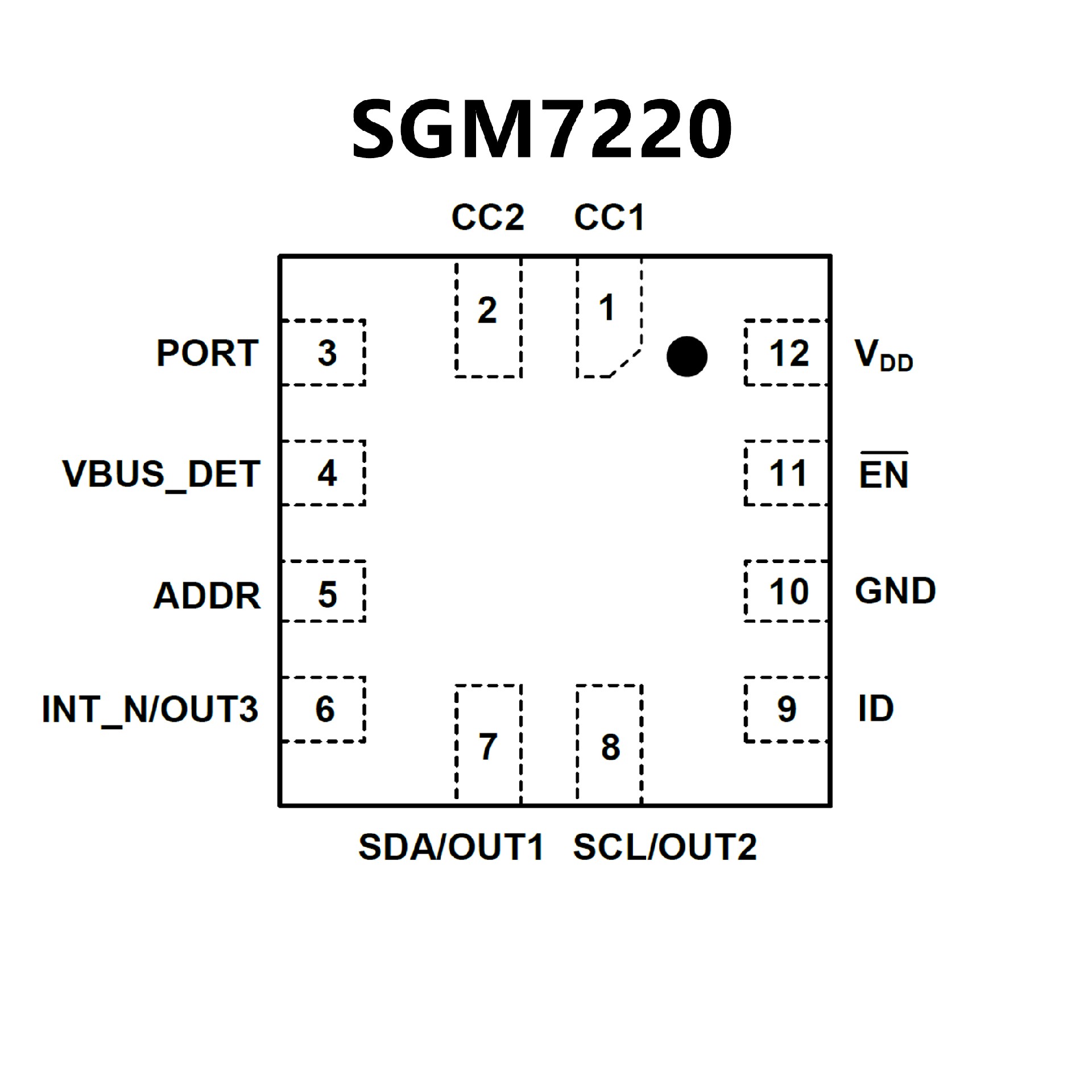

SGM7220.pdf• Supply Voltage Range: 2.7V to 5V
• Supports USB Type-C Specification 1.1
• Enable Control: Active Low (EN Pin)
• Backward Compatible with USB Type-C
Specification 1.0
• Supports up to 3A of Current Advertisement and
Detection
• Mode Configuration
Host Only - DFP (Source)
Device Only - UFP (Sink)
Dual Role Port - DRP
Try.SNK
• Channel Configuration (CC)
Attachment of USB Port Detection
Cable Orientation Detection
Role Detection
Type-C Current Mode (Default, Medium or High)
• VBUS Detection
• I2C or GPIO Control
• Role Configuration Control through I2C
• Low Current Consumption
• -40℃ to +125℃ Operating Temperature Range
• Available in Green UTQFN-1.6×1.6-12L Package

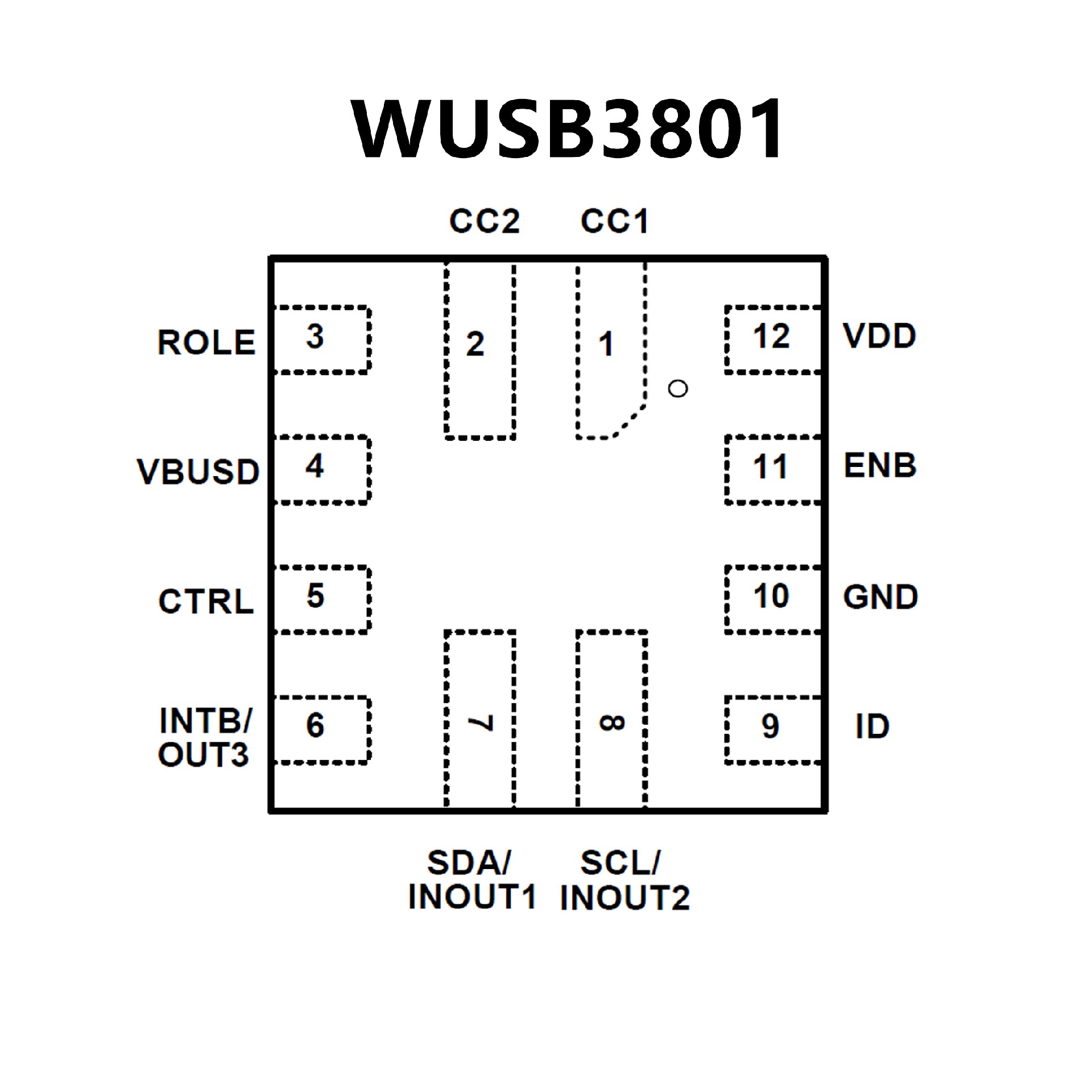

• USB Type-C Cable and Connector
Specification Release 1.2 compatible
• Global power saving and active mode
• Pin or I2C controllable
• Support auto CC ports configuration
• Support SRC/SNK/DRP power mode
• Support DRP with Try.SNK or Try.SRC
• Support different current model controls and
identifications (Default, 1.5A and 3.0A)
• Accurate internal CC termination resistance
and current source with high precision
• High voltage EOS protection and DC 25V
tolerance on CC1, CC2 and VBUSD pins
• Wide single power supply range: 2.7 ~ 5.5V
• QFN1616-12L packaging available
(1.6x1.6x0.35mm)
