Application-specific Operational Amplifier, SGM8199 Replace INA199.
SGM8199
SGM8199.pdf
SGM8199.pdfFEATURES
• Wide Common Mode Range: 0V to 26V
• Offset Voltage: ±30μV (TYP)
(Enables shunt drops of 10mV full-scale)
• Accuracy: ±0.02% Gain Error (TYP)
• Choice of Gains:
- SGM8199A0 Gain: 20V/V
- SGM8199A1 Gain: 50V/V
- SGM8199A2 Gain: 100V/V
• Quiescent Current: 70μA (TYP)
• SC70-6 and UTQFN-1.8×1.4-10L Packages

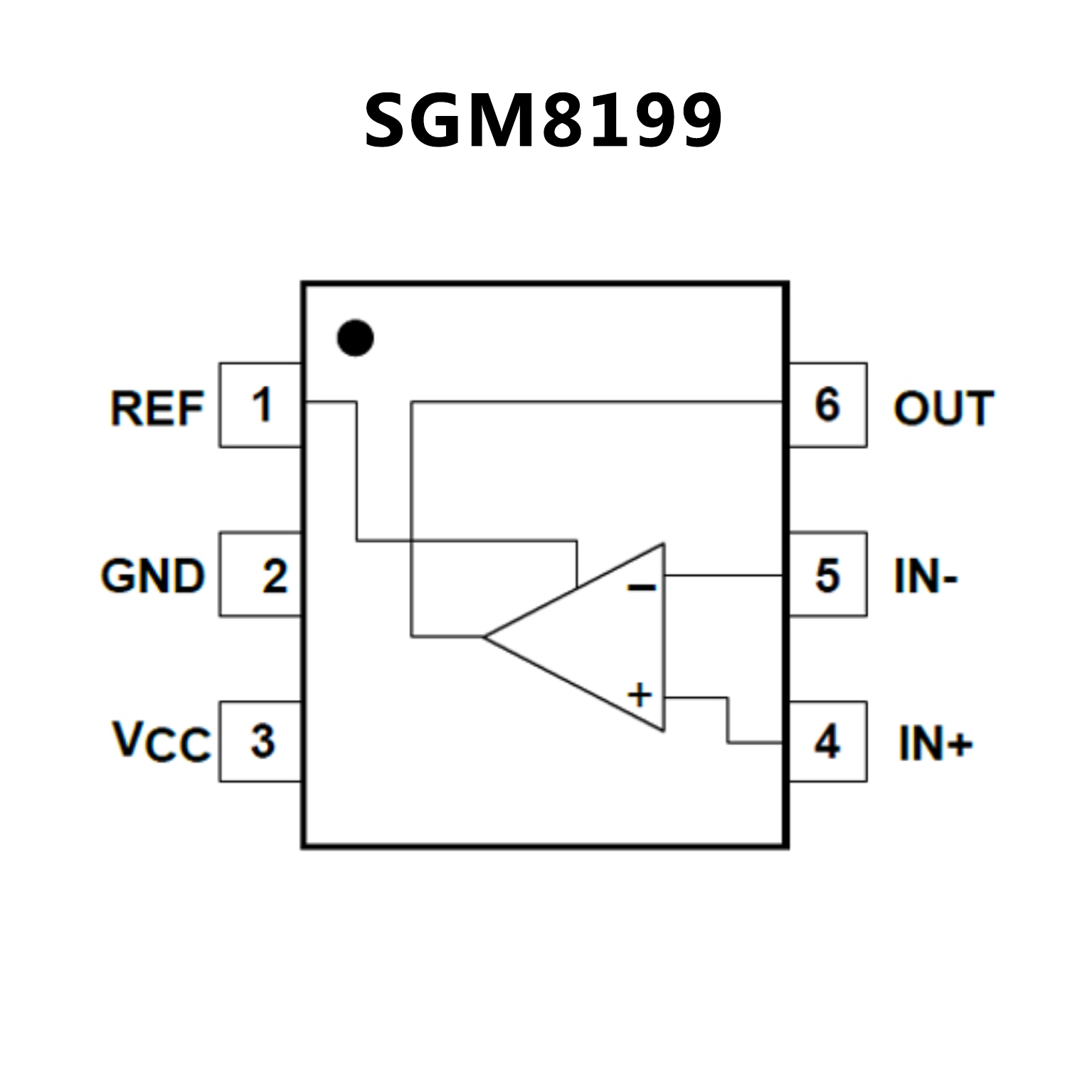

PIN CONFIGUTION
优势替代
FEATURES
• Wide Common-Mode Range: –0.3 V to 26 V
• Accuracy
– ±1.5% Gain Error (Maximum Over Temperature)
– 0.5-μV/°C Offset Drift (Maximum) full-scale.
– 10-ppm/°C Gain Drift (Maximum)
• Choice of Gains:
– INA199x1: 50 V/V
– INA199x2: 100 V/V
– INA199x3: 200 V/V
• Quiescent Current: 100 μA (Maximum)
• Packages: SC70, UQFN-10

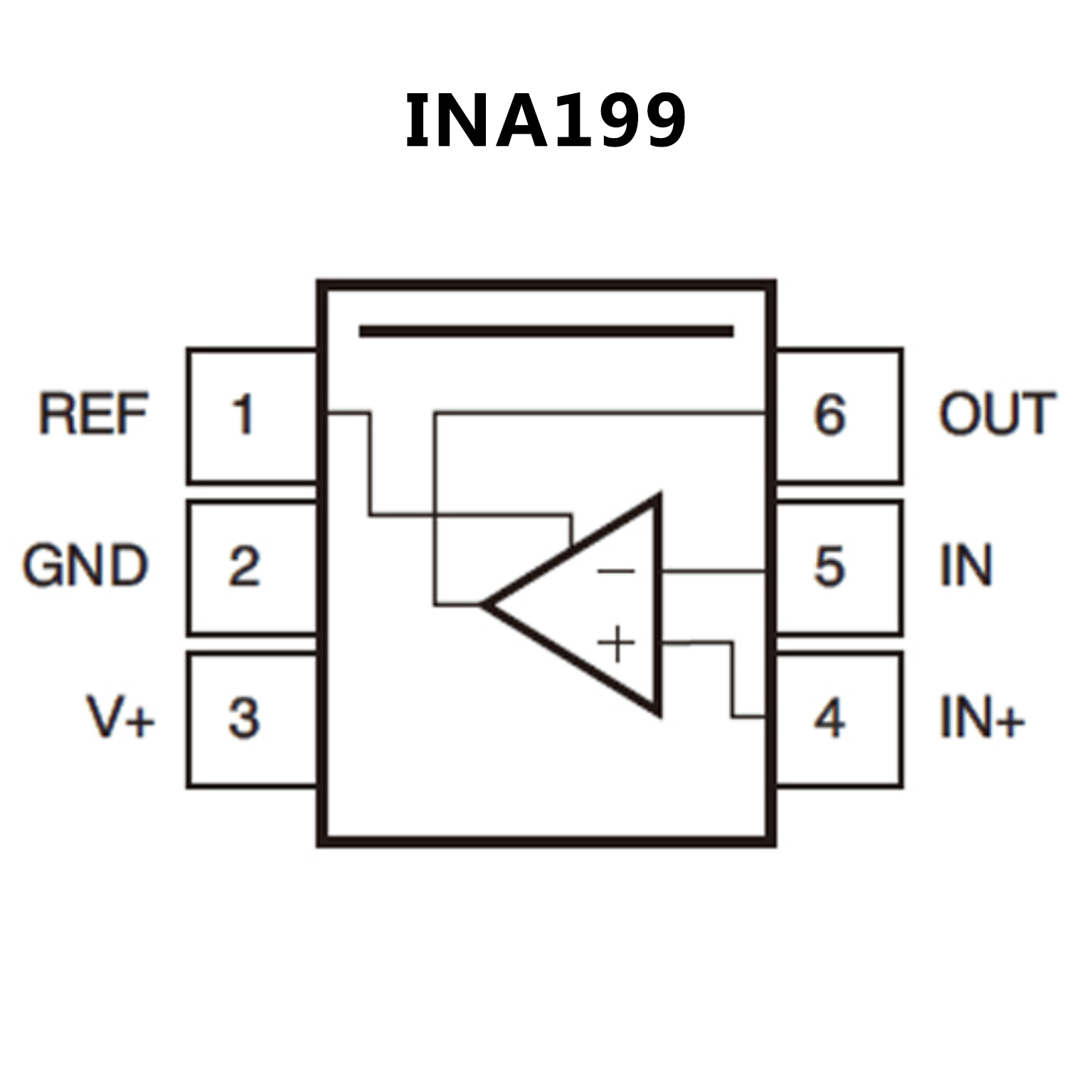

PIN CONFIGUTION
