SGM8272.pdf• Low Power Consumption: 150µA/Amplifier
• Wide Input Common Mode Voltage Range
• Low Input Bias and Offset Currents
• Output Short-Circuit Protection
• Rail-to-Rail Output
• High Input Impedance
• Low Offset Voltage: 3mV (MAX)
• High Slew Rate: 7V/µs
• Small Packaging:
SGM8271 Available in Green SOT-23-5,
MSOP-8and SOIC-8

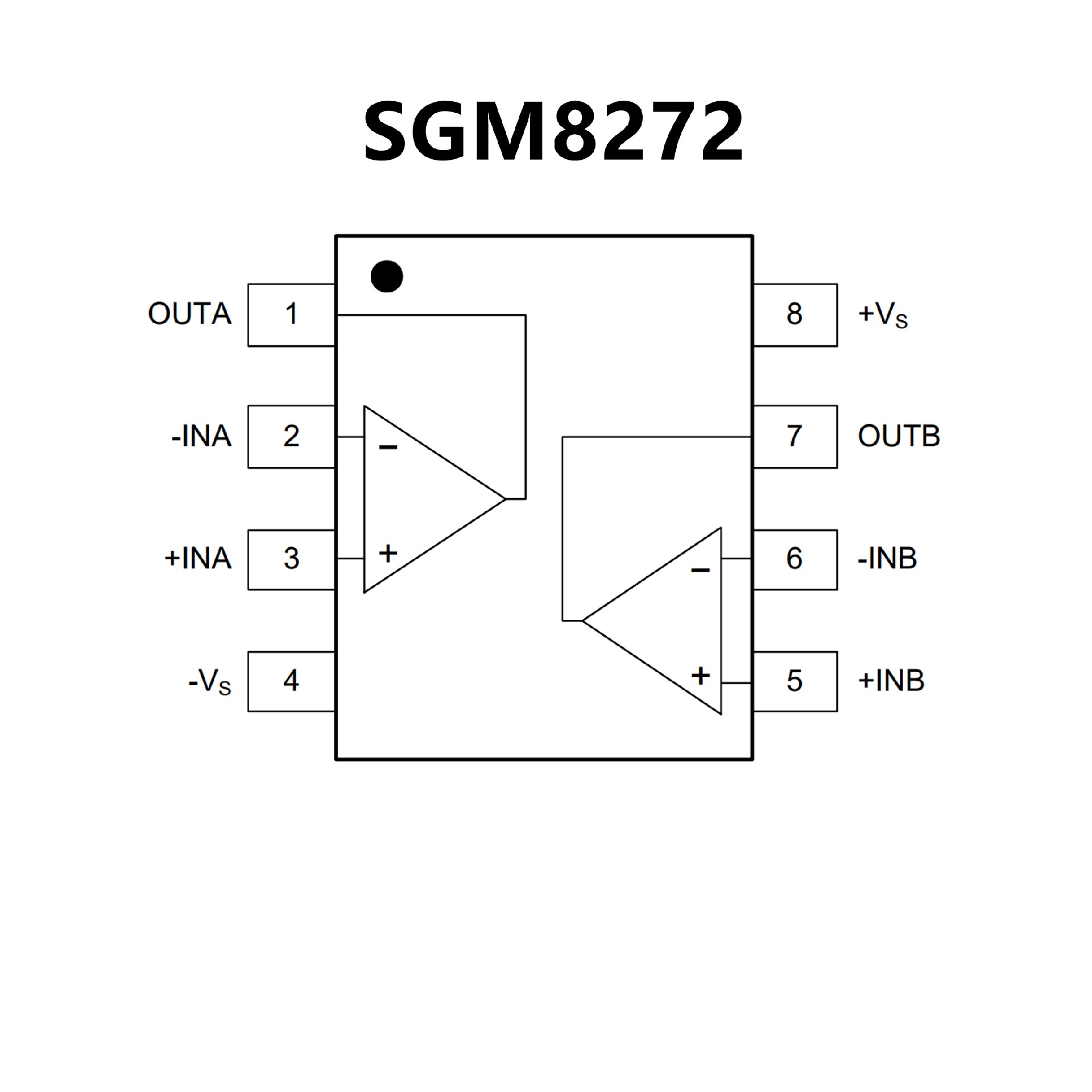

SGM8272 Available in Green MSOP-8 and SOIC-8
SGM8274 Available in Green TSSOP-14 and SOIC-14
• Performance Specified on Single−Sided
Power Supply: 1.8 V, 2.7 V, and5 V
• Small Packages:
LMV931 in a SC−70

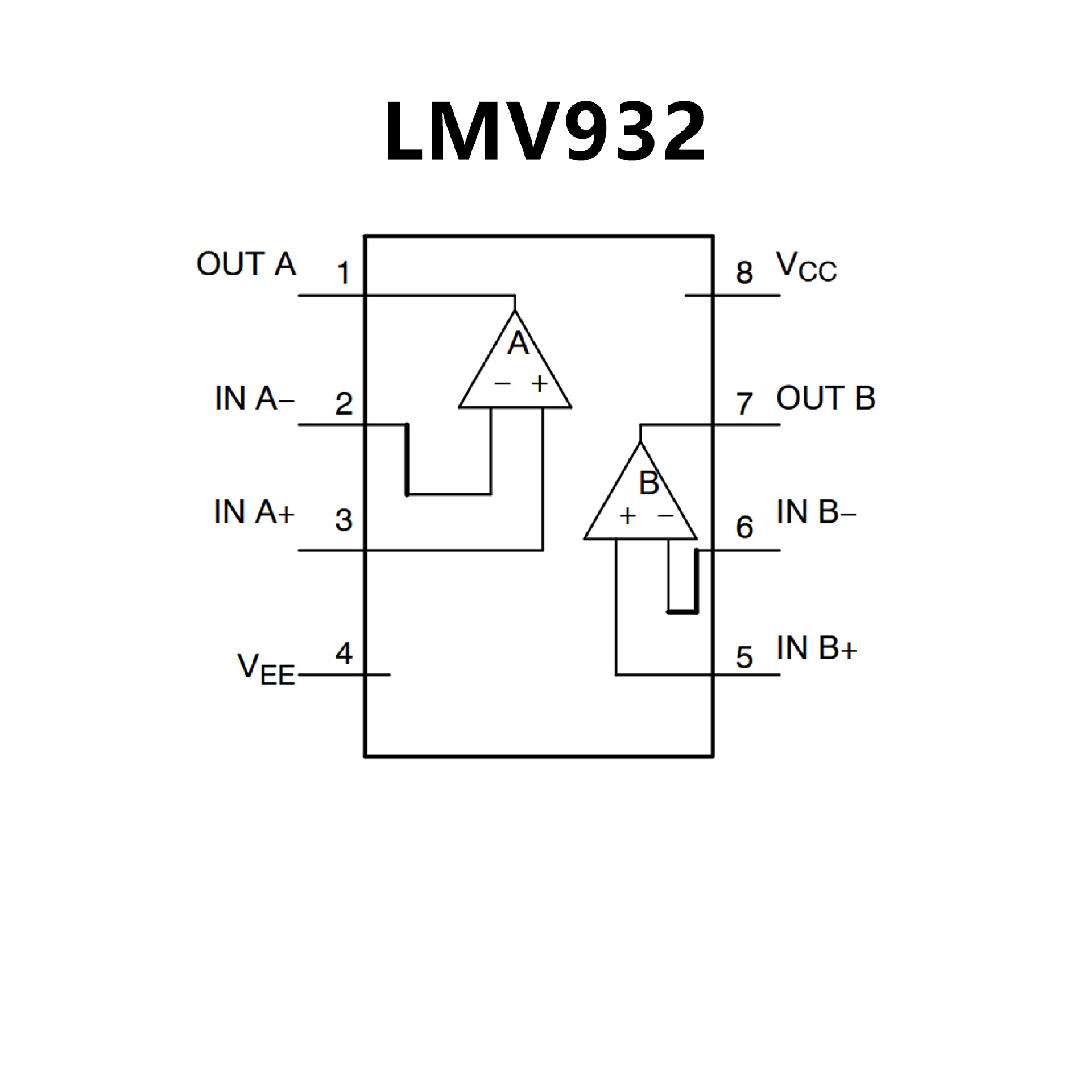

LMV932 in a Micro8 or SOIC−8
• No Output Crossover Distortion
• Extended Industrial Temperature Range:
40°C to +125°C
• Low Quiescent Current 210 µA, Max Per Channel
• No Output Phase−Reversal from Overdriven Input
• These are Pb−Free Devices
