SGM8422.pdf• ±2.25V to ±15V Dual Power Supplies
or 4.5V to30V Single Supply
• Gain-Bandwidth Product: 2.4MHz (TYP)
• Supply Current: 0.72mA/Amplifier
• High Slew Rate: 2V/µs
• Beyond the Rails Input Capability
• Rail-to-Rail Output Swing
• -40℃ to +85℃ Operating Temperature Range
• Small Packaging:

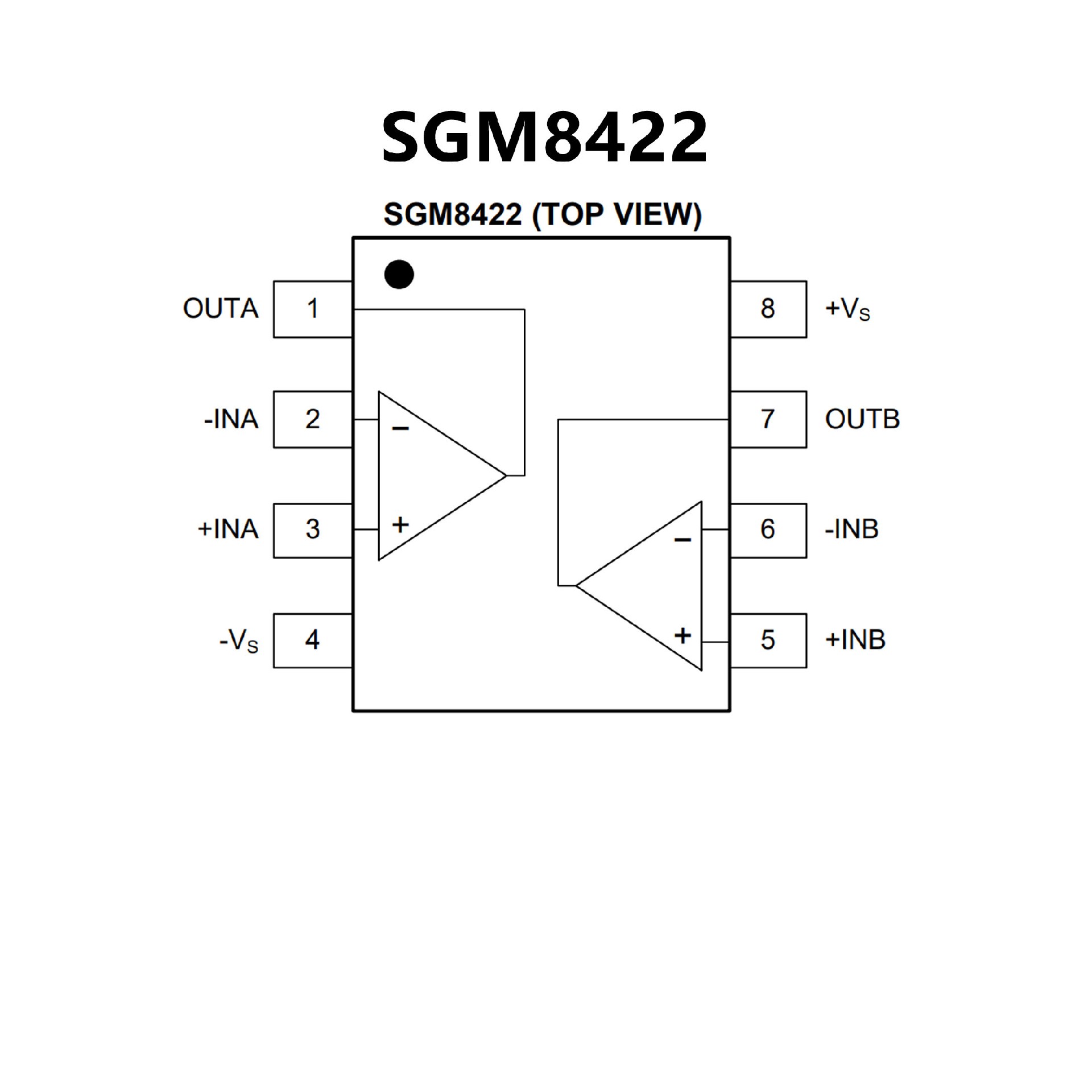

SGM8422 Available in SOIC-8 and MSOP-8 Packages
SGM8424 Available in TSSOP-14 and SOIC-14Packages
• (Typical Unless Otherwise Noted)

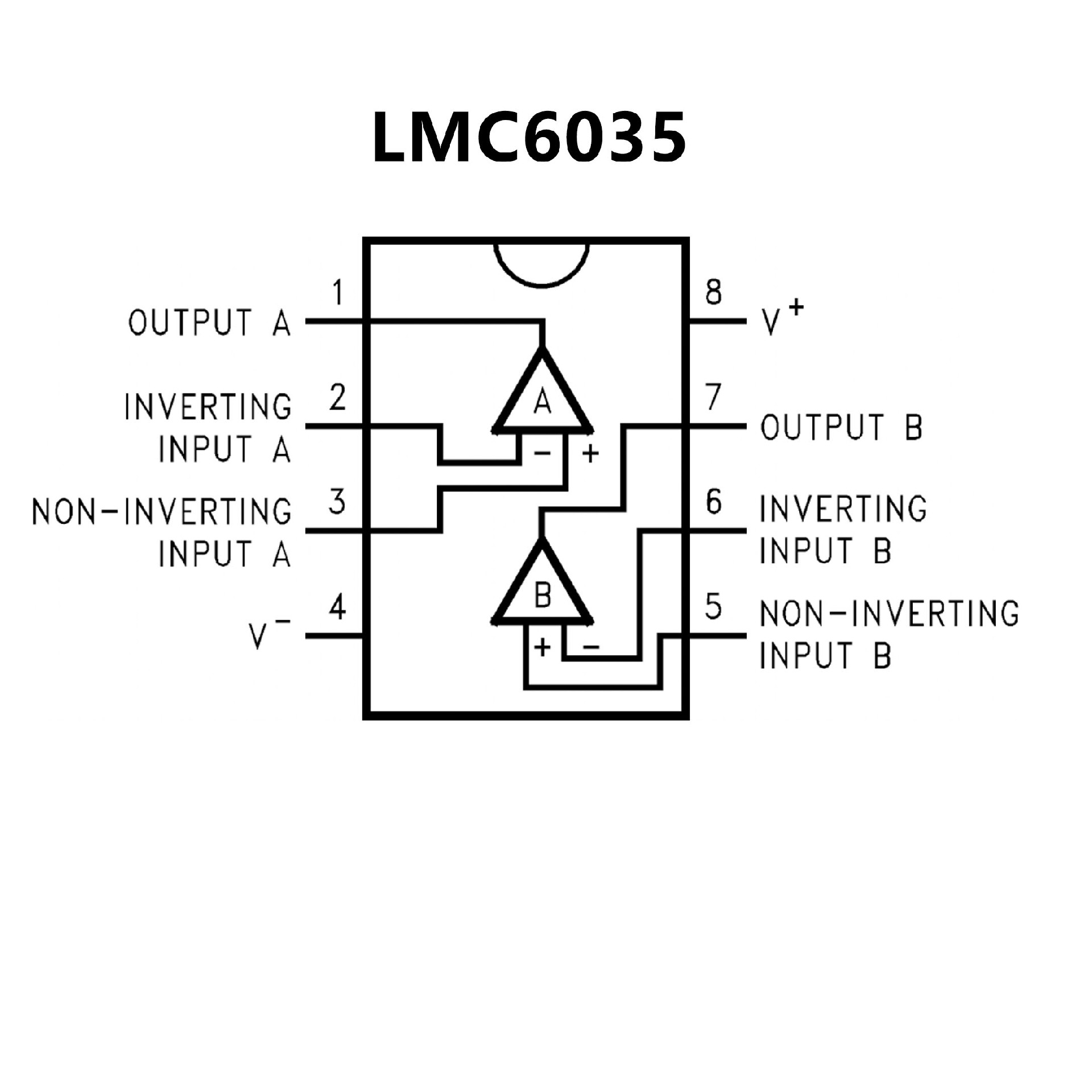

• LMC6035 in DSBGA Package
• Ensured 2.7V, 3V, 5V and 15V Performance
• Specified for 2 kΩ and 600Ω Loads
• Wide Operating Range: 2.0V to 15.5V
• Ultra Low Input Current: 20fA
• Rail-to-Rail Output Swing
@ 600Ω: 200mV from Either Rail at 2.7V
@ 100kΩ: 5mV from Either Rail at 2.7V
• High Voltage Gain: 126dB
• Wide Input Common-Mode Voltage Range
-0.1V to 2.3V at VS = 2.7V
• Low Distortion: 0.01% at 10kHz
• LMC6035 Dual LMC6036 Quad
• See AN-1112 (Literature Number SNVA009)
for DSBGA Considerations
• AEC-Q100 Grade 3 Qualified (LMC6035-Q1)
