● Voltage Operation: 1.8V to 4.2V

● Low On-Resistance: 4Ω (TYP) at 4.2V

● Low On-Resistance Flatness

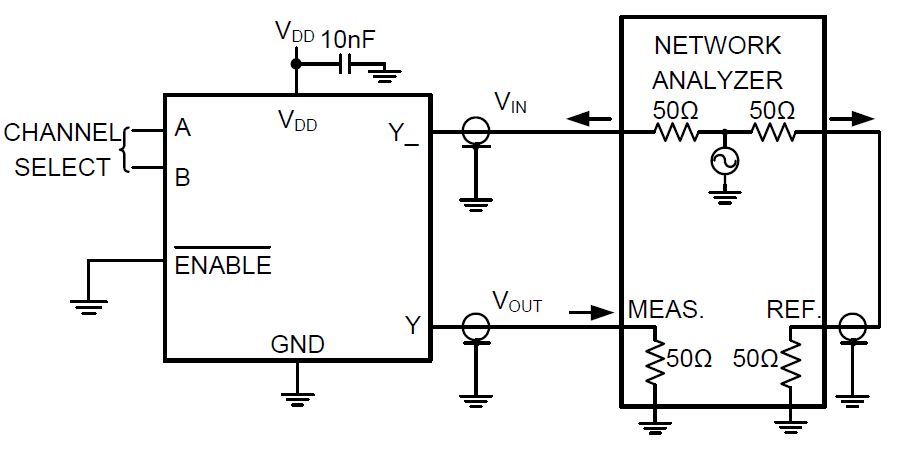

● -3dB Bandwidth: 150MHz

● Fast Switching Times (VDD = 4.2V)

   tON = 35ns

   tOFF = 9ns

● Rail-to-Rail Input and Output Operation

● TTL/CMOS Compatible

● Break-Before-Make Switching

● Extended Industrial Temperature Range: -40℃ to +85℃

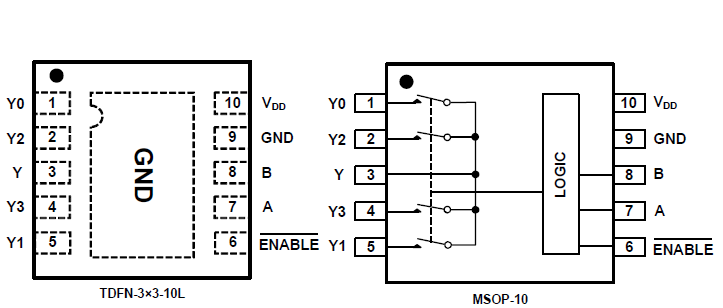

● Available in Green TDFN-3×3-10L and MSOP-10 Packages

The SGM48780 is a high-speed, low-voltage, low on-resistance, CMOS analog multiplexer/switch that can be configured as a 4:1 multiplexer. It operates from a single 1.8V to 4.2V power supply. Targeted applications include battery powered equipment that benefit from low RON (4Ω) and fast switching speeds (tON = 35ns, tOFF = 9ns).

The SGM48780 can handle rail-to-rail analog signals and is available in Green TDFN-3×3-10L and MSOP-10 packages.
