High-Speed I3C 1:2 Multiplexer/DeMultiplexer Switch with Signal Enable, PI3CSW12 Replace TMUX136.
PI3CSW12
PI3CSW12.pdf
PI3CSW12.pdfFEATURES
• VDD Operation at 2.5 V and 3.3 V
• VI/O Accepts Signals up to 5.5 V
• 1.8-V Compatible Control-Pin Inputs
• Low-Power Mode When OE Is Disabled (2µA)
• rON = 6Ω Maximum
• ΔrON = 0.2Ω Typical
• Cio(on) = 4pF Typical
• Support Over Voltage Protection
• Low Power Consumption (50µA Maximum)
• ESD Performance
• IO Pins
• 12KV HBM
• 1KV CDM
• +/-8KV contact Discharge (IEC61000-4-2)
• VDD, GND, S, OE Pins
• 4KV HBM
• 1KV CDM
• High Bandwidth (1.6GHz Typical)
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen- and Antimony-Free. “Green” Device (Note 3)
• For automotive applications requiring specific change control
• Packaging (Pb-free & Green): 10-contact, UQFN (ZUA10)

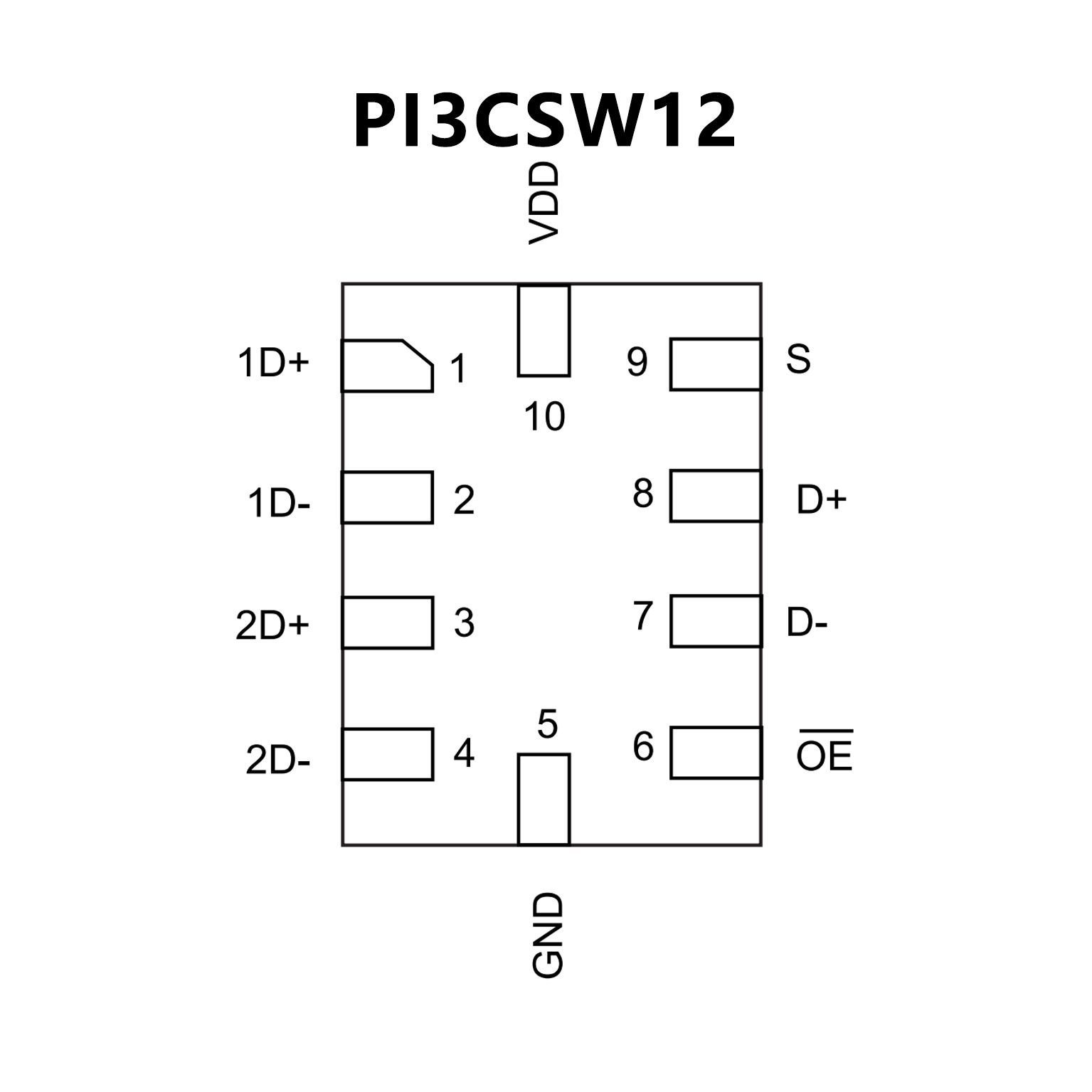

PIN CONFIGUTION
优势替代
FEATURES
• VCC range 2.3 V to 4.8 V
• High performance switch characteristics:
– Bandwidth (–3 dB): 6.1 GHz
– RON (typical): 5.7 Ω
– CON (typical): 1.6 pF
• Current consumption: 30 µA (typical)
• Special features:
– IOFF protection prevents current leakage in
Powered-Down state
– 1.8-V compatible control inputs (SEL, EN)
• Flow-through pinout simplifies PCB layout
• Compatible with high-speed I3C signals
• ESD performance:
– 5-kV Human Body Model (A114B, Class II)
– 1-kV Charged-Device Model (C101)
• Compact 10-pin UQFN package
(1.5-mm × 2-mm, 0.5-mm pitch)

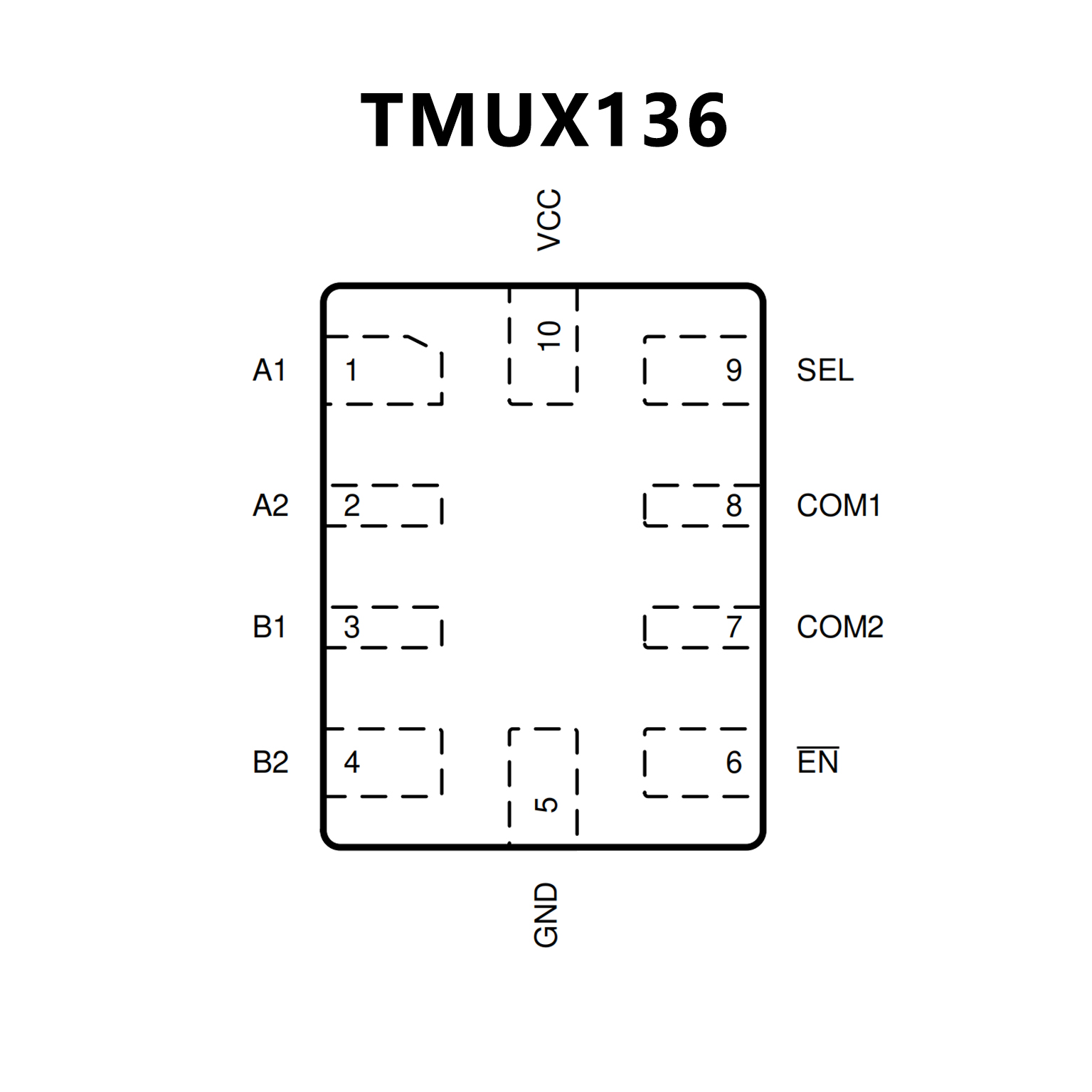

PIN CONFIGUTION
