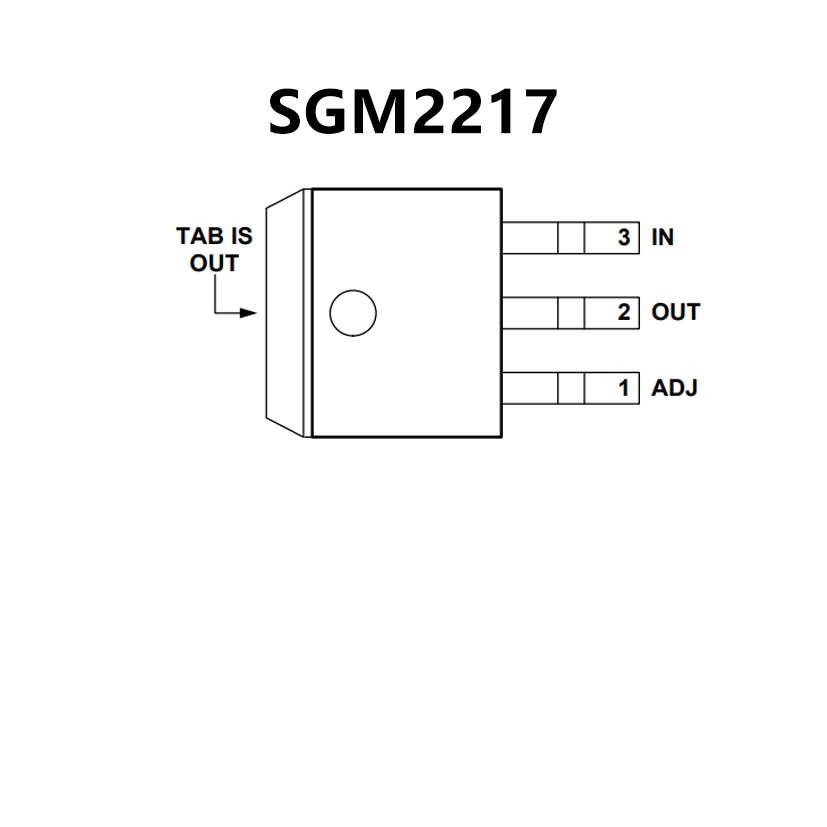

SGM2217-ADJ.pdf• Wide Input Voltage Range: 2.8V to 30V
• Adjustable Output Voltage Range: 1.25V to 26V
• Fixed Output Voltages:
1.8V, 2.5V, 2.8V, 3.0V, 3.3V, 5.0V and 12V
• Maximum Output Current: 1.5A
• Low Dropout Voltage: 1.3V (TYP) at 1.5A
• Line Regulation: 0.04% (TYP)
• Load Regulation: 0.04% (TYP)
• Current Limiting and Thermal Protection
• Output Voltage is Stable with Ceramic Capacitor
• -40℃ to +125℃ Operating Temperature Range
• Available in Green TO-263-3A and TDFN-4×4-8L
Packages

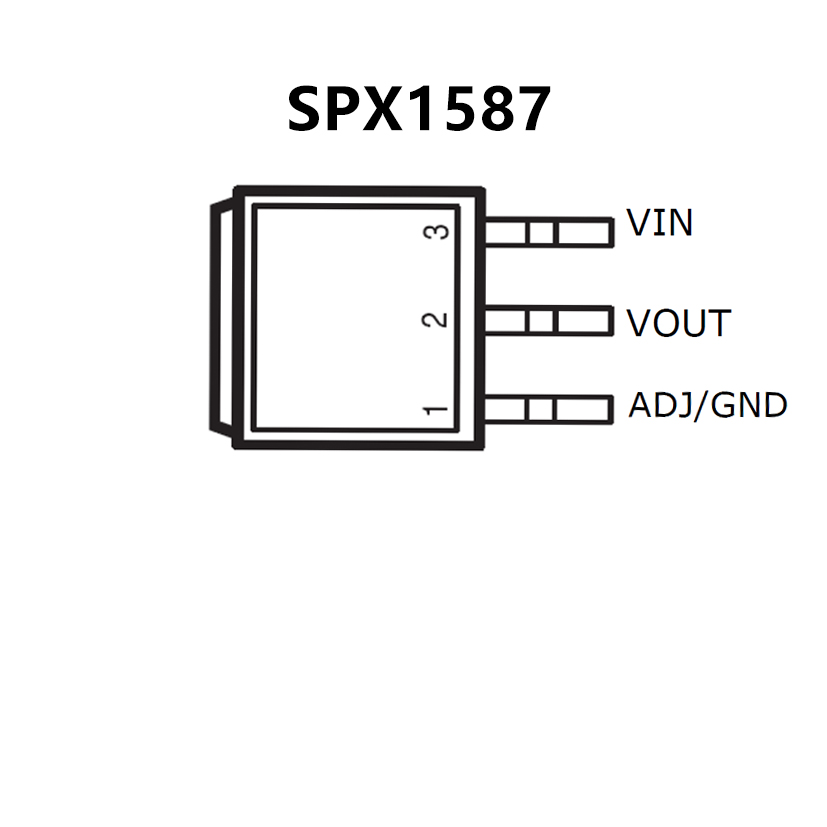

• Guaranteed 3A Output Current
• Three Terminal Adjustable or Fixed
1.5V, 2.5V, 3.3V and 5.0V
• Low Quiescent Current
• Low Dropout Voltage: 1.1V at 3A
• Line Regulation: 0.1%
• Load Regulation: 0.1%
• Stable with 10uF Ceramic Capacitor
• Over Current and Thermal Protection
• Similar to Industry Standard
LT1085/LT1585
• RoHS Compliant Lead Free 3-Pin
TO-220, TO-252 and TO-263 Packages
